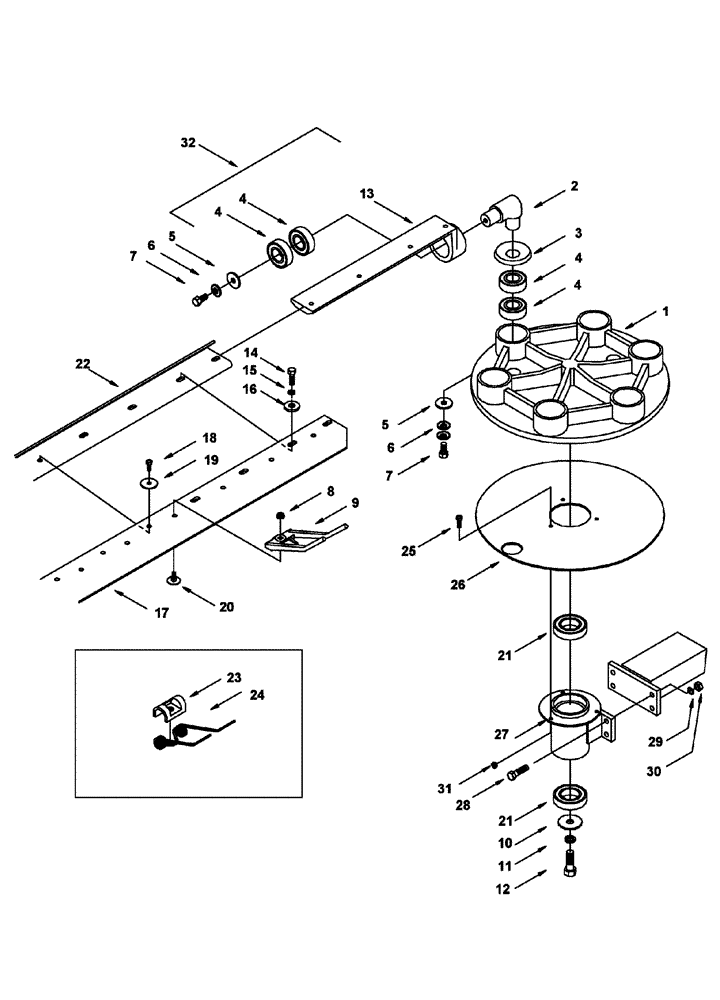

Запчасти Case IH 2015 (60.220.16) - ROTOR - IDLER END, RAKE-UP (60) - PRODUCT FEEDING

1

373985A1

ROTOR ASSY.

Includes Idler Rotor and Bearings

1шт.

2

373868A1

ELBOW

6шт.

3

373934A1

CAP

6шт.

4

84188095

BALL BEARING,25mm ID x 52mm OD x 15mm W

24шт.

5

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

12шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

(6 plus as required for shimming)

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

12шт.

8

9626558

FLANGE NUT,Flg, 1/4"-20

(32 Per Bar)

192шт.

9

373945A1

TOOTH

(32 Per Bar)

192шт.

10

374632A1

WASHER

2 x 17/32 x 3/16 in

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

13

374194A1

ARM

ARM, Idler

6шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

48шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

48шт.

16

495-81002

WASHER,3/8"

48шт.

17

373948A1

BELT,101.6 mm W x 3870.3 mm L

Finger Bar

6шт.

18

377773A1

SCREW,Hex, #14 x 19mm

(25 Per Bar)

150шт.

19

374327A1

WASHER

(25 Per Bar)

150шт.

20

377386A1

BOLT

1/4 x 3/4, (32 Per Bar)

192шт.

21

374105A1

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

22

373930A1

BAR

Finger

6шт.

23

374175A1

RETAINER

Rake-Up Steel Tooth (32 Per Bar)

192шт.

24

374174A1

TOOTH

(32 Per Bar)

192шт.

25

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

26

87642418

PLATE

Cover

1шт.

27

373943A1

HOUSING

1шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

29

95-81077

WASHER,0.39" ID x 0.62" OD x 0.07" Thk

4шт.

30

425-106

NUT,3/8"-16, Cl 5

4шт.

31

9626558

FLANGE NUT,Flg, 1/4"-20

3шт.

32

374194A1

ARM

6шт.
