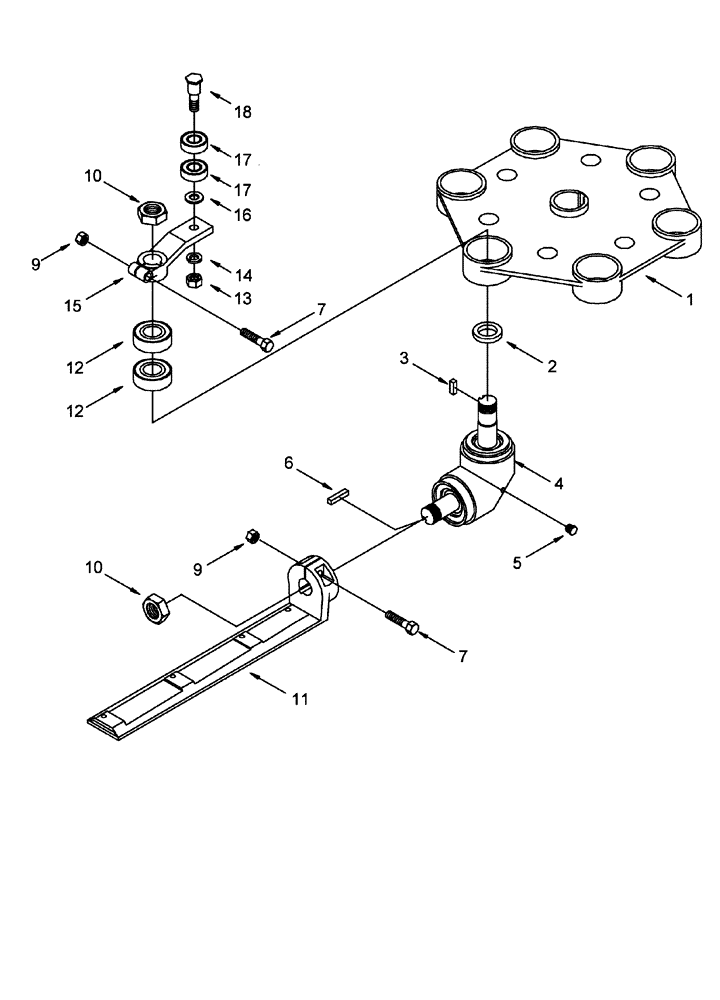

Запчасти Case IH 2015 (60.220.15) - ROTOR - DRIVE END, RAKE-UP (60) - PRODUCT FEEDING

1

373990A1

ROTOR ASSY.

(Includes Drive Rotor and Bearings)

1шт.

2

374541A1

BUSHING

#8 (1" HOLE, .25 THK) (1 per Gear Box)

6шт.

3

452779R1

KEY,1/4" Sq x 3/4", Par

6шт.

4

373887A1

GEARBOX ASSY

6шт.

5

374184A1

PLUG

Brass

12шт.

6

Q26

KEY,1/4" Sq x 1 1/4", Par

6шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

12шт.

9

231-4246

LOCK NUT,3/8"-16, GB

12шт.

10

425-1514

JAM NUT,Jam, 7/8"-14, G5

12шт.

11

373872A1

ARM

Finger Bar Drive (MI)

6шт.

12

84188095

BALL BEARING,25mm ID x 52mm OD x 15mm W

12шт.

13

425-117

NUT,7/16"-20, G5

6шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

15

373875A1

ARM

Follower

6шт.

16

495-11047

WASHER,7/16", SAE

6шт.

17

374104A1

BEARING

12шт.

18

373927A1

BOLT

Shoulder

6шт.
