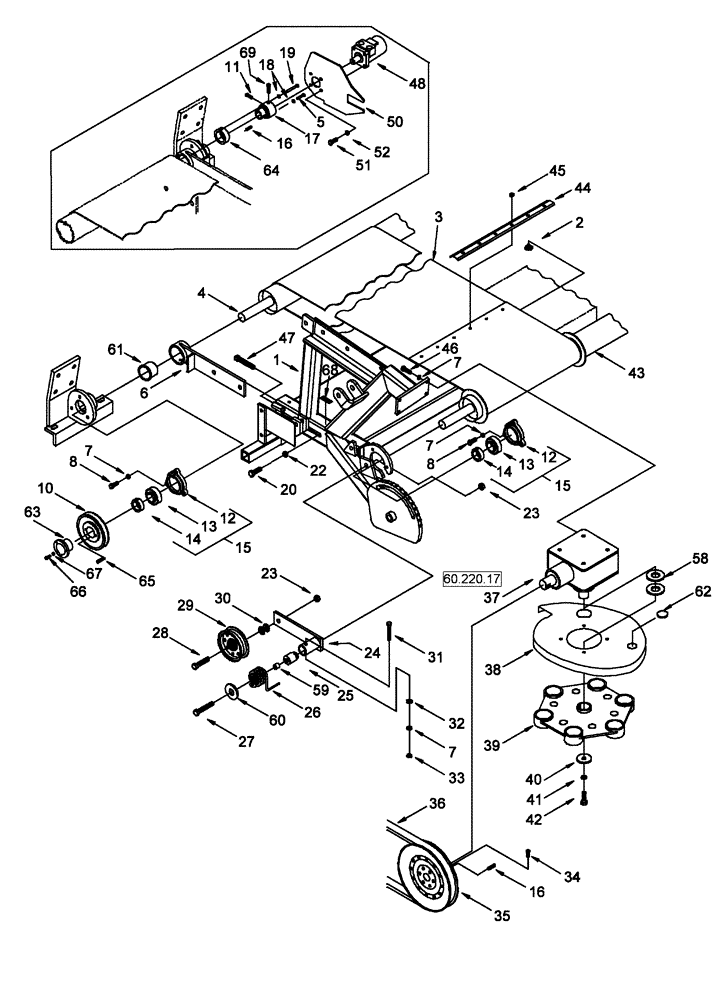

Запчасти Case IH 2015 (60.220.14) - DRAPER AND GEAR BOX DRIVE, RAKE-UP (60) - PRODUCT FEEDING

1

87675661

FRAME ASSY

Main, Inc. Decals

1шт.

2

377387A1

BOLT

1/4 x 1/2, 6 per belt section

1шт.

3

374098A1

BELT

Bolt together rear draper

8шт.

4

87462694

ROLLER,4302.5mm L

Rear, Rear Frame, SM/RU Std

1шт.

5

113-83

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

2шт.

6

87372130

BRACKET

Carrier/Adjust Tab, Right Hand

1шт.

6

87372133

BRACKET

Carrier, Left Hand

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

17шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

10

373909A1

PULLEY

Draper

1шт.

11

87616

SET SCREW,3/8" - 16 x 3/4"

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING, Bearing

4шт.

13

156011C92

BALL BEARING

4шт.

14

NSS

NOT SOLD SEPARAT

COLLAR, Locking

3шт.

15

373987A1

BEARING ASSY

4шт.

16

Q26

KEY,1/4" Sq x 1 1/4", Par

2шт.

17

87451996

COUPLING,25.43mm ID x 63.5mm OD x 73mm L

4 Bolt Holes

1шт.

18

492-11025

LOCK WASHER,1/4"

4шт.

19

87535228

BOLT

1/4 x 2-1/2

2шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

22

87532623

CONE WASHER

12 mm

4шт.

23

231-4148

NUT,1/2"-13, GB

2шт.

24

373905A1

ARM

Belt Tightener

1шт.

25

87372631

BUSHING

Idler Arm

1шт.

26

374134A1

TIGHTENER

Spring

1шт.

27

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

28

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

29

87635814

PULLEY,102mm OD

Tightener

1шт.

30

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

2шт.

31

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

32

495-21044

WASHER,3/8"

1шт.

33

425-106

NUT,3/8"-16, Cl 5

1шт.

34

87616

SET SCREW,3/8" - 16 x 3/4"

2шт.

35

373912A1

PULLEY

1шт.

36

374100A1

V-BELT

1шт.

37

373880A1

GEARBOX ASSY

1шт.

37

373880A1R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

37

373880A1C

CORE-GEARBOX

Return Number, Gearbox

1шт.

38

373867A1

PLATE

Scroll, Right Hand Drive

1шт.

39

373990A1

ROTOR ASSY.

Drive End

1шт.

40

374632A1

WASHER

2 x 17/32 x 3/16 in

1шт.

41

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

42

373979A1

BOLT

1/2" x 1-1/2"

1шт.

43

87462697

ROLLER

Front, Rear Frame

1шт.

44

373946A1

PROTECTOR

Edge, 1 per belt

1шт.

45

9626558

FLANGE NUT,Flg, 1/4"-20

6 per belt

1шт.

46

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

47

485-15048

SET SCREW,Sq Hd, 1/2"-13 x 3"

2шт.

48

374148A1

MOTOR, HYDRAULIC

74cc

1шт.

50

87642417

ARM

Torque, Hydraulic Motor

1шт.

51

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

52

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

58

448681A1

BUSHING

STAMPED 0

2шт.

58

448681A1

BUSHING

STAMPED 50

3шт.

58

448681A1

BUSHING

STAMPED 100

4шт.

58

448681A1

BUSHING

STAMPED 150

5шт.

58

448681A1

BUSHING

STAMPED 200

6шт.

59

440385A1

BUSHING

Locking

1шт.

60

495-11053

WASHER,1/2", SAE

1шт.

61

87372657

BUSHING

Flanged, Carrier Bracket

2шт.

62

87635817

PLUG

1-1/4"

1шт.

63

374138A1

BUSHING

1-1/4"

1шт.

64

374139A1

HUB

1шт.

65

389396A1

KEY

3/16 x 1/4 x 1-1/4

1шт.

66

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

67

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

68

87494153

DECAL

Draper Tension

1шт.

69

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

1шт.

70

376892A1

SEAL KIT

Orbit Motor Seal

1шт.
