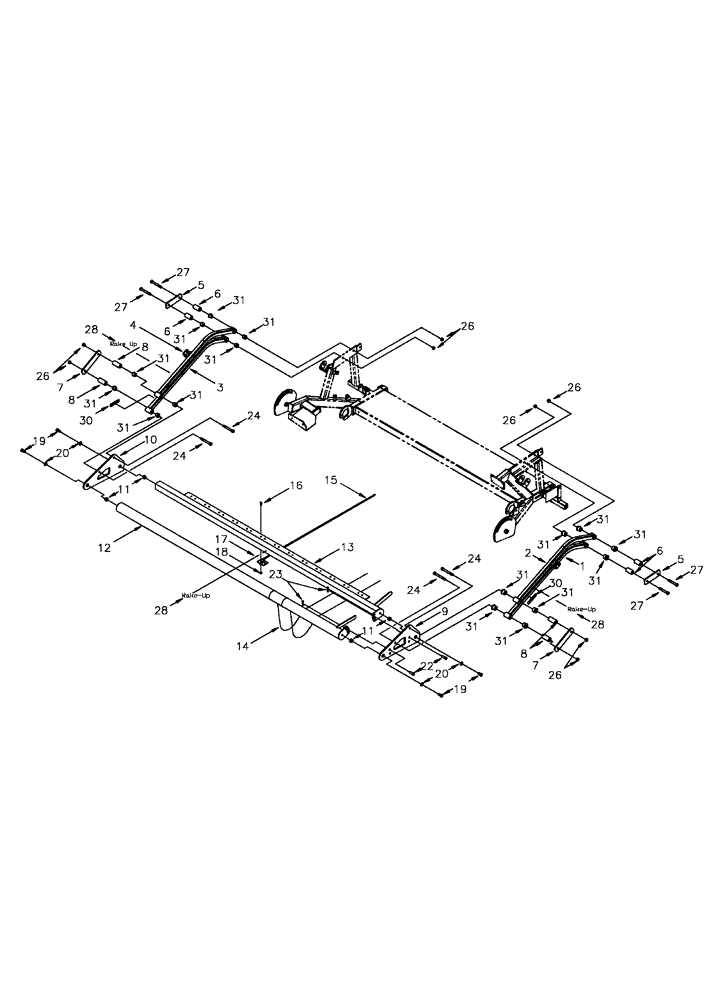

Запчасти Case IH 2015 (60.220.13) - HOLDDOWN ASSY, RAKE-UP (60) - PRODUCT FEEDING

1

87735716

ARM ASSY.

Lower Left Hand, Includes: Non-Verbal ISO Decal

1шт.

1

87494145

ARM ASSY.

Lower Left Hand, Includes: Verbal ANSI Decal

1шт.

2

87685329

ARM ASSY.

Upper, Left Hand

1шт.

3

87735717

ARM ASSY.

Lower Right Hand, Includes: Non-Verbal ISO Decal

1шт.

3

87494146

ARM ASSY.

Lower, Right Hand, Includes: Verbal ANSI Decal

1шт.

4

87685330

ARM ASSY.

Upper, Right Hand

1шт.

5

373953A1

PLATE

Rear, Hold Down

2шт.

6

87372162

BUSHING

Short, Hold Down

4шт.

7

373954A1

PLATE

Front, Hold Down

2шт.

8

87372163

BUSHING

Long, Hold Down

4шт.

9

87372165

PLATE

Side, Adjusting Side

1шт.

10

373966A1

PLATE

Side

1шт.

11

373941A1

BUSHING

Hold Down

4шт.

12

87722962

TUBE,4102.1 mm L

SPR Wire

1шт.

13

87372158

TUBE,4102 mm L

Fiber Rod TBG

1шт.

14

373949A1

WIRE

WIRE

13шт.

15

374172A1

ROD

Fiberglass, 3/8" x 48" Black

24шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

48шт.

17

87642415

CLIP

24шт.

18

483303R1

LOCK NUT

48шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

20

87532623

CONE WASHER

4шт.

22

127-210

CLEVIS PIN,1/2" x 1.530"

2шт.

23

591107R1

COTTER PIN

2шт.

24

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

4шт.

26

231-4148

NUT,1/2"-13, GB

8шт.

27

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

28

436099A1

DECAL

Rake-Up, 1-/8 Silver

2шт.

30

87735715

DECAL

WARNING, Safety Lock, Includes: Non-Verbal ISO Decal

2шт.

30

87749382

DECAL

WARNING, Safety Lock, Includes: Verbal ANSI Decal

2шт.

31

87372164

BUSHING,25.96mm ID x 32mm OD x 25.4mm L

Flange, Hold Down

16шт.
