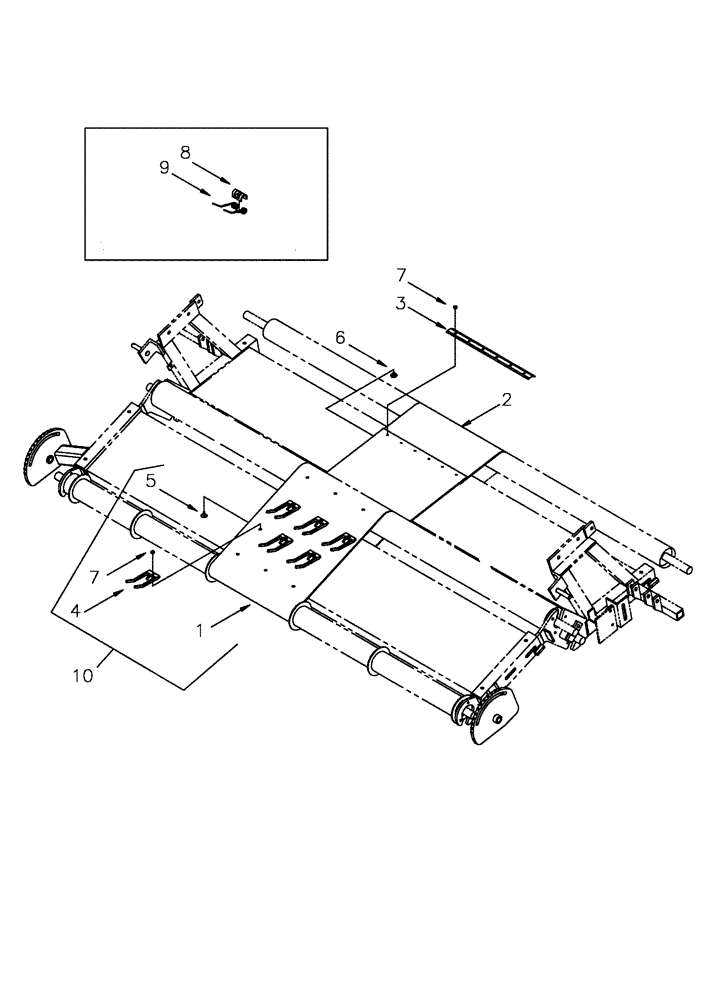

Запчасти Case IH 2015 (60.220.12) - DRAPER, SWATHMASTER (60) - PRODUCT FEEDING

1

374099A1

BELT

Front Draper, Without Teeth, Bolt together

8шт.

2

374098A1

BELT

Rear Draper, Bolt together

8шт.

3

373946A1

PROTECTOR

Edge, 1 per belt

16шт.

4

374025A1

FINGER

322шт.

5

377386A1

BOLT

1/4" x 3/4"

322шт.

6

377387A1

BOLT

6 per belt, 1/4" x 1/2"

96шт.

7

9626558

FLANGE NUT,Flg, 1/4"-20

6 per belt

418шт.

8

374175A1

RETAINER

Steel Tooth

322шт.

9

374176A1

TOOTH

Steel Finger

322шт.

10

374197A1

BELT

8шт.
