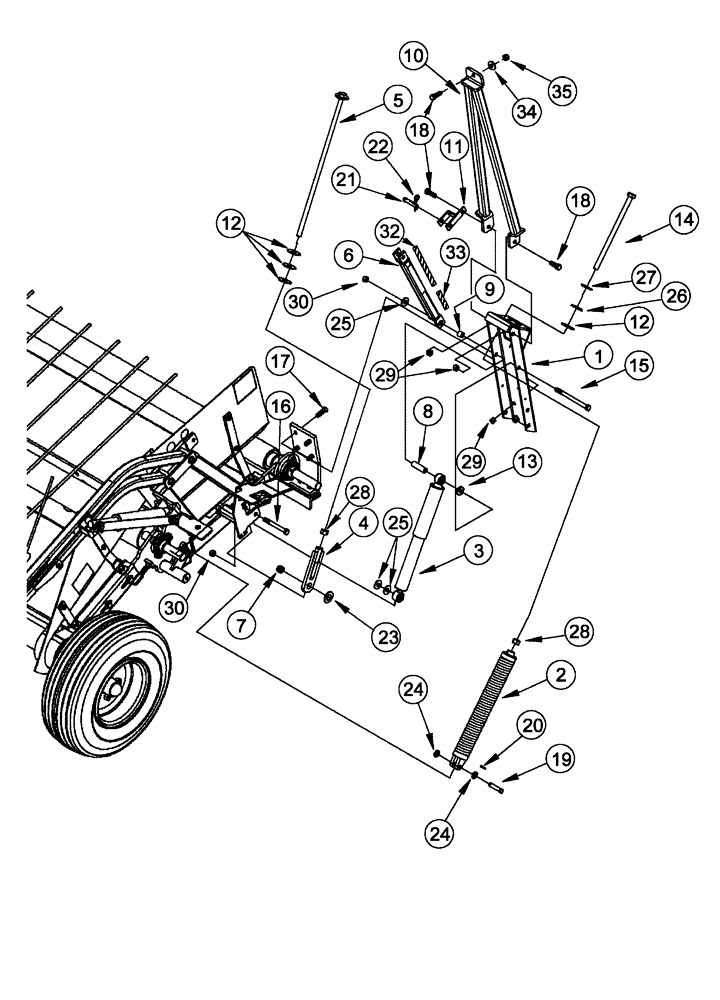

Запчасти Case IH 2015 (60.220.10) - SUSPENSION ASSEMBLY, SWATHMASTER (60) - PRODUCT FEEDING

1

87451998

CHANNEL

3/4 Bolt Holes

2шт.

2

87635823

SPRING

2шт.

87635742

PLUG

Top

2шт.

87635743

PLUG

Bottom

2шт.

3

374171A1

SHOCK ABSORBER

2шт.

4

87532555

BRACKET

Lifter

2шт.

5

373982A1

BOLT

2шт.

6

87452001

BRACE

Storage, SM Left Hand

1шт.

6

87452002

BRACE

Storage, SM Right Hand

1шт.

7

373940A1

BUSHING

Lifter Bracket

2шт.

8

87408990

SPACER

Shock Mount

2шт.

9

373963A1

BUSHING

Stiff Arm

2шт.

10

374079A1

BRACE

Header, Right Hand

1шт.

10

374078A1

BRACE

Header, Left Hand

1шт.

11

373907A1

BRACE

Clevis, Stiff Arm Header Mounting

2шт.

12

373938A1

STOP

8шт.

13

374626A1

WASHER

1-1/4 x 17/32 x 1/4

2шт.

14

87303012

BOLT,Hex, 5/8" - 11 x 14", Gr 5

5/8

2шт.

15

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

2шт.

16

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

2шт.

17

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

18

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

19

27-8231

CLEVIS PIN,1/2" x 2 5/16"

2шт.

20

87673

COTTER PIN,1/8" x 1 3/4"

2шт.

21

87532621

PIN

1/2" x 2"

2шт.

22

87532622

PIN

Grip Clip, 1/8" x 2-9/16"

2шт.

23

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

24

495-11053

WASHER,1/2", SAE

4шт.

25

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

6шт.

26

495-21069

WASHER,5/8"

2шт.

27

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

28

425-1010

NUT,5/8"-11, G5

4шт.

29

231-5348

FLANGE NUT,Flg, 1/2"-13

14шт.

30

231-5348

FLANGE NUT,Flg, 1/2"-13

4шт.

32

87452007

DECAL

Notification, Yellow, Large

4шт.

33

87452006

DECAL

Notification, Yellow, Small

4шт.

34

87532623

CONE WASHER

2шт.

35

425-108

NUT,1/2" - 13, Gr 5

2шт.
