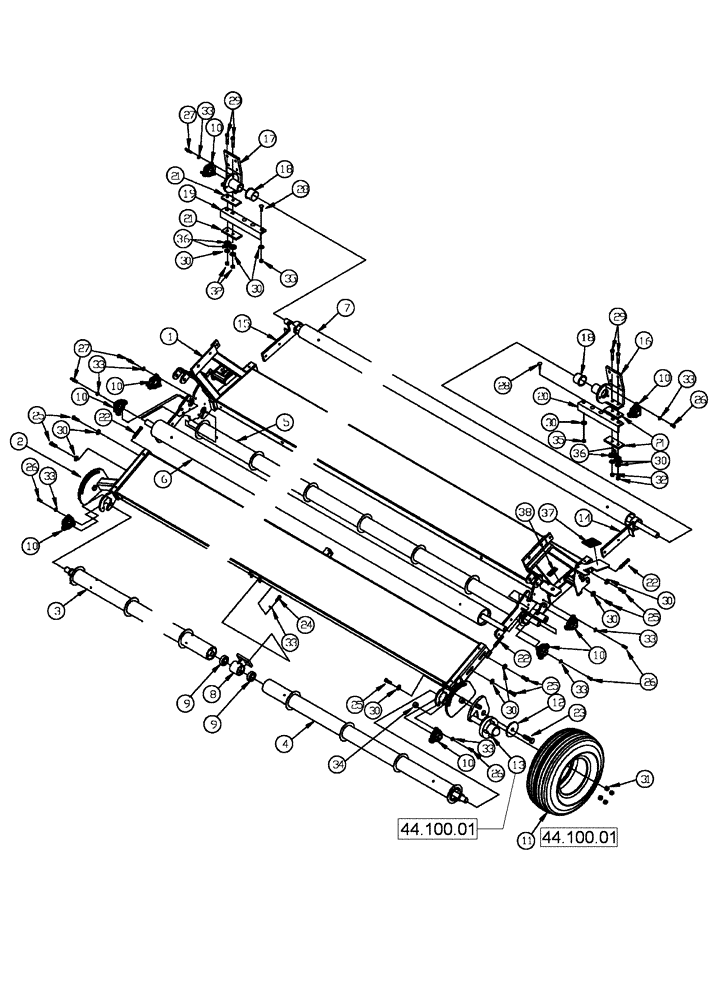

Запчасти Case IH 2015 (60.220.09) - ROLLER, TIRE FRAME ASSY, SWATHMASTER (60) - PRODUCT FEEDING

1

87494149

FRAME ASSY

Rear, Inc. Decals

1шт.

2

87372555

FRAME

Front

1шт.

3

87462703

ROLLER

Front Frame, SM Std

1шт.

4

87462702

ROLLER

Front Frame, SM Std, Short

1шт.

5

87462697

ROLLER

Front, Rear Frame, AM/RU Std

1шт.

6

87462700

ROLLER,4180mm L

Rear, Front Frame, SM Std

1шт.

7

87462694

ROLLER,4302.5mm L

Rear, Rear Frame, SM/RU Std

1шт.

8

373997A1

BEARING HOUSING

Front Roller Bearingg

1шт.

9

156011C92

BALL BEARING

62 mm OD

2шт.

10

373987A1

BEARING ASSY

Roller

8шт.

10

156011C92

BALL BEARING

62 mm OD

8шт.

11

NSS

NOT SOLD SEPARAT

TIRE AND WHEEL

2шт.

12

87642414

PLATE

Retainer, Wheel

2шт.

13

87372146

HUB

Left Hand

1шт.

13

87372148

HUB

Right Hand

1шт.

14

87372133

BRACKET

Carrier, Left Hand

1шт.

15

87372130

BRACKET

Carrier, Right Hand

1шт.

16

87372143

BRACKET

Mounting, Left Hand (below cutter bar)

1шт.

17

87372144

BRACKET

Mounting, Right Hand (below cutter bar)

1шт.

18

87372657

BUSHING

Flanged, Carrier Bracket

2шт.

19

87642412

ANGLE

Right Hand (below cutter bar)

1шт.

20

87642400

ANGLE

Left Hand (below cutter bar)

1шт.

21

413630A1

SHIM

Mounting Bracket (below cutter bar)

4шт.

22

485-15048

SET SCREW,Sq Hd, 1/2"-13 x 3"

4шт.

23

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

25

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

10шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

15шт.

27

386986A1

STUD

3/8" x 1" x 3/4"

9шт.

28

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

6шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

30

87532623

CONE WASHER

12 mm

20шт.

31

374570A1

WHEEL NUT

Wheel, 1/2" NF x 90"

8шт.

32

425-108

NUT,1/2" - 13, Gr 5

10шт.

33

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

28шт.

34

280375

NUT,3/4"-10, GC

2шт.

35

280717

NUT,7/16"-14, G5

6шт.

36

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

4шт.

37

84011345

DECAL

WARNING, Shield Open, ISO Non-Verbal

1шт.

37

87532571

DECAL

WARNING Shield Open, ANSI Verbal

1шт.

38

87494153

DECAL

Draper Tension

2шт.
