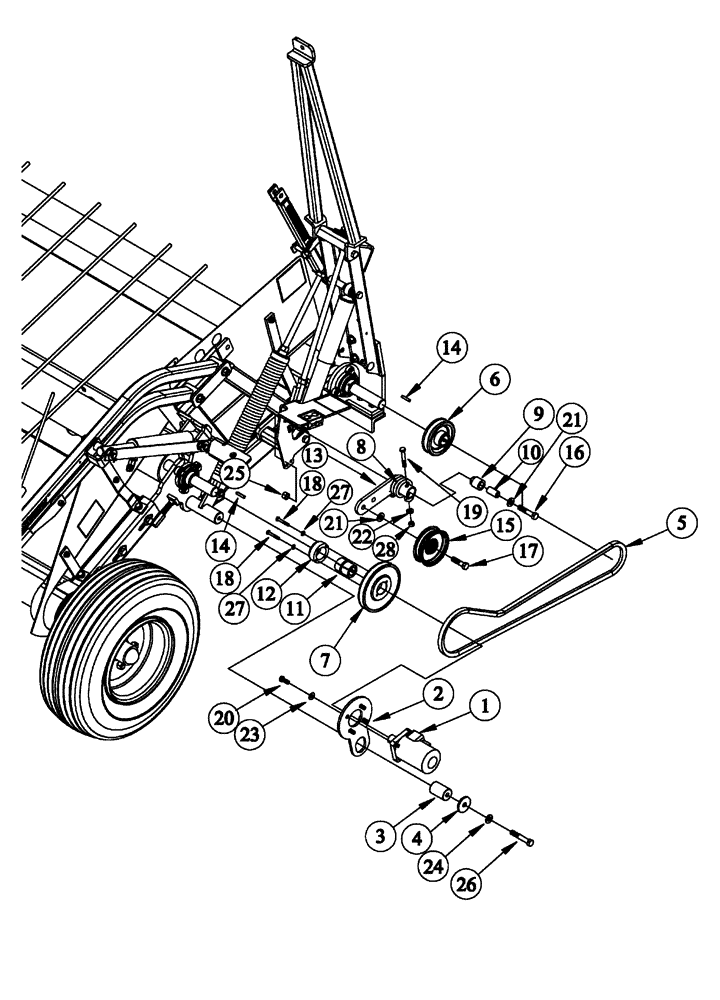

Запчасти Case IH 2015 (60.220.08) - DRIVE ASSY, SWATHMASTER (60) - PRODUCT FEEDING

1

87532570

MOTOR

Orbit, 97cc

1шт.

376892A1

SEAL KIT

Seal, Orbit Motor Includes all internal seals

1шт.

2

87372624

ARM ASSY.

Torque, SM Std

1шт.

3

87372628

ARM ASSY.

Extension

1шт.

4

374632A1

WASHER

2 X 17/32 X 3/16, PLATE

1шт.

5

87372654

V-BELT

Super Blue Ribbon, BP66

1шт.

6

87532557

PULLEY

A/B Groove, 4-1/2, Include Set Screw 80428

1шт.

7

87635816

PULLEY

Black

1шт.

8

374133A1

TIGHTENER

Spring, STD (PEPLH)

1шт.

9

87372631

BUSHING

Idler Arm

1шт.

10

440385A1

BUSHING

Locking

1шт.

11

87372553

COUPLING,25.4mm ID x 41.47mm OD x 56.4mm L

Sheave

1шт.

12

87372637

SLEEVE ASSY

Dual CPLR

1шт.

13

87372619

TENSIONER

Arm - SM

1шт.

14

Q26

KEY,1/4" Sq x 1 1/4", Par

2шт.

15

87635814

PULLEY,102mm OD

Tightener

1шт.

16

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

17

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

18

113-57

BOLT,Hex, 1/4" - 20 x 2", Gr 5, Full Thd

2шт.

19

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

21

495-11053

WASHER,1/2", SAE

1шт.

22

495-21044

WASHER,3/8"

1шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

25

231-4148

NUT,1/2"-13, GB

1шт.

26

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

28

231-4246

LOCK NUT,3/8"-16, GB

1шт.
