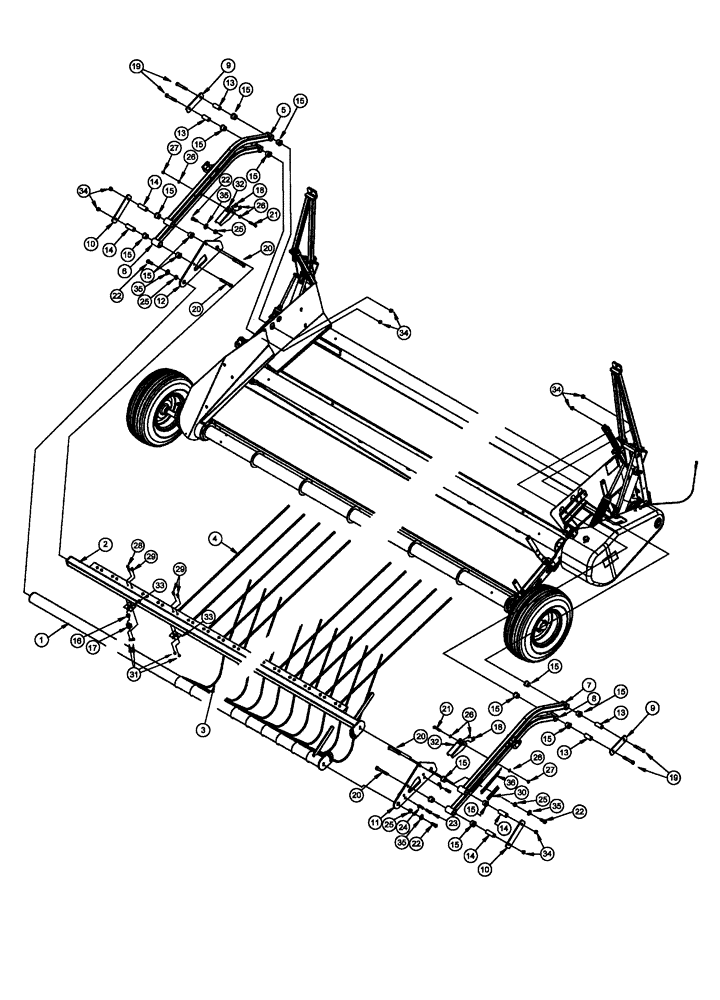

Запчасти Case IH 2015 (60.220.07) - HOLDDOWN ASSY, SWATHMASTER (60) - PRODUCT FEEDING

1

87372565

TUBE,3883 mm L

Wire Tube

1шт.

1

374027A1

TUBE,3889.4 mm Length

LH

1шт.

2

87372569

TUBE,3889 mm L

Fiber Rod

1шт.

3

373949A1

WIRE

WIRE Hold down

12шт.

4

374172A1

ROD

Fibergass, 3/8" x 48" Black

23шт.

5

87685330

ARM ASSY.

Upper, SM Right Hand

1шт.

6

87735717

ARM ASSY.

Lower Right Hand, Includes: Non-Verbal ISO Decal

1шт.

6

87494146

ARM ASSY.

Lower, Right Hand, Includes: Verbal ANSI Decal

1шт.

7

87685329

ARM ASSY.

Upper, SM Left Hand

1шт.

8

87735716

ARM ASSY.

Lower Left Hand, Includes: Non-Verbal ISO Decal

1шт.

8

87494145

ARM ASSY.

Lower Left Hand, Includes: Verbal ANSI Decal

1шт.

9

373953A1

PLATE

Rear, Hold Down

2шт.

10

373954A1

PLATE

Front, Hold Down

2шт.

11

87372165

PLATE

Side, Adjusting Side

1шт.

12

373966A1

PLATE

Side

1шт.

13

87372162

BUSHING

Short, Hold Down

4шт.

14

87372163

BUSHING

Long, Hold Down

4шт.

15

87372164

BUSHING,25.96mm ID x 32mm OD x 25.4mm L

Flange, Hold Down

16шт.

16

87372633

SPACER

Steel LIne

5шт.

17

413632A1

CLAMP

3/8" Pipe Clamp Drilled

5шт.

18

374328A1

WASHER

Neoprene 3/8" 1.1. x .06

2шт.

19

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

20

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

4шт.

21

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

23

127-210

CLEVIS PIN,1/2" x 1.530"

2шт.

24

591107R1

COTTER PIN

1/8 x 2-9/16 Hitch

2шт.

25

373941A1

BUSHING

Holddown SER.II

4шт.

26

495-21044

WASHER,3/8"

6шт.

27

231-4246

LOCK NUT,3/8"-16, GB

2шт.

28

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

41шт.

30

87735715

DECAL

WARNING, Safety Lock, Includes: Non-Verbal ISO Decal

2шт.

30

87749382

DECAL

WARNING, Safety Lock, Includes: Verbal ANSI Decal

2шт.

31

483303R1

LOCK NUT

5/16"

46шт.

32

448679A1

LOCK

Safe, Hold Down

2шт.

33

87642415

CLIP

Fiberglass Rod

23шт.

34

231-4148

NUT,1/2"-13, GB

8шт.

35

87532623

CONE WASHER

12 mm

4шт.

36

436098A1

DECAL

Swathmaster Silver

2шт.
