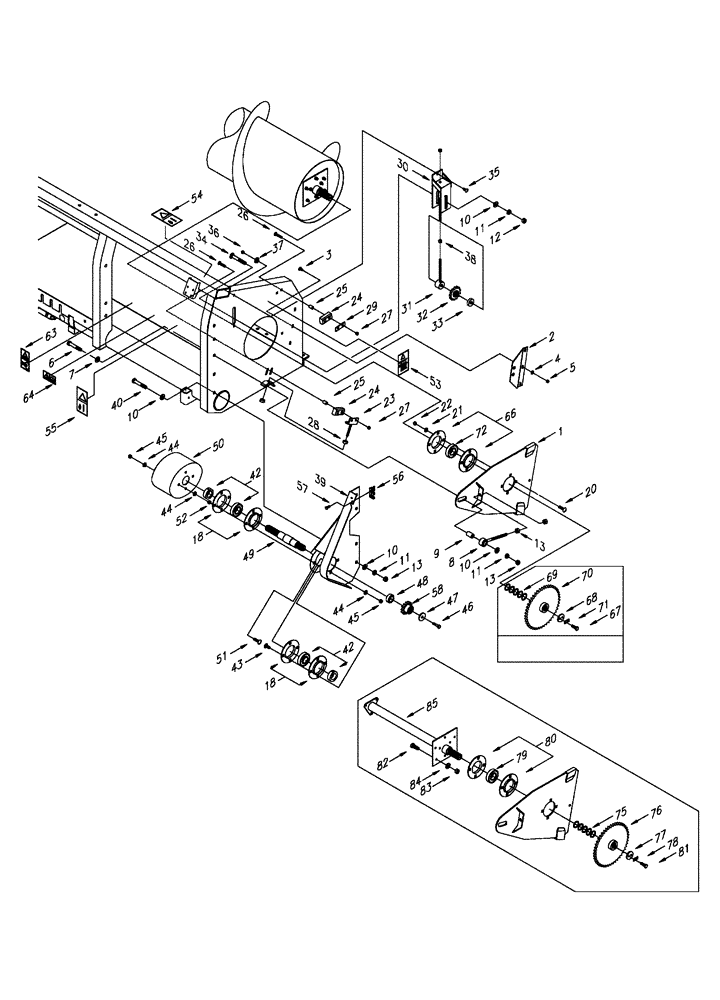

Запчасти Case IH 2015 (60.220.02) - AUGER DRIVE & SUPPORT - RIGHT HAND (60) - PRODUCT FEEDING

1

374036A1

MOUNTING PARTS

Right Hand

1шт.

2

374035A1

PLATE

1шт.

3

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

3шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

6

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

1шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

8

374041A1

ROD

1шт.

9

374077A1

SPACER

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

11шт.

11

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

6шт.

12

425-1010

NUT,5/8"-11, G5

1шт.

13

829-1416

NUT,M16, Cl 10

7шт.

18

374131A1

FLANGED BEARING

Bearing, Set of 2

3шт.

20

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

4шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

23

374032A1

ADJUSTER

Lower Limit

1шт.

24

374068A1

STOP

2шт.

25

374034A1

BUSHING

4шт.

26

811-10050

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

4шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

28

829-1416

NUT,M16, Cl 10

2шт.

29

87642421

PLATE

1шт.

30

374047A1

BRACKET

1шт.

31

374048A1

EYEBOLT

BOLT, EYE

1шт.

32

374137A1

SPROCKET

1шт.

33

374049A1

SPACER

1шт.

34

280461

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

1шт.

35

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

1шт.

36

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

37

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

38

829-1412

NUT,M12, Cl 10.9

2шт.

39

374050A1

BRACKET

1шт.

40

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

4шт.

42

374129A1

BEARING ASSY

Includes: Collar

2шт.

43

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

4шт.

44

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

45

832-10412

NUT,M12 x 1.75, Cl 8

8шт.

46

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

47

374632A1

WASHER

2" x 17/32" x 3/16"

1шт.

48

374076A1

SPACER

1шт.

49

374044A1

JACKSHAFT

1шт.

50

374063A1

SHIELD

1шт.

51

811-12050

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8

4шт.

52

829-1412

NUT,M12, Cl 10.9

4шт.

53

144373A1

WARNING DECAL

Do Not Open, Chain Entanglement, ISO Non-Verbal

1шт.

53

87532571

DECAL

WARNING Shield Open, ANSI Verbal

1шт.

55

293849A1

DECAL

2шт.

56

389388A1

STOP LOCK

1шт.

57

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

58

REF

INSTRUCTION

See Figure 60.220.05, Ref. 6

1шт.

63

237175A1

DECAL

DANGER Keep Shields In Place, ISO Non-Verbal

1шт.

63

80672C1

DECAL

Danger: Rotating Driveline, 3 Panel

1шт.

64

374332A1

DECAL

Read Manual, 2 Panel

2шт.

64

87753071

DECAL

Warning: Read Manual, 3 Panel

2шт.

66

86989924

FLANGE

1шт.

67

811-10050

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

68

87415830

THRUST WASHER

1шт.

69

87415827

SHIM

1шт.

70

435931A1

SPROCKET

54T, W/Key Bore

1шт.

71

87415831

LOCKING PLATE

1шт.

72

86989921

BEARING

1шт.

73

435934A1

WASHER

1шт.

74

NSS

NOT SOLD SEPARAT

Auger Drive Upgrade Kit, Order Components Ref. 75 - 85

1шт.

75

87415827

SHIM

5шт.

76

87415829

SPROCKET

54T, W/Spline Bore

1шт.

77

87415830

THRUST WASHER

1шт.

78

87415831

LOCKING PLATE

1шт.

79

86989921

BEARING

45 mm Bore

1шт.

80

86989924

FLANGE

Pair

1шт.

81

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

82

413666A1

BOLT

M12 x 30; 10.9

5шт.

83

832-44612

FLANGE NUT,M12 x 1.75, Flg, Cl 10

5шт.

84

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

85

86989913

SHAFT

W/Key Bore

1шт.

85

87415828

DRIVE SHAFT

W/Spline Bore

1шт.

86

436091A1

KIT

Taper Lock Bushing, Incl 87 - 89

1шт.

87

NSS

NOT SOLD SEPARAT

Stepped Key, 3/8" x 1-15/16"

1шт.

88

NSS

NOT SOLD SEPARAT

Split Taper Bushing

1шт.

89

NSS

NOT SOLD SEPARAT

Bolt, 5/16" x 1"

3шт.
