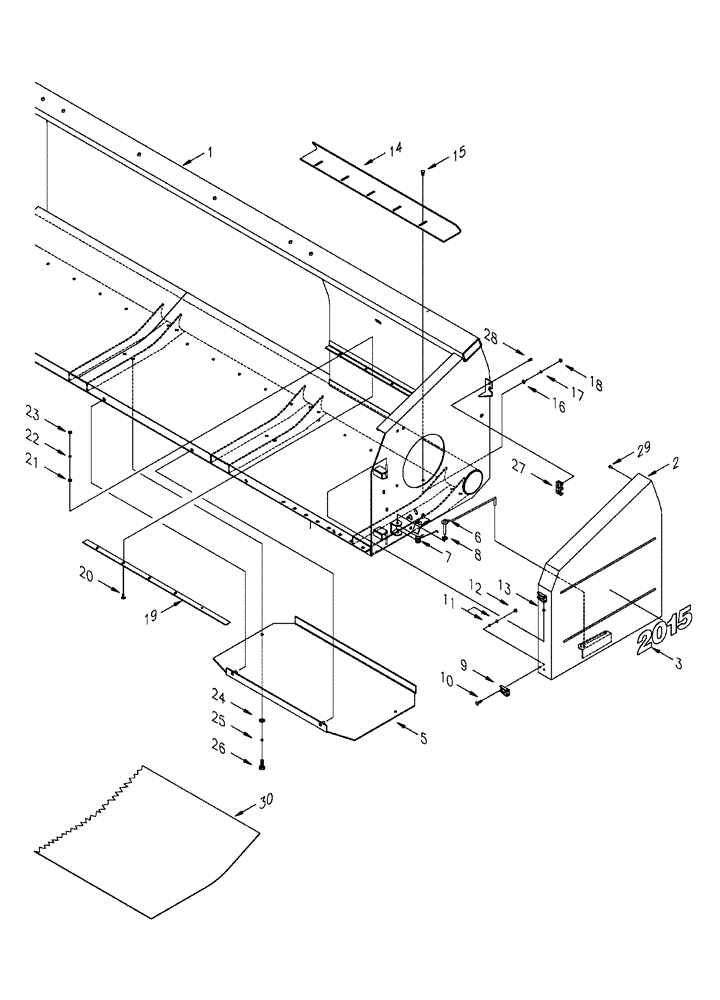

Запчасти Case IH 2015 (60.220.01) - FRAME (60) - PRODUCT FEEDING

1

NS

NOT SERVICED

FRAME

1шт.

2

374051A1

SHIELD

LH, Incl 3, 2006 And Earlier

1шт.

2

87699656

SHIELD

LH, Incl 3, 2007 And After

1шт.

2

374052A1

SHIELD

RH, Incl 3, 2006 And Earlier

1шт.

2

87699655

SHIELD

RH, Incl 3, 2007 And After

1шт.

3

348967A1

DECAL

2015

2шт.

5

374067A1

PLATE

2шт.

6

374054A1

LEVER

LH

1шт.

6

374053A1

LEVER

RH

1шт.

7

374055A1

SPRING

LH

1шт.

7

374056A1

SPRING

RH

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

87642422

HINGE

Shield

4шт.

10

611-6020

CARRIAGE BOLT,M6 x 20mm, Class 4.6

8шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

11

892-11006

LOCK WASHER,M6

8шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

14

374059A1

BAR

LH Lower

1шт.

14

374058A1

BAR

RH Lower

1шт.

15

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

10шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

17

892-11008

LOCK WASHER,8mm ID

10шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

19

374075A1

ANGLE

2шт.

20

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

10шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

22

892-11008

LOCK WASHER,8mm ID

10шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

25

892-11012

LOCK WASHER,M12

4шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4шт.

27

87432431

STOP LOCK

Latch, LH

1шт.

27

87432432

STOP LOCK

Latch, RH (Not Illustrated)

1шт.

28

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

29

414538A1

BUMPER

4шт.

30

407924A1

SHEET

Header Bottom Repair

1шт.
