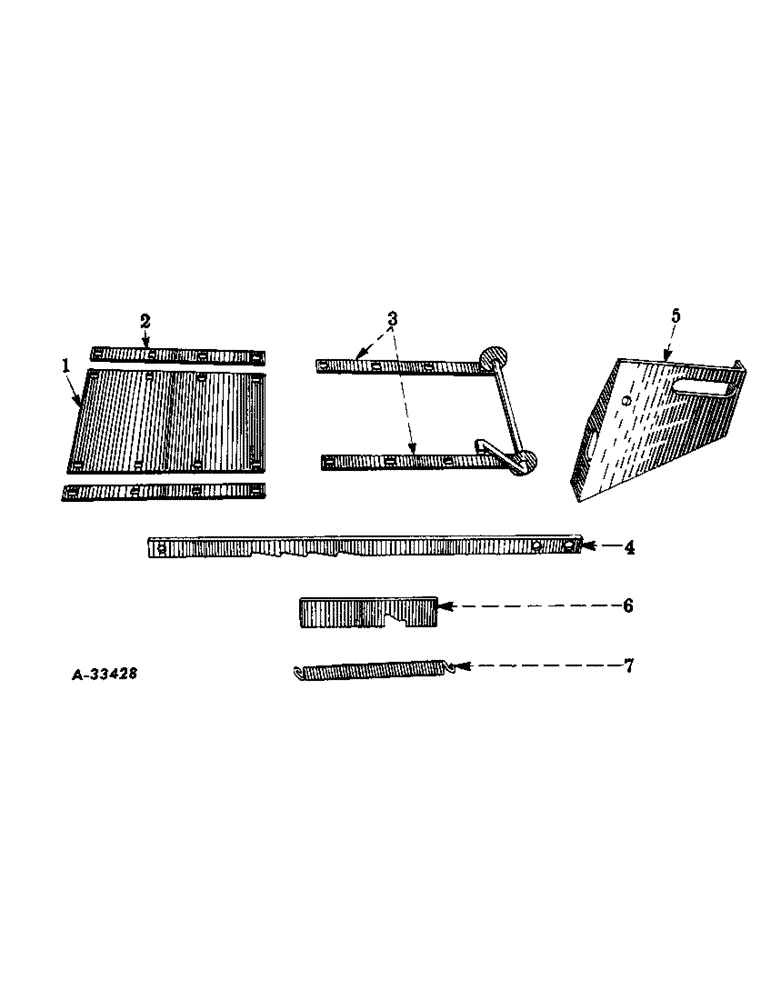

Запчасти Case IH 2-PR (101) - LOAD LEVELER ATTACHMENT (88) - ACCESSORIES

BUNDLE OF - LOAD LEVELER, assembly (Ordering number 578586R92), (YR. 53-) This bundle contains all parts listed below:

1шт.

1

577186R2

DEFLECTOR, load leveler (YR. 53-)

1шт.

2

577184R1

STRAP, clamping, load leveler deflector (YR. 53-59)

2шт.

2

587973R1

STRAP, clamping, load leveler deflector (YR. 60-)

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

8шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

577618R92

FRAME, deflector, load leveler, w/crank, strap and washer (Welded assembly) (YR. 53-59)

1шт.

587972R91

FRAME, deflector, load leveler (Welded assembly) (YR. 60-)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

3шт.

4

578528R91

BAR, load leveler, w/stop (Welded assembly) (YR. 53-)

1шт.

5

578530R1

BRACKET, load leveler bar (YR. 53-)

1шт.

6

578529R1

LOCK, load leveler bar (YR. 53-)

2шт.

7

61087D

SPRING, load leveler (YR. 53-)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

17739D

PIN, std-hd., dld., 3/8 x 5/8"

1шт.

561277R1

SPACER,5/8" Tube x 1/2"

load leveler bar stop (YR. 57-)

1шт.

17479R1

BOLT, mach., 3/8 x 1-1/2"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
