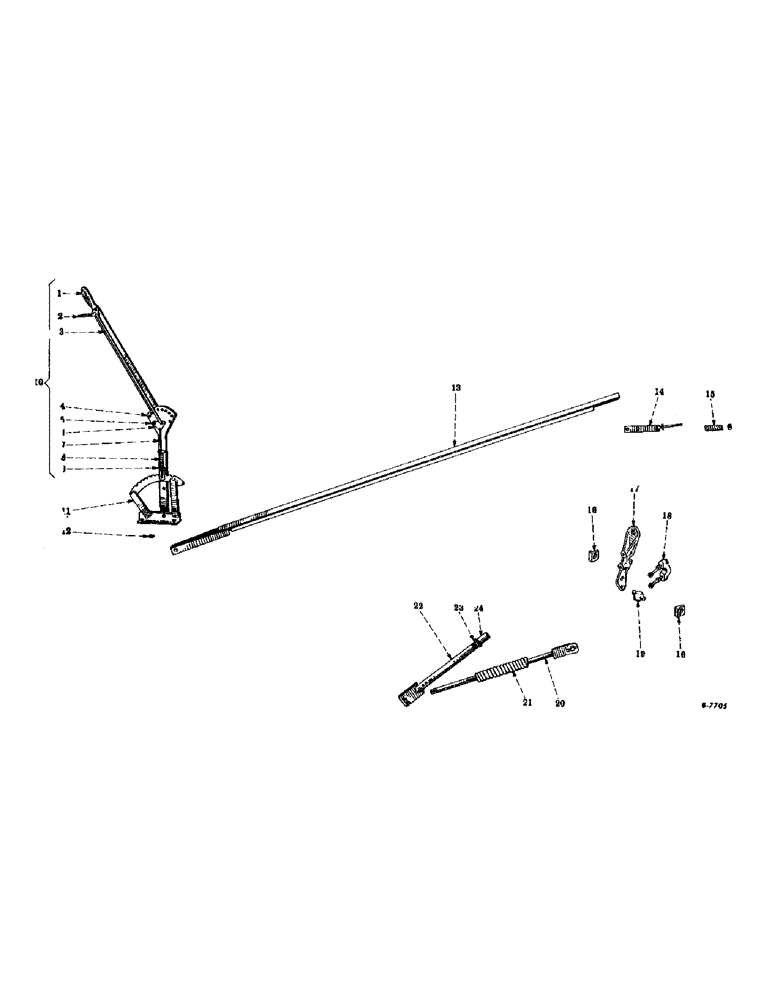

Запчасти Case IH 2-PR (098) - MANUAL LIFT ATTACHMENT, REGULARLY SUPPLIED WITH ALL MACHINES UNLESS OTHERWISE ORDERED (88) - ACCESSORIES

1

U18870

LEVER, tilting (YR. 53-)

1шт.

13270R1

BOLT, machine, 3/8-16NC x 1-1/4" (Upper bolt)

1шт.

13271R1

BOLT, machine, 7/16-14NC x 1-1/4" (Lower bolt)

1шт.

280136

NUT,3/8"-16, G8

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

2

H2309

HANDLE, tilting lever latch (YR. 53-)

1шт.

107173

RIVET, truss-hd., 1/4 x 3/4"

1шт.

3

U17703

ROD, detent, tilting lever (Long) (YR. 53-)

1шт.

4

U18872

EXTENSION, tilting lever, w/keeper and plate (Welded assembly) (YR. 53-)

1шт.

5

M73437

SPACER, tilting lever bell crank (YR. 53-)

1шт.

6

M74372

CRANK, bell, tilting lever (YR. 53)

1шт.

7

U17702

ROD, detent, tilting lever (Short) (YR. 53-)

1шт.

8

78A

BOLT

SPRING, locking, tilting lever (YR. 53-)

1шт.

9

U17043

LOCK, tilting lever (YR. 53-)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

W6652

WASHER

plain, 15/32 I.D. x 1" O.D. x no. 16 ga.

1шт.

10

U18779

LEVER, tilting, assembly (Includes ref. nos. 1, 2, 3, 4, 5, 6, 7, 8 and 9) (YR. 53-)

1шт.

11

UA16342

QUADRANT, tilting lever, w/angle and strap (Welded assembly) (YR. 53-)

1шт.

12

YA162

BUSHING, pivot, tilting lever (YR. 53-)

1шт.

13293R1

BOLT

machine, 1/2-13NC x 1-1/2"

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

U22058

ANGLE, lifting, tilting lever, w/link and stiffener (Welded assembly) (YR. 53-)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

280136

NUT,3/8"-16, G8

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

H2808

HEADED PIN,5/8" x 2"

PIN, std-hd., dld., 5/8 x 2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

UA17164

EYEBOLT, tilting lever lifting spring, w/strap and washer (Welded assembly) (YR. 53-)

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

PO10535

WASHER

plain, 17/32" I.D. x 1-1/4" O.D. x no. 11 ga.

1шт.

15

VC682

VALVE SPRING

SPRING, lifting, tilting lever (YR. 53-)

1шт.

16

578983R1

BLOCK, balance spring rocker arm ball (YR. 53-)

2шт.

17

578981R1

ARM, rocking, balance spring (YR. 53-)

1шт.

17721R1

SCREW, cap, regular-hd., 1/2-13NC x 4"

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

18

578982R1

CAP, balance spring rocker arm (YR. 53-)

1шт.

17699R1

BOLT,Hex, 1/2" - 13 x 3 3/4"

SCREW, cap, regular-hd., 1/2-13NC x 3-3/4"

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

19

2568K

BALL

balance spring rocker arm (YR. 53-)

1шт.

20

578979R91

ROD, balance spring, w/strap (Welded assembly) (YR. 53-)

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

PO19594

PIN

std-hd., dld., 3/4 x 1-1/2"

1шт.

615196R1

WASHER

plain, 29/32" I.D. x 1-3/4" O.D. x no. 11 ga.

2шт.

21

578988R1

SPRING, balance (YR. 53-)

1шт.

22

578976R91

TUBE, balance spring, w/strap (Welded assembly) (YR. 53-)

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

PO19594

PIN

std-hd., dld., 3/4 x 1-1/2"

1шт.

23

190361

LOCKING PLATE

LOCKNUT, balance spring tube (YR. 53-)

1шт.

24

579164R1

COUPLING, balance spring tube (YR. 53-)

1шт.
