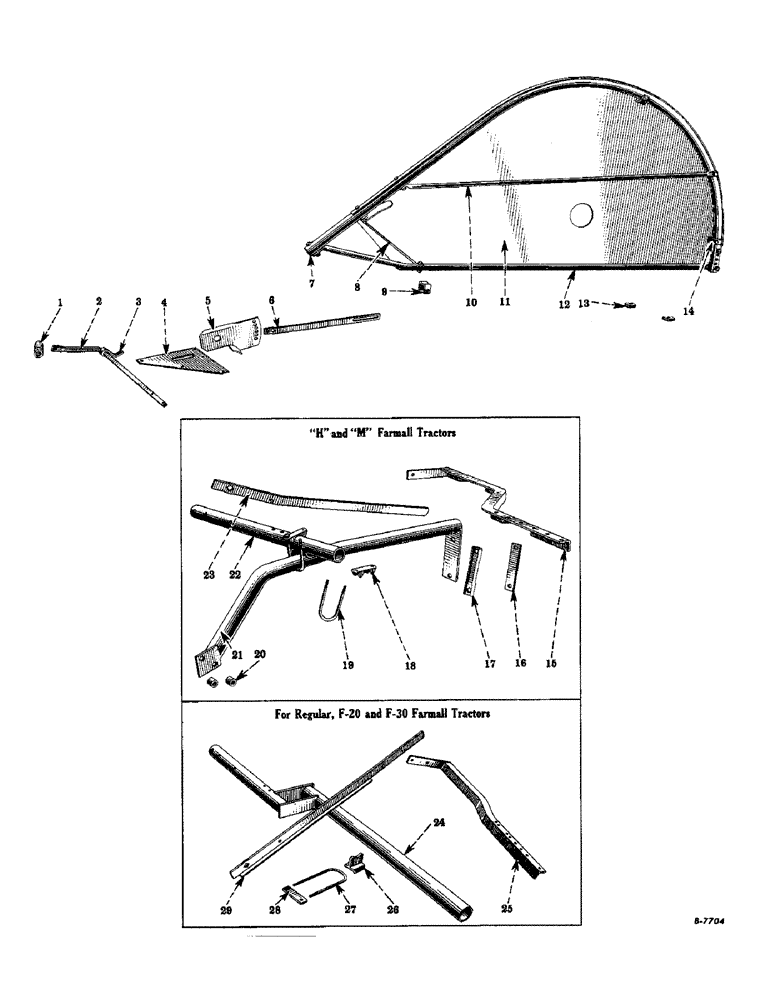

Запчасти Case IH 2-PR (080) - CORN STALK LIFTER ATTACHMENT, FOR REGULAR, F-20, F-30, H AND M FARMALL TRACTORS (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
1
C167M
SPRING, lifter point raising crank (YR. 53-)
1шт.
2
C23611
CRANK, raising, lifter point (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
1шт.
13270R1
BOLT, machine, 7/16-14NC x 1-1/4"
1шт.
615193R1
WASHER
plain, 29/32" I.D. x 1-3/8" O.D. x no. 16 ga.
1шт.
Q109
WASHER
plain, 1/2" I.D. x 1-1/8" O.D. x no. 16 ga.
1шт.
3
C23612
TUBE
BRACKET, lifter lever crank (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
1шт.
4
C23604
SHIELD
PLATE, connecting, lifter pipe and support (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
1шт.
5
C23621
LOCK, lifter lever (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
1шт.
6
CA23613
LINK, lifter point raising crank (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
1шт.
7
CA23598
PIPE, lifter (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
1шт.
15123R1
BOLT
machine, 5/16-18NC x 2-3/4"
2шт.
13414R1
BOLT, machine, 3/8-16NC x 3"
1шт.
13397R1
BOLT, machine, 3/8-16NC x 2-3/4"
1шт.
13416R1
BOLT
machine, 1/2-13NC x 3"
1шт.
13560R1
BOLT, machine, 1/2-13NC x 5"
1шт.
25-285
SQUARE NUT,Sq, 5/16"-18
square, 5/16-18NC
2шт.
105606
NUT
square, 3/8-16NC
2шт.
105608
NUT
square, 1/2-13NC
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
Q3560
WASHER
plain, 1/2" I.D. x 1-1/2" O.D. x no. 16 ga.
2шт.
8
CA23603
BRACE, lifter pipe (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
1шт.
9
C23619
HINGE, lifter point (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
1шт.
13336R1
BOLT, machine, 3/8-16NC x 2"
1шт.
105606
NUT
square, 3/8-16NC
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
10
C23888
TUBE
BRACE, lifter pipe, upper (For H and M Farmall tractors) (YR. 53-)
1шт.
11
UB15319
SHIELD, lifter pipe (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53)
1шт.
12
C23600
PIPE, lifter, lower (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
1шт.
13416R1
BOLT
machine, 1/2-13NC x 3"
1шт.
105608
NUT
square, 1/2-13NC
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
13
CA23605
SPACER, lifter pipe support, rear (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
2шт.
14
U15320
CLAMP, lifter pipe shield (For regular, F-20, F-30, H and M Farmall tractors) (YR. 53-)
2шт.
15
CA23979
SUPPORT, lifter pipe, rear (YR. 53-)
1шт.
13380R1
BOLT, machine, 5/8-11NC x 2-1/2"
2шт.
105610
NUT
square, 5/8-11NC
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
16
C23976
CLAMP, lifter front support bracket (YR. 53-)
1шт.
17
C3517
SPACER, lifter front support bracket, rear (YR. 53-)
1шт.
18
C3518
CLAMP, supporting, lifter, front (YR. 53-)
2шт.
19
C23978
U-BOLT, lifter pipe front 7/16-14NC (YR. 53-)
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
20
C13756
SPACER
supporting, lifter, front (YR. 53-)
2шт.
13380R1
BOLT, machine, 5/8-11NC x 2-1/2"
2шт.
105610
NUT
hex., 5/8-11NC
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
21
C33650
BRACKET, supporting, lifter, front (YR. 53-)
1шт.
13676R1
BOLT, machine, 5/8-11NC x 7-1/2"
2шт.
105610
NUT
square, 5/8-11NC
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
22
C23978
SUPPORT, lifter pipe, front (YR. 53-)
1шт.
23
CA23980
LEVER, lifter (YR. 53-)
1шт.
24
C33651
SUPPORT, lifter pipe, front (Welded assembly) (YR. 53-)
1шт.
25
CC23624
SUPPORT, lifter pipe, rear (YR. 53-)
1шт.
26
C3403
SADDLE, supporting, lifter (YR. 53-)
2шт.
27
C23606
U-BOLT, supporting, lifter pipe 7/16-14NC (YR. 53-)
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
28
C23607
PLATE, lifter pipe support U-bolt (YR. 53-)
1шт.
29
UB15612
LEVER, lifter, w/stiffener (Welded assembly) (For regular, F-20 and F-30 Farmall tractors) (YR. 53-)
1шт.
Выбрано товаров: 65
