(105[1]) - WAGON BOX SIDE EXTENSION

Запчасти Case IH 2-PR (105[1]) - WAGON BOX SIDE EXTENSION (80) - CROP STORAGE/UNLOADING

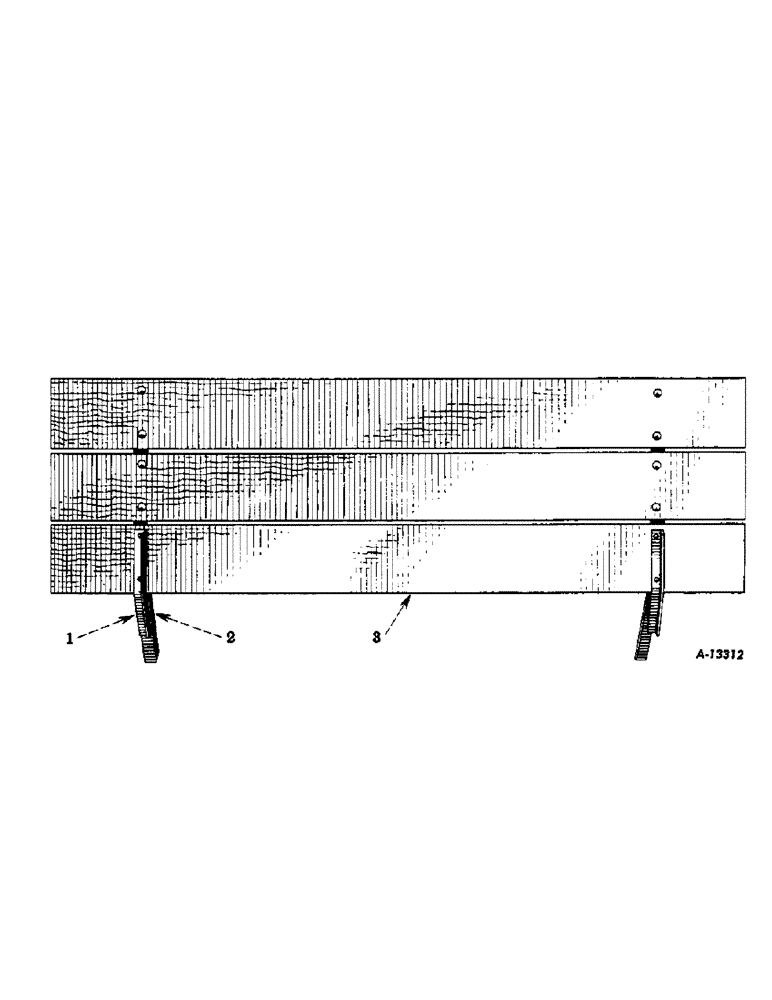

Схема запчастей Case IH 2-PR - (105[1]) - WAGON BOX SIDE EXTENSION (80) - CROP STORAGE/UNLOADING
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

WAGON BOX SIDE EXTENSION BUNDLE (Ordering number UA10451) (YR. 53-60) This bundle includes all of the parts listed below:

1шт.

1

UA11216

BRACKET, wagon box side extension, inner (YR. 53-60)

2шт.

104070

HOUSING

RIVET, rd-hd., 3/16 x 7/8"

2шт.

2

UA11215

BRACKET, wagon box side extension, outer (YR. 53-60)

2шт.

104070

HOUSING

RIVET, rd-hd., 3/16 x 7/8"

2шт.

3

U11214

BOARD, wagon box side extension (YR. 53-60)

3шт.
