Запчасти Case IH 2-PR (094) - ELEVATOR FAN ATTACHMENT, ADAPTING PARTS (80) - CROP STORAGE/UNLOADING

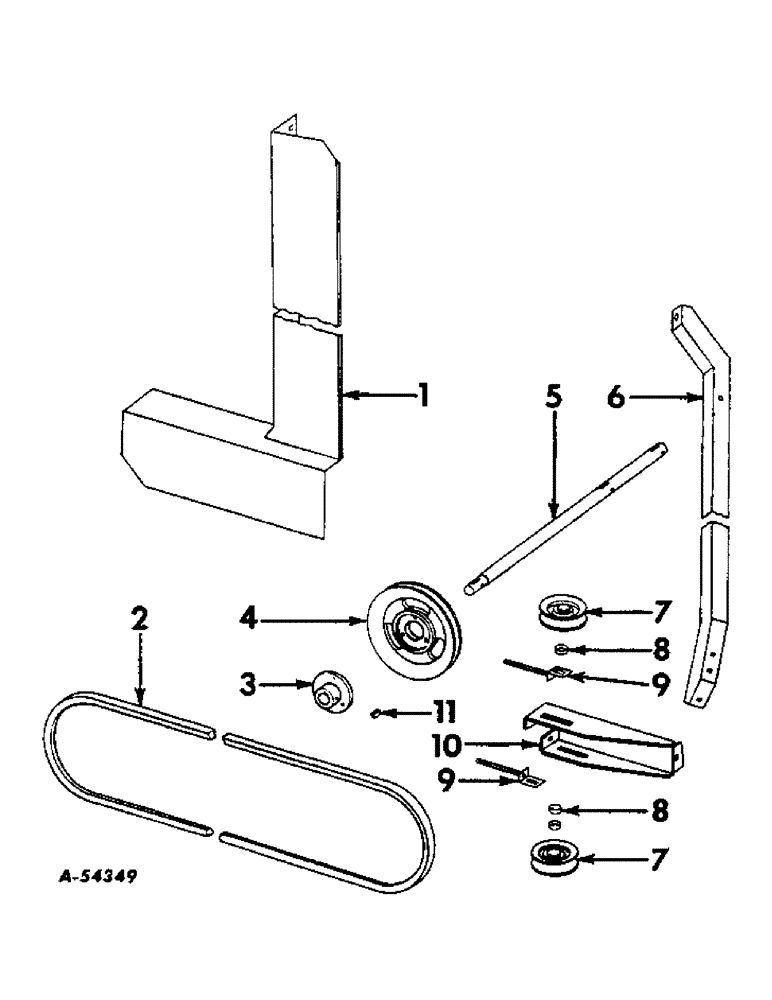

ELEVATOR FAN ADAPTER PARTS (Machine Attachment)

1шт.

1

581890R91

SHIELD, elevator drive and fan jackshaft (YR. 58-)

1шт.

2

581832R1

BELT

Fan drive (YR. 58-)

1шт.

3

581883R91

HUB, elevator fan drive sheave driver jackshaft (Welded assembly) (YR. 58-)

1шт.

4

581850R1

SHEAVE, driver, fan drive jackshaft (YR. 58-)

1шт.

5

581885R1

SHAFT, main drive (YR. 58-)

1шт.

6

581886R1

STIFFENER, wagon elevator bail rod support (YR. 58-61)

1шт.

7

567872R91

PULLEY

SHEAVE, elevator fan belt idler (YR. 58-)

2шт.

8

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

fan drive idler sheave (YR. 58-)

3шт.

9

587306R91

BRACKET, elevator fan drive tightener (YR. 58-)

2шт.

10

581880R91

BRACKET, elevator fan drive tightener (YR. 58-)

1шт.

11

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, Woodruff, no. 15 (YR. 58-)

1шт.
