Запчасти Case IH 2-PR (093) - ELEVATOR FAN ATTACHMENT, DRIVE PARTS (80) - CROP STORAGE/UNLOADING

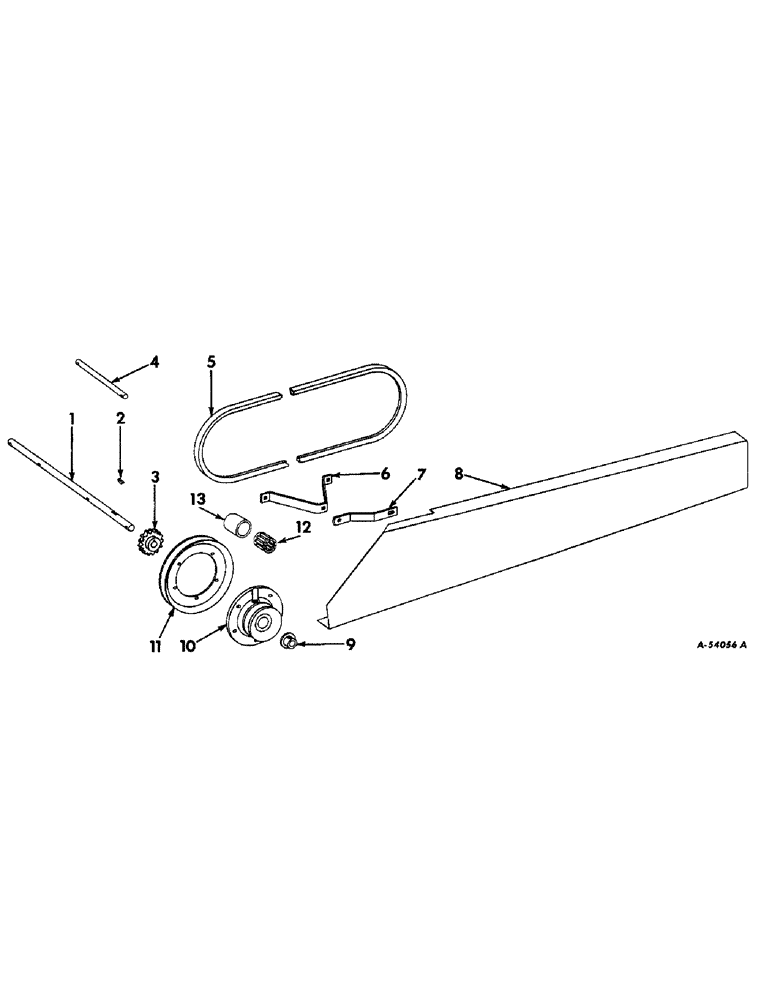

Схема запчастей Case IH 2-PR - (093) - ELEVATOR FAN ATTACHMENT, DRIVE PARTS (80) - CROP STORAGE/UNLOADING
7
1
3
13
6
2
11
5
9
10
12
8
4

Артикул

Название

Примечание

Количество

1

581838R1

SHAFT, wagon elevator boot (YR. 58-)

1шт.

2

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, Woodruff (YR. 58-)

1шт.

3

581837R91

SPROCKET, wagon elevator driven (YR. 58-)

1шт.

4

581839R1

PIN, wagon elevator bail rod pivot bracket (YR. 58-)

1шт.

5

582450R1

V-BELT

Fan drive, Upper (YR. 58-)

1шт.

6

581857R1

HANGER, elevator fan belt shield (YR. 58-)

1шт.

7

581861R1

SUPPORT, elevator fan belt shield lower (YR. 58-)

1шт.

8

581858R91

SHIELD, elevator fan belt (Welded assembly) (YR. 58-)

1шт.

9

U1283

COLLAR, wagon elevator boot shaft (YR. 58-)

1шт.

10

581851R1

HUB, fan drive idler (YR. 58-)

1шт.

11

566516R91

PULLEY ASSY.

SHEAVE, elevator fan final drive (YR. 58-)

1шт.

12

ST1300

BEARING

roller (YR. 58-)

1шт.

13

552440R1

RACE

(YR. 58-)

1шт.

Выбрано товаров: 13
