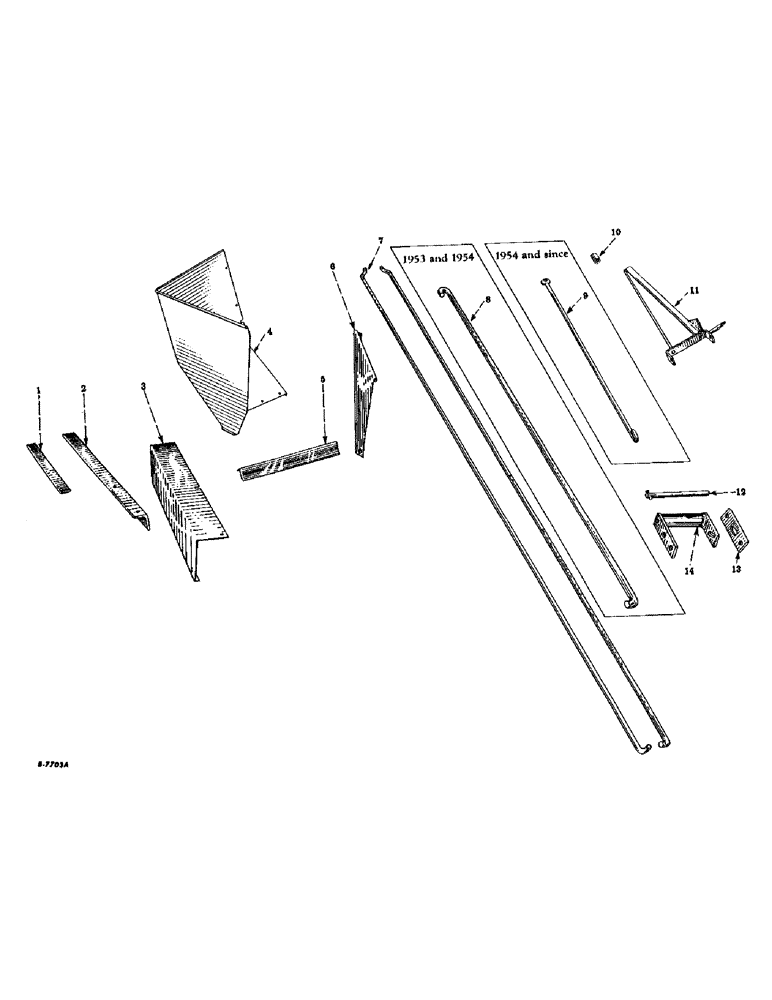

Запчасти Case IH 2-PR (078) - WAGON ELEVATOR HOPPER AND BAIL RODS AND SUPPORTS (80) - CROP STORAGE/UNLOADING

1

578889R1

BRACE, wagon elevator jackshaft support post (YR. 53-)

1шт.

2

578737R91

POST, supporting, wagon elevator jackshaft, w/spacer (Welded assembly) (YR. 53-)

1шт.

3

578868R1

SHIELD, wagon elevator drive chain (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

114773

NUT, hex, 7/16-14NC

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

578893R92

HOPPER, wagon elevator, w/rod, assembly (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

6шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, carriage, 7/16-14NC x 1-1/4"

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

6шт.

114773

NUT, hex., 7/16-14NC

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Q1597

WASHER

plain, 13/32" I.D. x 3/4" O.D. x no. 16 ga.

4шт.

551171R1

WASHER, plain, 21/32" I.D. x 1-1/4" O.D. x no. 16 ga.

3шт.

5

578112R1

EXTENSION, wagon elevator hopper, front (YR. 53-)

1шт.

6

577994R91

SIDE, wagon elevator hopper, right, w/stiffener (Welded assembly) (YR. 53-)

1шт.

7

578850R2

ROD, bail, wagon elevator (YR. 53-)

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

8

578894R1

ROD, supporting, wagon elevator (YR. 53-54)

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

Q3814

WASHER, plain, 25/32" I.D. x 1-1/2" O.D. x no. 16 ga.

1шт.

9

579352R1

ROD, wagon elevator support (YR. 54-)

1шт.

10

579119R1

BUSHING, wagon elevator support rod (YR. 54-)

1шт.

11

578901R93

SUPPORT, wagon elevator bail rod, w/gusset, pipe, rod, strap and stop (Welded assembly) (YR. 53-)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

1шт.

13272R1

BOLT, machine, 1/2-13NC x 1-1/4"

1шт.

280136

NUT,3/8"-16, G8

1шт.

114774

NUT, hex., 7/16-14NC

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

12

577988R1

PIN, wagon elevator bail rod pivot bracket (YR. 53-)

1шт.

103403

PIN, cotter, 3/16 x 1-/14"

2шт.

12258R1

WASHER

plain, 21/32" I.D. x 1-1/4" O.D. x no. 11 ga.

1шт.

13

578047R1

BAR, adjusting, wagon elevator bail rod pivot bracket (YR. 53-)

1шт.

13340R1

BOLT, machine, 5/8-11NC x 2"

1шт.

114820

NUT, hex., 5/8-11NC

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12258R1

WASHER

plain, 21/32" I.D. x 1-1/4" O.D. x no. 11 ga.

1шт.

14

577991R1

BRACKET, pivot, wagon elevator bail rod, w/bracket (Welded assembly) (YR. 53-)

1шт.

17586R1

BOLT, hex-hd., 3/4"-16NC x 2-1/2"

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, hex., slotted, 3/4"-16NC

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.
