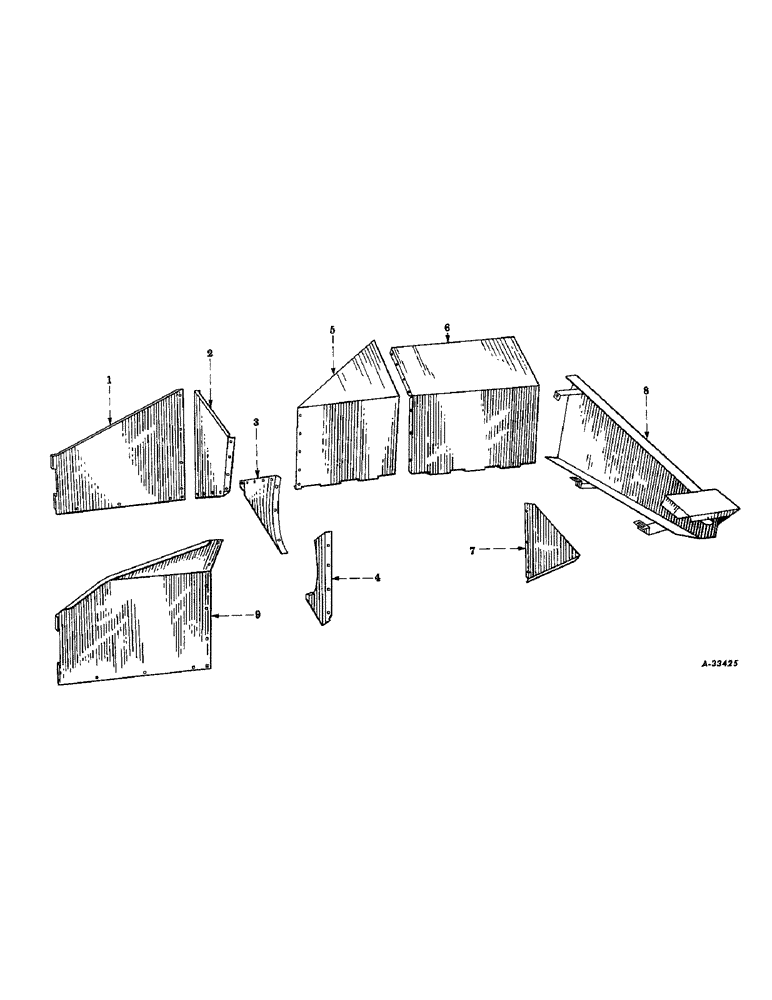

Запчасти Case IH 2-PR (055) - WORM CONVEYOR TROUGH FRONT EXTENSION, FILLER AND DRIVE CHAIN SHIELD (80) - CROP STORAGE/UNLOADING

1

578858R1

EXTENSION, conveyor worm trough and husking unit side, front (YR. 53-)

1шт.

2

578854R1

FILLER, conveyor worm trough, front upper (YR. 53-)

1шт.

3

578855R1

FILLER, conveyor worm trough, front lower (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

5шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

4

578856R1

FILLER, conveyor worm trough, rear (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

3шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

578857R1

TROUGH, conveyor worm, front left (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

U16267

TROUGH, conveyor worm, front upper right (YR. 53-)

1шт.

7

U18877

EXTENSION, conveyor worm trough end, right (YR. 53-)

1шт.

8

578921R91

SHIELD, conveyor worm drive chain, w/bracket and guard (Welded assembly) (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

578859R1

EXTENSION, conveyor worm trough and husking unit side, rear (YR. 53-)

1шт.
