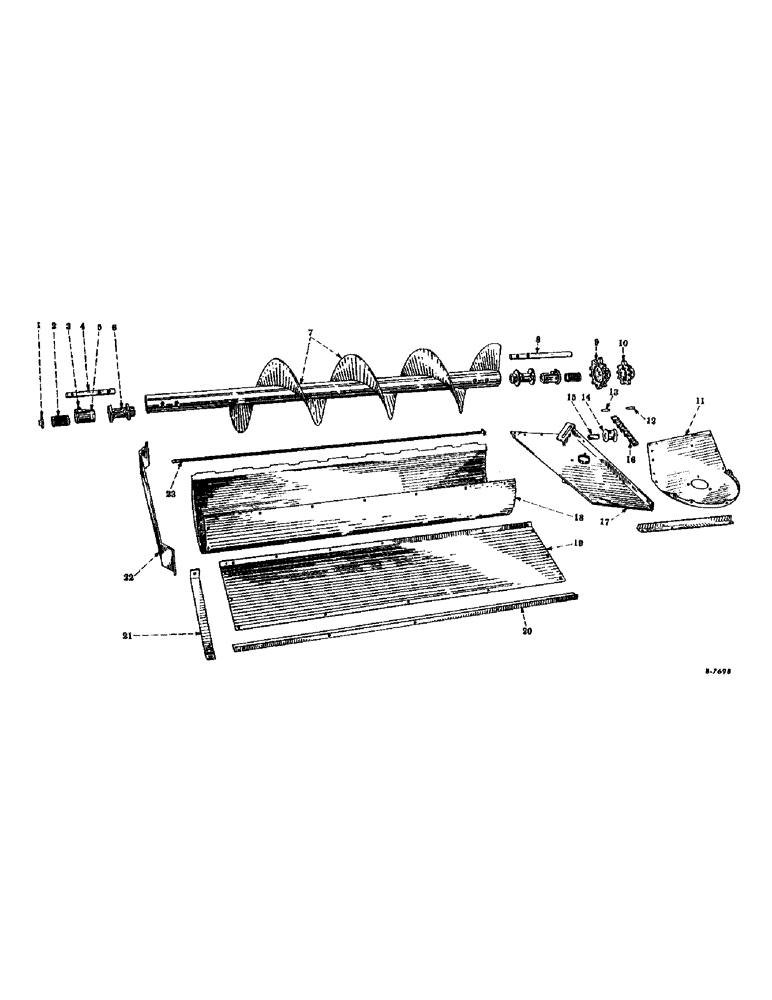

Запчасти Case IH 2-PR (052) - CONVEYOR WORM AND TROUGH (80) - CROP STORAGE/UNLOADING

1

M82160

COLLAR, conveyor worm shaft (YR. 53-)

1шт.

2

ST1313

BEARING, roller, worm conveyor shaft bearing box (Implement type) (YR. 53-)

2шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

2шт.

4

578753R1

GUDGEON, conveyor worm, left (YR. 53-)

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

42585V

WASHER, plain, 1-1/32" I.D. x 2-1/4" O.D. x no. 16 ga.

2шт.

5

UA1245

BOX, bearing, conveyor worm shaft (YR. 53-)

2шт.

6

UB1836

BUSHING, conveyor worm tube (YR. 53-) 2.86" OD x 3.875" L

2шт.

13450R1

BOLT, machine, 3/8-16NC x 3-1/2"

4шт.

280136

NUT,3/8"-16, G8

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

578757R91

WORM, conveyor, w/shaft (Welded assembly) (YR. 53-)

1шт.

8

578754R1

GUDGEON, conveyor worm, right (YR. 53-)

1шт.

42585V

WASHER, plain, 1-1/32" I.D. x 2-1/4" O.D. x no. 16 ga.

3шт.

9

U1961

SPROCKET, drive, first elevator and trash roll (9-teeth) (YR. 53-)

1шт.

10

578752R2

SPROCKET, drive, first elevator and conveyor worm (10-teeth) (YR. 53-)

1шт.

11

U18879

TROUGH, conveyor worm, end right (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

5шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

Q442

KEY, taper, first elevator and conveyor worm drive sprocket (5/16 x 5/16 x 1-5/8") (YR. 53-) Gib, 5/16" Sq x 1 5/8" Tap

1шт.

13

Q442

KEY, taper, first elevator and trash roll drive sprocket (5/16 x 5/16 x 1-5/8") (YR. 53-) Gib, 5/16" Sq x 1 5/8" Tap

1шт.

14

B2191

ROLLER, tightening, first elevator and trash roll drive chain (YR. 53-)

2шт.

15124R1

BOLT (SPREADER)

BOLT, carriage, 3/8-16NC x 2-3/4"

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

PO10532

WASHER

plain, 13/32" I.D. x 1-1/4" O.D. x no. 11 ga.

1шт.

15

M10917

BEARING, first elevator and trash roll drive chain tightener (YR. 53-)

1шт.

16

CHAIN, drive, first elevator and trash roll (Order 38 links no. 55 steel chain) (YR. 53-)

1шт.

17

578888R91

BRACKET, conveyor worm shaft bearing, w/extension, shield and stiffener (Welded assembly) (YR. 53-)

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

U18882

TROUGH, conveyor worm, rear right lower (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

9шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

11шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

19

UA18876

TROUGH, conveyor worm, rear right, upper (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

13шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

13шт.

20

578845R1

ANGLE, stiffening, conveyor worm trough (YR. 53-)

1шт.

21

578967R1

STRAP, stiffening, conveyor trough extension, rear (YR. 53-)

1шт.

22

578849R1

SUPPORT, conveyor worm bearing, left (YR. 53-)

1шт.

23

U16311

ROD, conveyor worm trough (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
