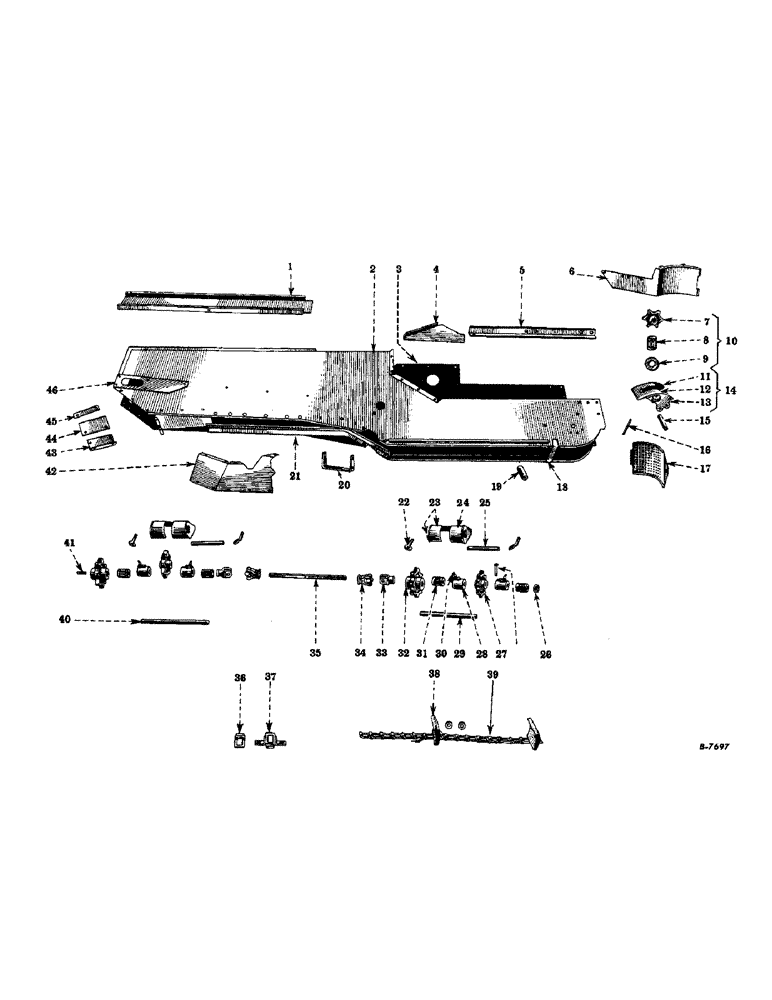

Запчасти Case IH 2-PR (043) - FIRST ELEVATOR (80) - CROP STORAGE/UNLOADING

1

U16973

COVER, first elevator, upper (YR. 53-)

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

15350R1

BOLT, carriage, 5/16-18NC x 7"

6шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

2

U15804

SHEET, first elevator outer side, left (YR. 53-)

1шт.

2

U15803

SHEET, first elevator outer side, right (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

11шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, carriage, 3/8-16NC x 3/4"

19шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

30шт.

218438

NUT, jam, 3/8-16NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

19шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

13шт.

Q397

WASHER

plain, 11/32" I.D. x 3/4" O.D. x no. 16 ga.

2шт.

3

U18226

SHEET, first elevator inner side, left (YR. 53-)

1шт.

3

U18225

SHEET, first elevator inner side, right (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

16шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

10шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

8шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

28шт.

280136

NUT,3/8"-16, G8

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

8шт.

4

U16551

EXTENSION, first elevator, inner side sheet, right (YR. 53-)

1шт.

4

U16552

EXTENSION, first elevator, inner side sheet, left (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

12шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

5

U15764

ANGLE, supporting, first elevator, lower right (YR. 53-)

1шт.

5

U15765

ANGLE, supporting, first elevator, lower left (YR. 53-)

1шт.

6

U18219

SHIELD, first elevator front end, right (YR. 53-)

1шт.

6

U18220

SHIELD, first elevator front end, left (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

6шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

10шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

20шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

7

U1312

SPROCKET, first elevator, lower (6-teeth) (Order UX1312, ref. no. 10) (YR. 53-)

2шт.

8

1305

BEARING

roller, first elevator lower sprocket (Implement type) (YR. 53-)

2шт.

9

U10712

WASHER, retaining, grease, first elevator lower sprocket (YR. 53-)

2шт.

10

UX1312

SPROCKET, first elevator, lower, w/bearing and washer, assembly (Includes ref. nos. 7, 8 and 9) (YR. 53-)

2шт.

11

U1749

BRACKET, first elevator idler shaft, right (Order extension U17553) (YR. 53-60)

2шт.

12798R1

BOLT, plow, no. 3, 5/16-18NC x 3/4"

6шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

U14527

EXTENSION, first elevator bottom, lower (YR. 53-)

2шт.

107157

X

RIVET, truss-hd., 3/16 x 1/2"

12шт.

13

U1750

BRACKET, first elevator idler shaft, left (Order extension U17553) (YR. 53-60)

2шт.

14

U17553

EXTENSION, first elevator bottom, lower (Riveted assembly) (Includes ref. nos. 11, 12 and 13) (YR. 53-)

2шт.

15

U16369

SHAFT, idler, first elevator (YR. 53-)

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

575611R1

WASHER, plain, 23/32" I.D. x 1-1/4" O.D. x no. 16 ga.

10шт.

16

U16349

ROD, hinge, elevator bottom door (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

PIN, cotter, 3/16 x 1-1/2"

2шт.

17

U15589

DOOR, first, elevator bottom (YR. 53-)

2шт.

551757R1

BOLT, carriage, 5/16-18NC x 2-5/8"

2шт.

129-419

WING NUT,5/16"-18

NUT, wing, 5/16-18NC

2шт.

Q397

WASHER

plain, 11/32" I.D. x 3/4" O.D. x no. 16 ga.

2шт.

18

UA15590

BRACKET, first elevator bottom door (YR. 53-)

2шт.

19

U17242

PIPE, spreader, first elevator (YR. 53-)

2шт.

20

U15703

BRACKET, tie, first elevator, bottom (YR. 53-)

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

UA15924

GUIDE, first elevator chain, left (YR. 53-)

2шт.

21

UA15925

GUIDE, first elevator chain, right (YR. 53-)

2шт.

22

U15977

BOLT

tightening, first elevator conveyor chain (YR. 53-)

4шт.

114773

NUT, hex., 7/16-14NC

8шт.

23

UA18466

EXTENSION, first elevator bottom, upper, w/bracket (Welded assembly) (YR. 53-)

2шт.

24

UB10774

EXTENSION, first elevator bottom, upper (Order UA18466, ref. no. 23) (YR. 53-)

2шт.

25

U15982

SPACER, first elevator headshaft bearing bracket (YR. 53-)

2шт.

26

M3388

BUSHING

WASHER, step, first elevator headshaft (29/32") (YR. 53-)

2шт.

27

UA1455

SPROCKET, first elevator headshaft (8-teeth) (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

U5351

DOWEL

PIN, std-hd., dld., 5/16 x 5/16"

4шт.

28

U1303

BOX, bearing, first elevator headshaft (YR. 53-)

4шт.

29

U15988

SHAFT, first elevator headshaft, left (YR. 53-)

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

VC649

WASHER

plain, 29/32" I.D. x 1-3/4" O.D. x no. 16 ga.

6шт.

30

NLS

NO LONGER SERVICED

lubrication, 30 degree elbow, 1/8" (YR. 53-)

4шт.

31

ST1300

BEARING

roller, first elevator headshaft bearing box (Implement type) (YR. 53-)

4шт.

32

U1986

SPROCKET, drive, first elevator headshaft (9-teeth) (YR. 53-)

1шт.

33

M3413

KNUCKLE, first elevator drive shaft, w/swivel (YR. 53-)

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

34

M3089

KNUCKLE, first elevator headshaft (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

Q3529

AXLE PIN

PIN, std-hd., dld., 5/16 x 1-5/8"

1шт.

Q1178

HEADED PIN,7/16" x 2 1/2"

PIN, std-hd., dld., 7/16 x 2-1/2"

2шт.

35

U13262

SHAFT, drive, first elevator (YR. 53-)

1шт.

36

62

LINK ASSY.

LINK, plain, first elevator conveyor chain (Steel) (YR. 53-)

200шт.

37

62SD

LINK, attaching, first elevator conveyor chain (Steel) (YR. 53-)

26шт.

38

936657R91

RUBBER FLIGHT

FLIGHT, first elevator conveyor, w/links (Riveted assembly) (Rubber flight) (Includes ref. nos. 36 and 37) (YR. 53-)

26шт.

103486

BUMPER

RIVET, rd-hd., 1/4 x 13/16"

52шт.

13661H

WASHER, plain, 17/64" I.D. x 1" O.D. x no. 16 ga.

52шт.

39

936632R91

CHAIN, first elevator conveyor, w/flights and links (Riveted assembly) (Includes ref. nos. 36, 37 and 38) (YR. 53-)

2шт.

40

U15978

SHAFT, first elevator headshaft, right (YR. 53-)

1шт.

VC649

WASHER

plain, 29/32" I.D. x 1-3/4" O.D. x no. 16 ga.

6шт.

41

Q499

KEY, tapered, first elevator headshaft drive sprocket (1/4 x 1/4 x 1") (YR. 53-) Gib, 1/4" Sq x 1" Tap

1шт.

42

582100R91

SHIELD, snapping roll, upper right (YR. 53-)

1шт.

42

582101R91

SHIELD, snapping roll, upper left (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

14шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

14шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

43

U18039

SUPPORT, first elevator ear return shield (YR. 53-)

2шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

44

UA11480

SHIELD, first elevator ear return (belting) (YR. 53-)

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

45

UA11478

STIFFENER, first elevator ear return shield (YR. 53-)

2шт.

13245R1

BOLT

machine, 3/8-16NC x 3/4"

2шт.

13270R1

BOLT, machine, 3/8-16NC x 1-1/4"

2шт.

13255R1

BOLT, machine, 3/8-16NC x 1"

2шт.

280136

NUT,3/8"-16, G8

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

46

U18232

PLATE, first elevator conveyor chain tightener bracket, left welded assembly (YR> 53)

2шт.

46

U18233

PLATE, first elevator conveyor chain tightener bracket, right (Welded assembly) (YR. 53-)

2шт.

15372R1

BOLT, carriage, 3/8-16NC x 7-3/4"

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

581868R1

BOTTOM, first elevator lower, front (YR. 57-)

2шт.

U15874

BOTTOM, first elevator lower, rear (YR. 57-)

2шт.
