(088) - BANK LUBRICATION ATTACHMENT, HUSKING UNIT LUBRICATION

Запчасти Case IH 2-PR (088) - BANK LUBRICATION ATTACHMENT, HUSKING UNIT LUBRICATION (71) - LUBRICATION SYSTEM

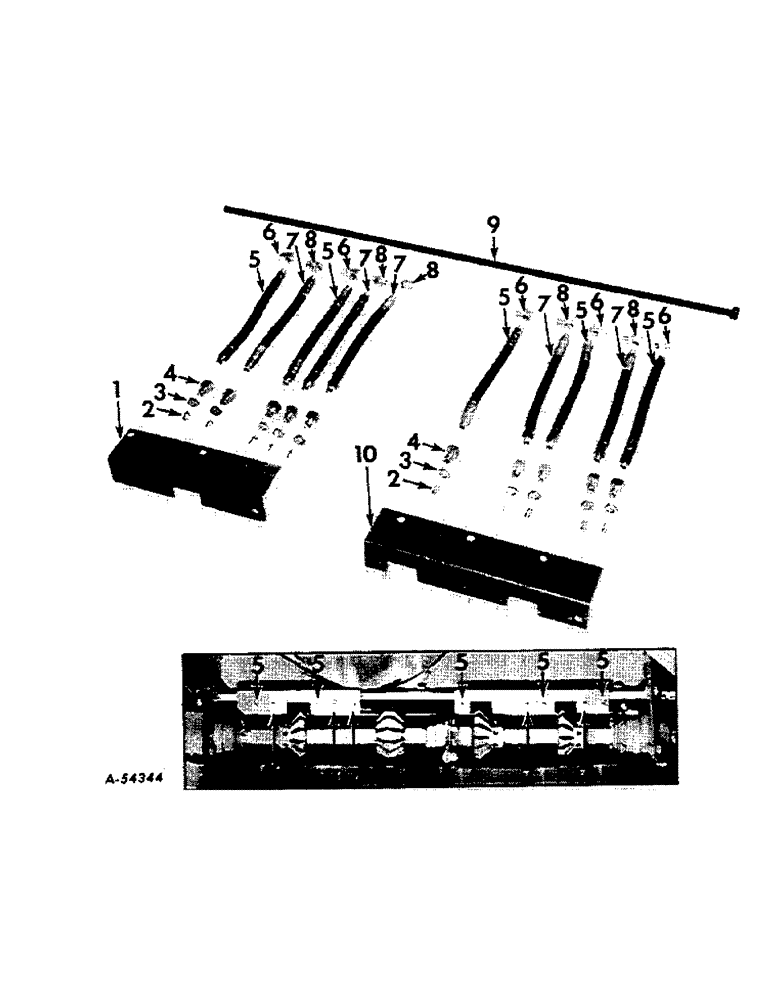

Схема запчастей Case IH 2-PR - (088) - BANK LUBRICATION ATTACHMENT, HUSKING UNIT LUBRICATION (71) - LUBRICATION SYSTEM
5
8
5
2
5
4
5
3
5
8
7
9
1
6
8
2
7
8
6
5
6
8
10
7
5
3
5
5
7
5
4
7
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

581867R1

BRACKET, husking roll upper bearing lubrication rear (YR. 57-)

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (YR. 57-) 1/4"-28 NPT x .54" lg

10шт.

3

581873R1

TUBE NUT,4.8 mm Length

steel, lubrication bank nipple (YR. 57-)

10шт.

4

580255R1

ADAPTER

NIPPLE, straight (YR. 57-)

10шт.

5

580261R91

HOSE, assembly (Upper husking rolls upper bearing) (8" long) (YR. 57-)

5шт.

6

580258R1

ELBOW

NIPPLE, 90 degree (YR. 57-)

5шт.

7

580261R91

HOSE, assembly (Lower husking rolls upper bearing) (8" long) (YR. 57-)

5шт.

8

580257R1

ADAPTER,60 Degree, 1/8"-27

NIPPLE, 60 degree (YR. 58-)

5шт.

9

581803R1

ROD, husking rolls upper bearing lubrication hoses support (YR. 57-)

1шт.

10

581866R1

BRACKET, husking roll upper bearing lubrication, front (YR. 57-)

1шт.
