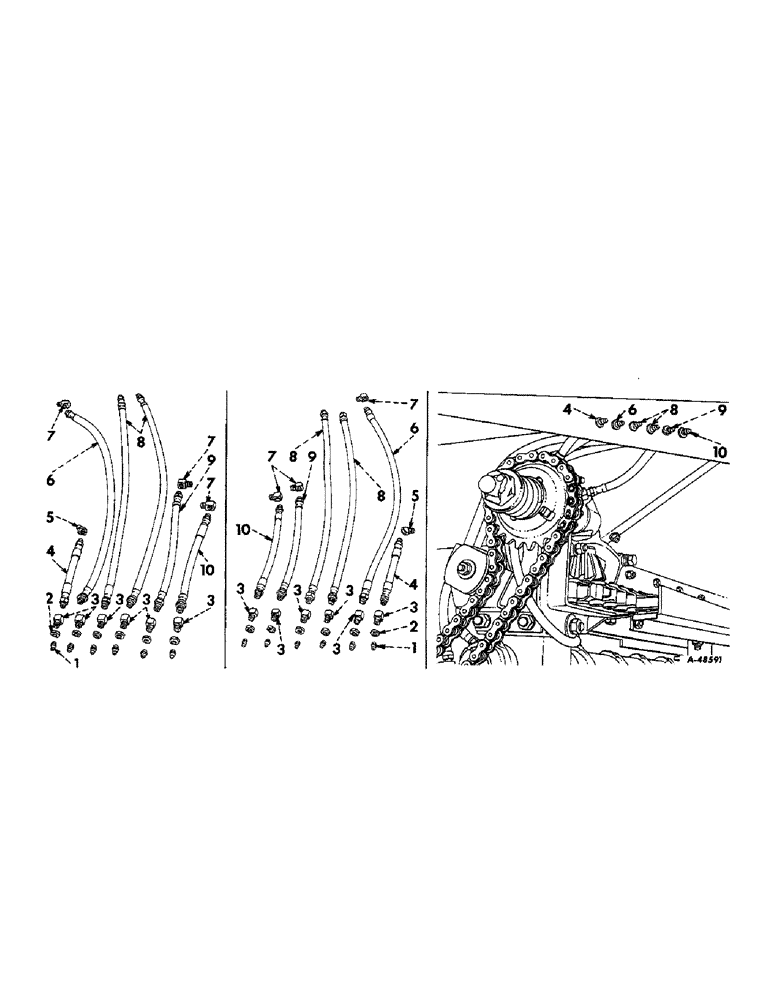

Запчасти Case IH 2-PR (087) - BANK LUBRICATION ATTACHMENT, OUTER GATHERER DRIVE LUBRICATION (71) - LUBRICATION SYSTEM

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

12шт.

2

581873R1

TUBE NUT,4.8 mm Length

steel, lubrication bank nipple

12шт.

3

580255R1

ADAPTER

NIPPLE, straight

12шт.

4

580260R91

HOSE,0.19" ID x 6.00"

Outer Gatherer Drive Bracket Lubrication Rear 0.19" ID x 6.00"

2шт.

5

580257R1

ADAPTER,60 Degree, 1/8"-27

NIPPLE, 60 degrees

2шт.

6

580269R91

HOSE,0.19" ID x 23.00"

Outer Gatherer Drive Sprocket and Pinion Shaft 0.19" ID x 23.00"

2шт.

7

580258R1

ELBOW

NIPPLE, 90 degrees

6шт.

8

580269R91

HOSE,0.19" ID x 23.00"

Outer and Lower Snapping Roll Upper Bearing 0.19" ID x 23.00"

4шт.

9

580264R91

HOSE

assembly (Snapping unit beater bevel gear bracket) (11" long)

2шт.

10

580262R91

HOSE, assembly (Outer gatherer drive bracket lubrication front) (9" long)

1шт.
