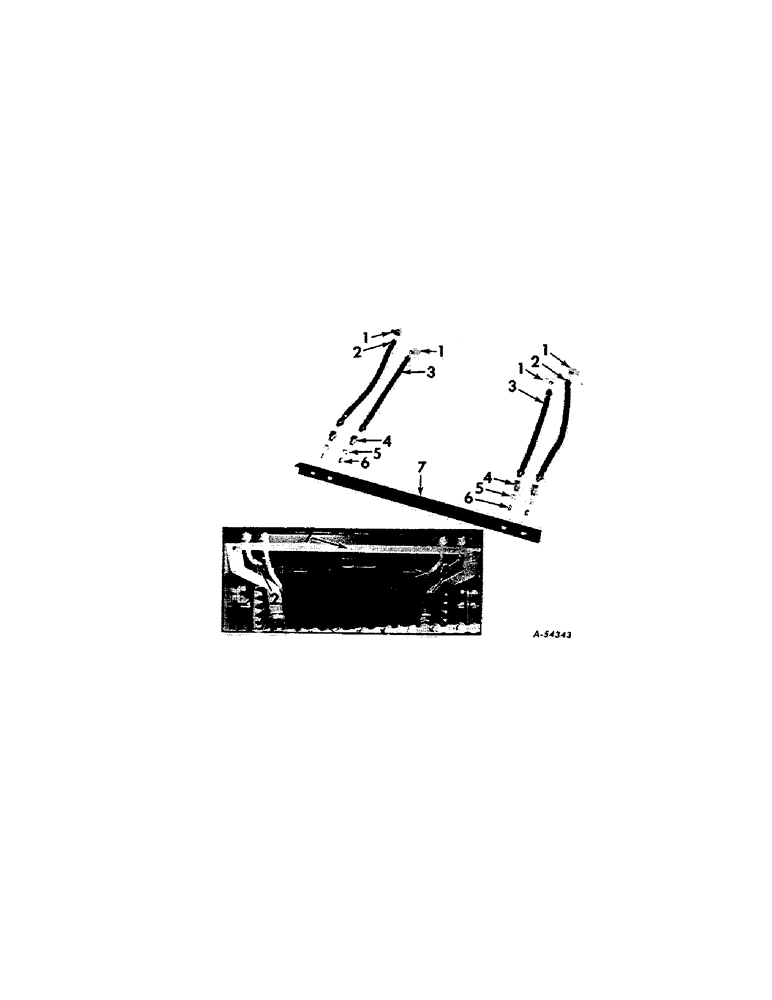

Запчасти Case IH 2-PR (087[1]) - BANK LUBRICATION ATTACHMENT, INNER GATHERER DRIVE LUBRICATION (71) - LUBRICATION SYSTEM

1

580258R91

NIPPLE, 90 degrees (YR. 57-)

4шт.

2

581871R91

HOSE, assembly (Double gatherer drive bracket) (12" long) (YR. 57-)

2шт.

3

580264R91

HOSE

assembly (Double gatherer drive sprocket and pinion shaft) (11" long) (YR. 57-)

2шт.

4

580255R1

ADAPTER

NIPPLE, straight (YR. 57-)

4шт.

5

581873R1

TUBE NUT,4.8 mm Length

steel, bank lubrication (YR. 57-)

4шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (YR. 57-) 1/4"-28 NPT x .54" lg

4шт.

7

581863R91

SUPPORT, double gatherer drive lubrication (YR. 57-)

1шт.
