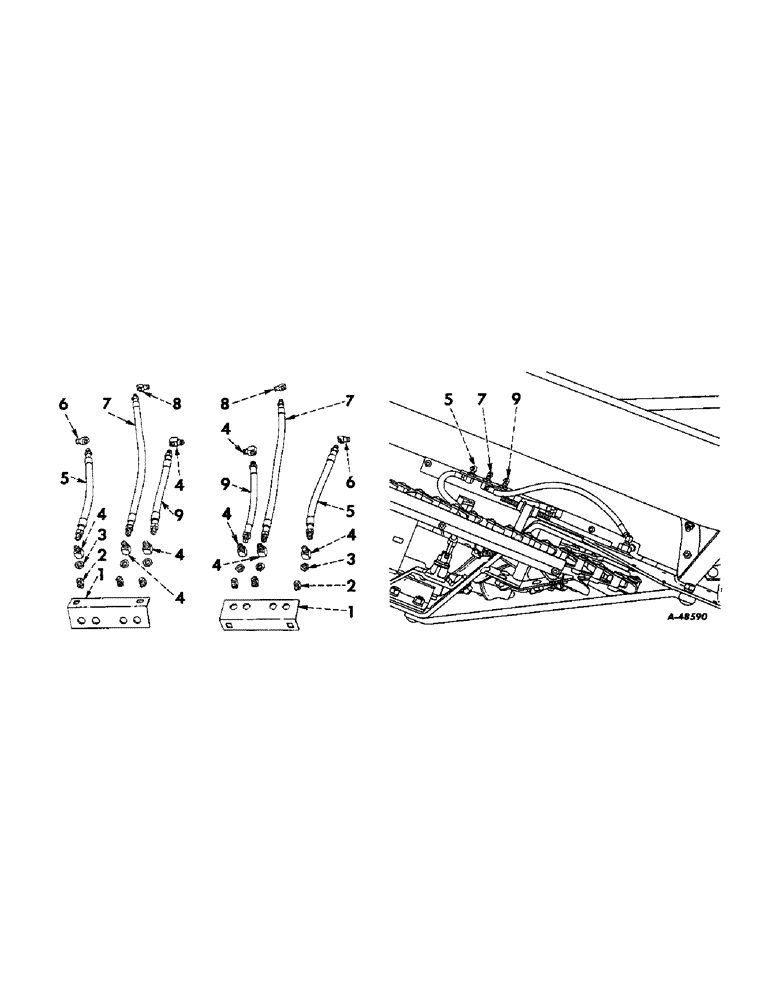

Запчасти Case IH 2-PR (086) - BANK LUBRICATION ATTACHMENT, OUTER GATHERER LUBRICATION (71) - LUBRICATION SYSTEM

1

581865R1

BRACKET, outer gatherer lower lubrication fitting

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

8шт.

2

16964R1

FITTING

lubrication, 90 degree elbow, 1/4"

6шт.

3

581873R1

TUBE NUT,4.8 mm Length

steel, lubrication bank nipple

6шт.

4

580258R1

ELBOW

NIPPLE, 90 degrees

8шт.

5

580262R91

HOSE, assembly (Outer snapping roll lower bearing) (9" long)

2шт.

6

580257R1

ADAPTER,60 Degree, 1/8"-27

NIPPLE, 60 degrees

2шт.

7

580267R91

HOSE,0.19" ID x 15.00"

Outer Gatherer Chain Lower Sprocket 0.19" ID x 15.00"

2шт.

8

580256R1

ADAPTER,45 Degree, 1/8"-27

NIPPLE, 45 degrees

2шт.

9

580261R91

HOSE, assembly (Outer gatherer chain idler roller) (8" long)

2шт.
