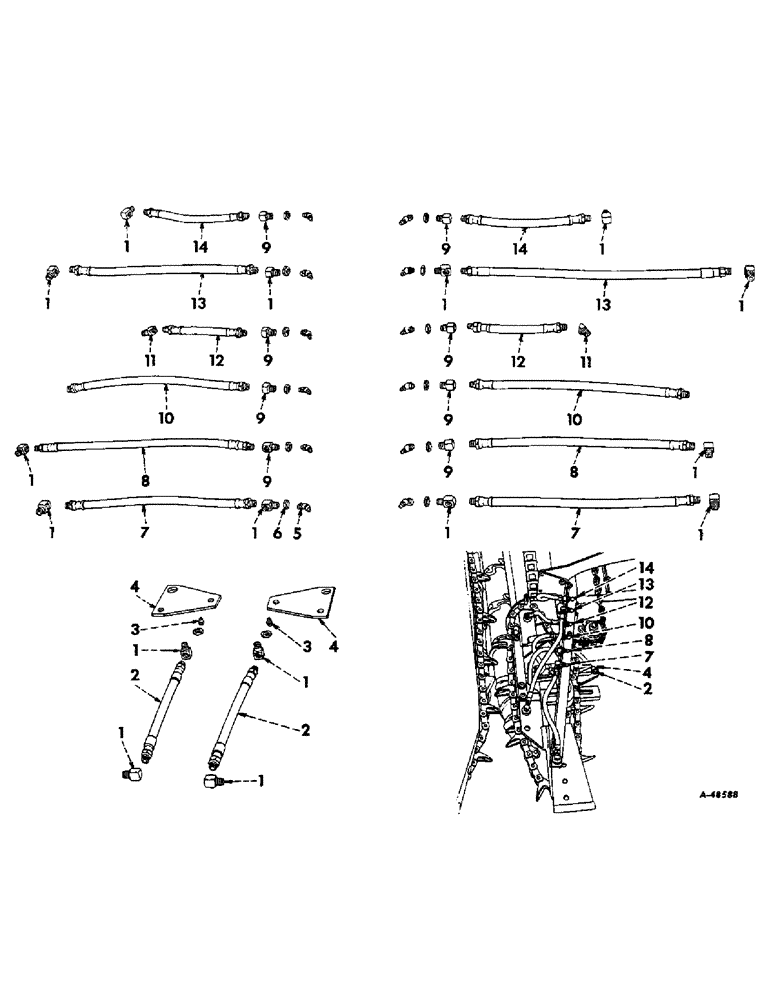

Запчасти Case IH 2-PR (085) - BANK LUBRICATION ATTACHMENT, INNER GATHERER LUBRICATION (71) - LUBRICATION SYSTEM

BANK LUBRICATION (Machine attachment) (Ordering number 581869R91) Consists of the following units:

1шт.

INNER GATHERER LUBRICATION

1шт.

OUTER GATHERER LUBRICATION

1шт.

OUTER GATHERER DRIVE LUBRICATION

1шт.

INNER GATHERER DRIVE LUBRICATION

1шт.

HUSKING UNIT LUBRICATION

1шт.

HUSKING UNIT - FRONT SIDE LUBRICATION

1шт.

LEFT TRASH ROLL LUBRICATION

1шт.

RIGHT TRASH ROLL LUBRICATION

1шт.

WAGON DRIVE ELEVATOR LUBRICATION

1шт.

1

580258R1

ELBOW

NIPPLE, 90 degrees

16шт.

2

580262R91

HOSE, assembly (First elevator lower sprocket) (9" long)

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

4

581864R1

BRACKET, first elevator lower bearing lubrication fitting

2шт.

5

171175

FITTING

lubrication, 45 degree elbow, 1/4"

12шт.

6

581873R1

TUBE NUT,4.8 mm Length

steel, lubrication bank nipple

14шт.

7

580265R91

HOSE

assembly (Inner upper gatherer chain lower sprocket) (13" long)

2шт.

8

580265R91

HOSE

assembly (Inner lower gatherer chain lower sprocket) (13" long)

2шт.

9

580255R1

ADAPTER

NIPPLE, straight

8шт.

10

580265R91

HOSE

assembly (Lower snapping roll lower bracket) (13" long)

2шт.

11

580257R1

ADAPTER,60 Degree, 1/8"-27

NIPPLE, 60 degrees

2шт.

12

580260R91

HOSE,0.19" ID x 6.00"

Inner Gatherer Drive Chain Triple Sprocket, Lubrication 0.19" ID x 6.00"

2шт.

13

580267R91

HOSE,0.19" ID x 15.00"

Inner Gatherer Chain Idler Roller Lubrication 0.19" ID x 15.00"

2шт.

14

580261R91

HOSE, assembly (Inner gatherer chain idler sprocket) (8" long) lubrication

2шт.
