Запчасти Case IH 2-PR (107) - INNER AND OUTER GATHERER CHAIN IDLER ROLLER PACKAGE (60) - PRODUCT FEEDING

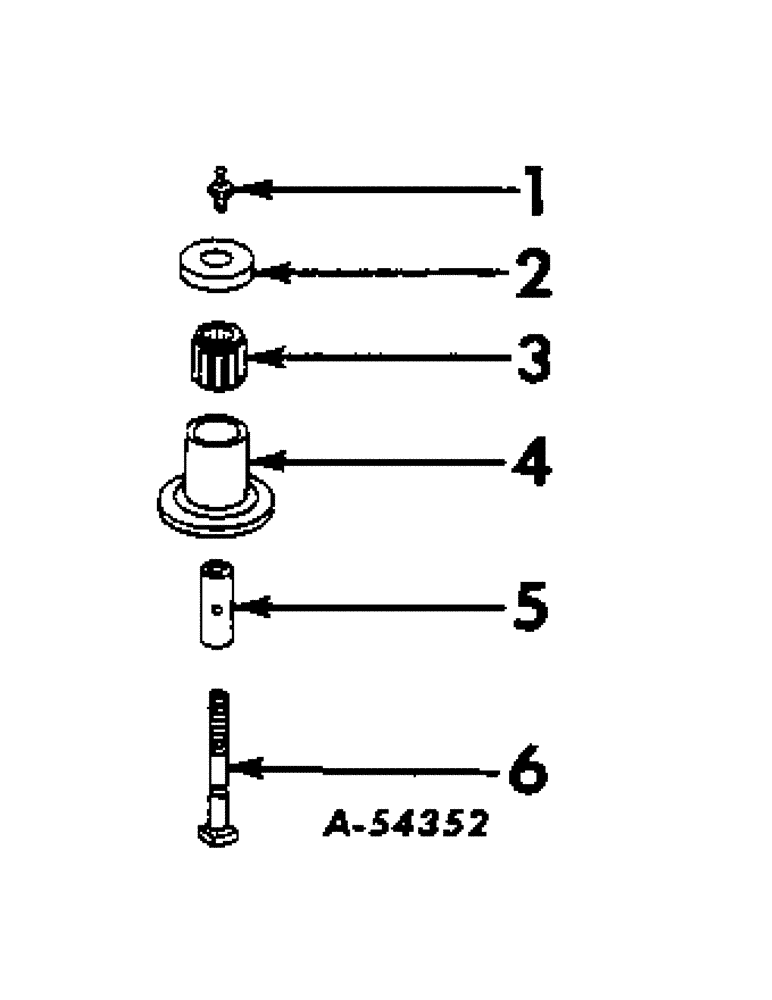

INNER AND OUTER GATHERER CHAIN IDLER ROLLER PACKAGE (Ordering number 585536R91), Consists of all the parts listed below:

1шт.

1

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (YR. 58-)

1шт.

2

U18125

CAP, dust, gatherer chain idler roller (YR. 58-)

1шт.

3

ST1300

BEARING

cylindrical roller unit (YR. 58-)

1шт.

4

577965R91

ROLLER

idler gatherer chain, w/flange (Welded assembly) (YR. 58-)

1шт.

5

U12802

SLEEVE, gatherer chain idler roller (YR. 58-)

1шт.

6

U17129

BOLT, gatherer chain idler roller (YR. 58-)

1шт.

NUT, hex., 5/8"

1шт.

WASHER, lock, 5/8"

1шт.

WASHER, plain, 21/32" I.D. x 2" O.D. x 11 ga.

1шт.

WASHER, plain, 29/32" I.D. x 2-1/4" O.D. x 16 ga.

3шт.

581825R91

SNAPPING ROLL SET SCREW PACKAGE, Consists of all the parts listed below:

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, set, sq-hd., cup-pt., 1/2-13NC x 5/8" (YR. 57-) SNAPPING ROLL SET SCREW PACKAGE

26шт.
