Запчасти Case IH 2-PR (102) - SNAPPING ROLL ADJUSTMENT (60) - PRODUCT FEEDING

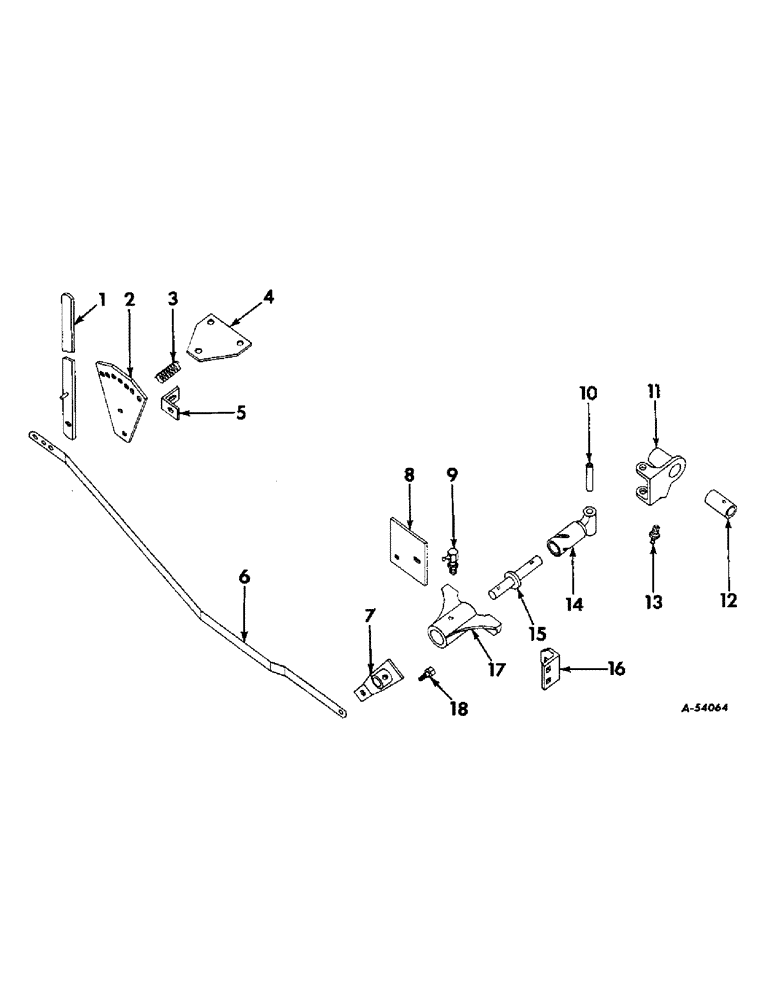

SNAPPING ROLL ADJUSTMENT (Machine attachment 1957 and prior) (Regular 1958 and since)

1шт.

1

580171R91

LEVER, upper snapping roll adjustment (Welded assembly) (YR. 53-)

2шт.

2

580176R91

QUADRANT, upper snapping roll adjustment left lever (Welded assembly) (YR. 53-)

1шт.

2

580175R91

QUADRANT, upper snapping roll adjustment right lever (Welded assembly) (YR. 53-)

1шт.

17583R1

BOLT, mach., dld., hex-hd., 3/8 x 2-1/2"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

Q1597

WASHER

plain, 13/32 x 3/4" x 16 ga.

2шт.

3

2189A

SPRING, upper snapping roll adjustment lever (YR. 53-)

2шт.

4

581794R1

PLATE, upper snapping roll control anchor (YR. 53-)

2шт.

5

581795R1

CLIP, upper snapping roll control anchor (YR. 53-)

3шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8 x 1"

2шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

mach., hex-hd., 1/2 x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

102635

NUT,3/8"-16, G5

hex., 1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

581796R1

LINK, upper snapping roll control lever (YR. 53-)

2шт.

7

587358R1

ARM, upper snapping roll adjustment (58-)

2шт.

7

580167R91

ARM, upper snapping roll adjustment (YR. 53-57)

2шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, (YR. 53-57) 3/8" x 1 1/2", Slotted

2шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, (YR. 58-) 5/16" x 1 1/2", Slotted

2шт.

8

580163R1

SUPPORT, upper snapping roll control (YR. 53-55)

2шт.

15055R1

BOLT, crg. 7/16 x 1-3/4"

2шт.

271500

SOCKET

hex., 7/16"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

551654R1

WASHER

plain, 15/32 x 1-1/2 x 16 ga.

6шт.

9

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (YR. 53-)

2шт.

10

580184R1

BUSHING, upper snapping roll adjustment cam (YR. 53-)

2шт.

11

580182R11

BEARING

BRACKET, upper snapping roll lower right bearing w/bushing, assembly (Includes ref. no. 12) (YR. 53-)

1шт.

11

580183R11

BRACKET, upper snapping roll lower left bearing w/bushing, assembly (Includes ref. no. 12) (YR. 53-)

1шт.

17721R1

BOLT, mach., hex-hd., 1/2 x 4"

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

UA1805

BUSHING

BEARING, upper snapping roll lower (YR. 53-)

2шт.

13

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, lubrication, 67-1/2 degree elbow, 1/8 (YR. 53-)

2шт.

14

580180R1

CAM, upper snapping roll adjustment, right (YR. 53-)

1шт.

14

580181R1

CAM, upper snapping roll adjustment, left (YR. 53-)

1шт.

15

580187R91

SHAFT, upper snapping roll adjustment cam (Welded assembly) (YR. 53-57)

2шт.

578119R91

PIN, driv-lok, 3/8 x 1-7/8"

2шт.

183

WASHER, plain, 11/32" ID x 2" OD x 16 ga.

6шт.

15

587359R91

SHAFT, snapping roll adjustment cam (YR. 58-)

2шт.

584453R1

PIN

3/8

2шт.

16

580164R1

ANGLE, upper snapping roll control support (YR. 53-)

2шт.

15055R1

BOLT, crg. 7/16 x 1-3/4"

2шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, crg. 1/2 x 1-1/2"

4шт.

425-107

NUT,7/16"-14, G5

hex., 7/16"

2шт.

102637

NUT,1/2"-13, G5

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

17

577125R3

HOUSING, upper snapping roll adjustment cam (YR. 53-)

2шт.

102635

NUT,3/8"-16, G5

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12026R1

WASHER

plain, 17/32" I.D. x 1-1/4" x 16 ga.

2шт.

18

578440R1

STUD (YR. 53-)

2шт.
