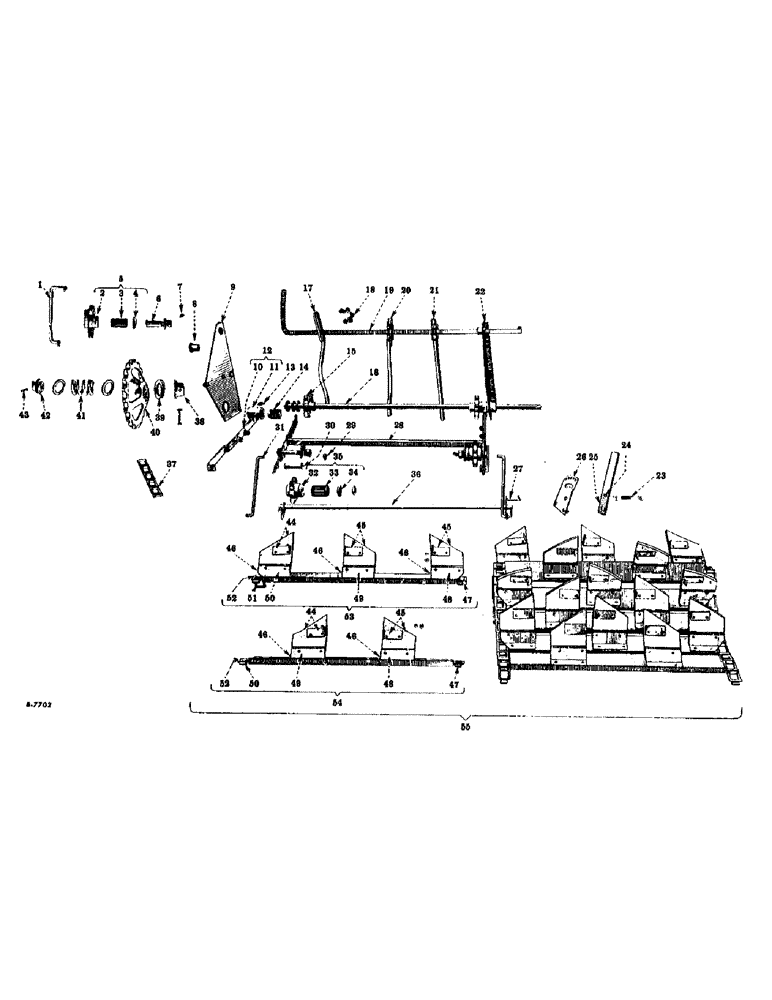

Запчасти Case IH 2-PR (071) - EAR FORWARDER BELT AND EAR STRAIGHTENERS (60) - PRODUCT FEEDING

1

578875R1

PITMAN, ear straightener (YR. 53-)

1шт.

432-1216

COTTER PIN,3/16" x 1"

PIN, cotter, 3/16 x 3/4"

2шт.

2

U1996

SPROCKET, tightening, ear forwarder belt drive chain (9-teeth) (Order U19152, ref, no. 5) (YR. 53-)

1шт.

3

ST1300

BEARING

roller, ear forwarder belt drive chain tightener sprocket (Implement type) (YR. 53-)

1шт.

4

M23538

WASHER

retaining, grease, ear forwarder belt drive chain tightener sprocket (YR. 53-)

1шт.

5

U19152

SPROCKET, tightening, ear forwarder belt drive chain, w/bearing and washer, assembly (9-teeth) (Includes ref. nos. 2, 3 and 4) (YR. 53-)

1шт.

6

MA14062

STUD, ear forwarder belt drive chain tightener (YR. 53-)

1шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (YR. 53-)

1шт.

8

U103

BOX, ear straightener rocker shaft (YR. 53-)

2шт.

9

UB19092

BRACKET, ear forwarder belt drive shaft box, rear (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

U19139

STRAP, tightening, ear forwarder belt (YR. 53-)

2шт.

13955R1

RIVET, ct-sk., 1/4 x 3/4"

4шт.

11

U1432

BOX, bearing, ear forwarder belt drive shaft (YR. 53-)

2шт.

12

U19153

STRAP, tightening, ear forwarder belt, w/box (Riveted assembly) (Includes ref. nos. 10 and 11) (YR. 53-)

2шт.

13

109350

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (YR. 53-)

2шт.

14

ST1300

BEARING

roller, ear forwarder belt drive shaft box (Implement type) (YR. 53-)

2шт.

15

U1984

SPROCKET, drive, ear forwarder belt (6-teeth) (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

PIN, std-hd., dld., 1/4 x 1-3/4"

2шт.

16

U19087

SHAFT, drive, ear forwarder belt (YR. 53-)

1шт.

615196R1

WASHER

plain, 29/32" I.D. x 1-3/4" O.D. x no. 11 ga.

16шт.

17

UA19086

ROD, straightening, ear, front, w/extension (Welded assembly) (YR. 53-)

1шт.

18

U18115

CLIP, ear, straightener operating bar (YR. 53-)

3шт.

13291R1

BOLT, machine, 3/8-16NC x 1-1/2"

6шт.

280136

NUT,3/8"-16, G8

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

6шт.

19

U19079

SHAFT, rocking, ear straightener (YR. 43-)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

20

UA19085

ROD, straightening, ear, middle, w/extension (Welded assembly) (YR. 53-)

1шт.

21

UA19084

ROD, straightening, ear, rear, w/extension (Welded assembly) (YR. 53-)

1шт.

22

UB19093

BRACKET, ear forwarder belt drive shaft box, front (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

397

SPRING, plunging, ear forwarder belt raise and lower lever (YR. (53-)

1шт.

24

U13485

PIN, stop, ear forwarder belt raise and lower lever (YR. 53-)

1шт.

25

U14626

LEVER, ear forwarder belt raise and lower, w/stop (Riveted assembly) (Includes ref. no. 24) (YR. 53-)

1шт.

26

U18238

QUADRANT, ear forwarder belt raise and lower (YR. 53-)

1шт.

14985R1

BOLT

carriage, 1/2-20NC x 1/2"

2шт.

13000R1

NUT, hex., 1/4-20NC

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

U14502

STUD, ear forwarder belt raise and lower lever crank (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

plain, 11/32" I.D. x 3/4" O.D. x no. 16 ga.

2шт.

28

UA19097

FRAME, tightening, ear forwarder belt, w/angle, bracket and bolt (Welded assembly) (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

280136

NUT,3/8"-16, G8

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

29

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (YR. 53-)

2шт.

30

U12802

SLEEVE, ear forwarder belt tightener sprocket (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

31

U19101

LINK hanging, ear forwarder belt tightener frame (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

32

U1264

SPROCKET, idler, ear forwarder belt (Order UX1264, ref. no. 35) (YR. 53-)

2шт.

33

ST1300

BEARING

roller, ear forwarder belt idler sprocket (Implement type) (YR. 53-)

2шт.

34

M23538

WASHER

retaining, grease, ear forwarder belt idler sprocket (YR. 53-)

2шт.

35

UX1264

SPROCKET, idler, ear forwarder belt, w/bearing and washer, assembly (Includes ref. nos. 32, 33 and 34) (YR. 53-)

2шт.

U17129

BOLT, machine, 5/8-11NC x 3-5/8"

2шт.

114820

NUT, hex, 5/8-11NC

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

VC649

WASHER

plain, 29/32" I.D. x 1-3/4" O.D. x no. 16 ga.

4шт.

36

UA14464

SHAFT, ear forwarder belt raise and lower, w/crank and stud (Riveted assembly) (YR. 53-)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

37

CHAIN, drive, ear forwarder belt and husk conveyor (Order 59 no. 55 steel links) (YR. 53-)

1шт.

38

H29656

HUB, ear forwarder belt slip clutch ratchet (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

L418C

HEADED PIN,5/16" x 2 3/8"

PIN, std-hd., dld., 5/16 x 2-3/8"

1шт.

39

U1288

RATCHET

ear forwarder drive slip clutch (YR. 53-)

1шт.

40

U6007

SPROCKET, ear forwarder drive slip clutch (20-teeth) (Driven) (Extended pitch) (YR. 53-54)

1шт.

40

579372R1

SPROCKET, ear forwarder drive slip clutch (22-T) (Extended pitch) (YR. 54)

1шт.

41

H39258

SPRING, ear forwarder drive slip clutch (YR. 53-)

1шт.

42

UA1241

NUT, ear forwarder belt drive slip clutch spring (YR. 53-)

1шт.

43

112092

PIN, straight, ear forwarder belt drive slip clutch spring nut (5/16 x 1-1/4") (YR. 53-)

1шт.

44

U21982

FLAP

ear forwarder belt, rear center and rear, w/spike (Riveted assembly) (YR. 53-)

12шт.

45

U21983

STIFFENER

FLAP, ear forwarder belt, front, front center and center, w/spike (Riveted assembly) (YR. 53-)

18шт.

46

UB11768

STRIP, riveting, ear forwarder belt flap (YR. 53-)

30шт.

47

55AIL

LINK, attaching, ear forwarder belt (YR. 53-)

12шт.

48

UA19088

SUPPORT, ear forwarder belt, flap, front (YR. 53-)

6шт.

49

UA19138

SUPPORT, ear forwarder belt, flap, center, center front and center rear (YR. 53-)

18шт.

50

UA19089

SUPPORT, ear forwarder belt flap, rear (YR. 53-)

6шт.

14811R1

RIVET, truss-hd., 1/4 x 9/16"

12шт.

51

NLS

NO LONGER SERVICED

LINK, plain, ear forwarder belt (YR. 53-)

24шт.

52

55AIR

LINK, attaching, ear forwarder belt (YR. 53-)

12шт.

53

U19487

SLAT, ear forwarder belt, flap, w/link, strip, spike and support (Riveted assembly) (3-flap) (YR. 53-)

6шт.

107172

X

RIVET, truss-hd., 1/4 x 5/8"

12шт.

191281

RIVET, truss-hd., 3/16 x 9/16"

36шт.

54

U19486

SLAT, ear forwarder belt flap, w/link, strip, spike and support (Riveted assembly) (2-flap) (YR. 53-)

6шт.

107171

X

RIVET, truss-hd., 1/4 x 1/2"

12шт.

191281

RIVET, truss-hd., 3/16 x 9/16"

24шт.

55

U19444

BELT, ear forwarder, w/link, strip, spike and support (Riveted assembly) (YR. 53-)

1шт.

107171

X

RIVET, truss-hd., 1/4 x 1/2"

12шт.

107172

X

RIVET, truss-hd., 1/4 x 5/8"

12шт.

191281

RIVET, truss-hd., 3/16 x 9/16"

60шт.

14811R1

RIVET, truss-hd., 1/4 x 9/16"

58шт.

587966R1

CLAMP, ear straightener bar clip (YR. 60-)

2шт.
