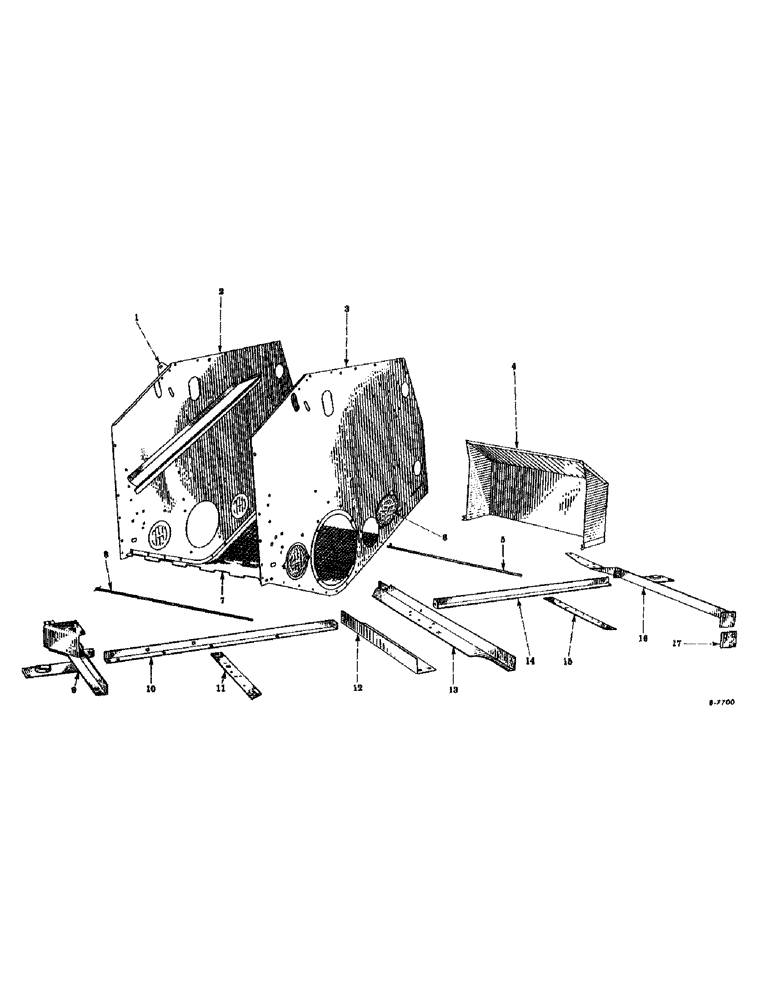

Запчасти Case IH 2-PR (068) - HUSKING UNIT (60) - PRODUCT FEEDING

1

U18144

BRACKET, ear forwarder belt raise and lower crank (YR. 53-)

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

114773

NUT, hex., 7/16-14NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

UC16081

SHEET, husking unit, side front, w/shield (Welded assembly) (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

7шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

14987R1

BOLT, carriage, 3/8-16NC x 1/2"

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

13237R1

BOLT, machine, 5/16-18NC x 1/2"

2шт.

13269R1

BOLT, machine, 5/16-18NC x 1/2"

2шт.

13269R1

BOLT, machine, 5/16-18NC x 1-1/4"

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

12шт.

280136

NUT,3/8"-16, G8

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

Q399

WASHER

plain, 11/32" I.D. x 1" O.D. x no. 16 ga.

1шт.

21769K

WASHER, plain, 13/32" I.D. x 3/4" O.D. x no. 16 ga.

1шт.

3

UB17475

SHEET, husking unit side rear, w/hand hole cover (Riveted assembly) (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

6шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

14987R1

BOLT, carriage, 3/8-16NC x 1/2"

2шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

3шт.

13237R1

BOLT, machine, 5/16-18NC x 1/2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

10шт.

280136

NUT,3/8"-16, G8

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

4

UA16439

HOOD, husk conveyor, w/stiffener (Welded assembly) (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

129-419

WING NUT,5/16"-18

NUT, wing, 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q399

WASHER

plain, 11/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

5

UA12470

ROD, hinge, husk conveyor top (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

6

551104R1

FLAP

PLATE, hand-hole cover (YR. 53-)

4шт.

14804R1

RIVET, truss-hd., 1/4 x 7/16"

4шт.

557109R1

WASHER

plain, 17/64" I.D. x 1/2" O.D. x no. 16 ga.

4шт.

7

578778R1

BOTTOM, husk conveyor (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

8

UA12470

ROD, supporting, husk conveyor, bottom (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

9

578869R91

POST, husking unit, front right, w/bracket, clip and extension (Welded assembly) (YR. 53-)

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

114773

NUT, hex., 7/16-14NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

plain, 15/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

10

578606R91

ANGLE, stiffening, husking unit side front, w/clip (Welded assembly) (YR. 53-)

1шт.

13245R1

BOLT

machine, 3/8-16NC x 3/4"

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

578602R1

STRAP, husking unit, center (YR. 53-)

1шт.

12

578864R1

POST, husking unit, left front (YR. 53-)

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

114773

NUT, hex., 7/16-14NC

4шт.

17427

SCREW, cap, regular-hd., 7/16-14NC x 1"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

13

578865R1

POST, husking unit, left rear (YR. 53-)

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

1шт.

280136

NUT,3/8"-16, G8

2шт.

17427R1

SCREW, cap, regular-hd., 7/16-14NC x 1"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

14

U16881

ANGLE, stiffening, husking unit side, rear, w/clip (Welded assembly) (YR. 53-)

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

114773

NUT, hex., 7/16-14NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

578602R1

STRAP, husking unit, center (YR. 53-)

1шт.

16

578870R91

POST, husking unit, rear right, w/bracket, clip, extension and plate (Welded assembly) (YR. 53-)

1шт.

15055R1

BOLT, carriage, 7/16-14NC x 1-3/4"

2шт.

114773

NUT, hex., 7/16-14NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

17

578776R1

PLATE, base, husking unit post (YR. 53-)

3шт.
