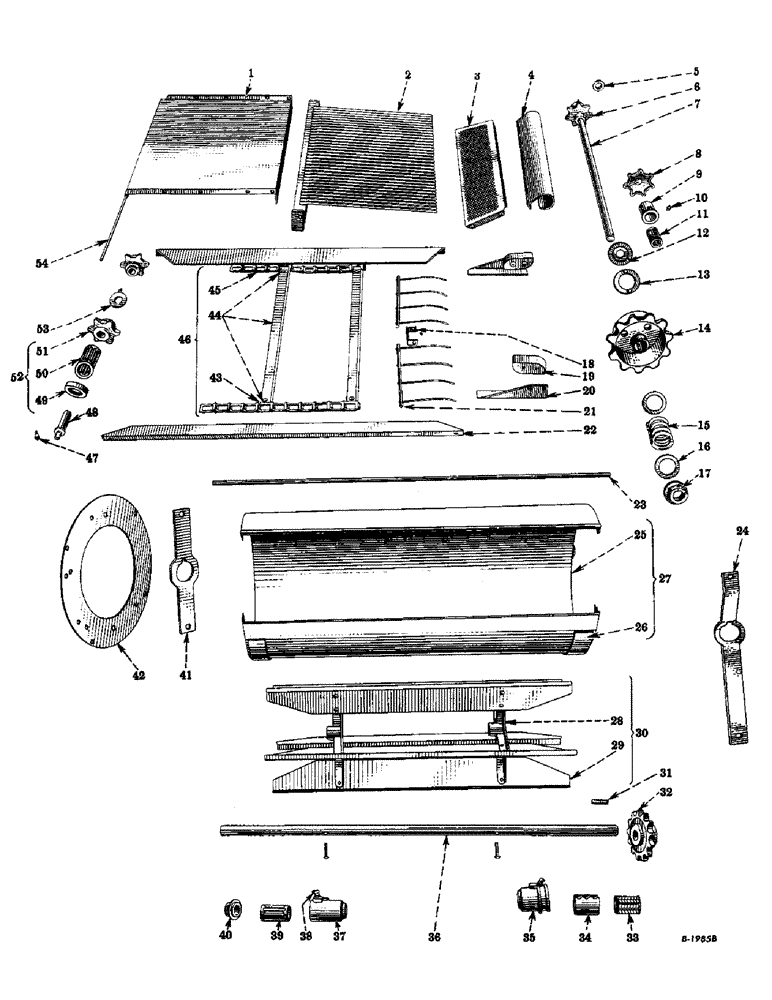

Запчасти Case IH 2-PR (064) - HUSK CONVEYOR AND CLEANING FAN (60) - PRODUCT FEEDING

1

U16071

TOP, husk conveyor (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

8шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

2

U16087

SIEVE, husk conveyor, w/angle, plate and rod (Welded assembly) (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

UA16070

SHIELD, husk conveyor drive shaft, lower (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

U16069

SHIELD, husk conveyor drive shaft, upper (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

5шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

5

U736

COLLAR, husk conveyor shaft (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

V4941/2

PIN

std-hd., dld., 5/16 x 2"

1шт.

6

U1855

SPROCKET, husk conveyor (7-teeth) (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

U5351

DOWEL

PIN, std-hd., dld., 5/16 x 1-5/16"

1шт.

7

U15805

SHAFT, drive, husk conveyor (YR. 53-)

1шт.

42585V

WASHER, plain, 1-1/32" I.D. x 2-1/4" O.D. x no. 16 ga.

6шт.

8

U1855

SPROCKET, husk conveyor (7-teeth) (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

U5351

DOWEL

PIN, std-hd., dld., 5/16 x 1-5/16"

1шт.

9

UA1245

BOX, bearing, husk conveyor worm shaft (YR. 53-)

2шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

2шт.

11

ST1313

BEARING, roller, husk conveyor shaft bearing box (Implement type) (YR. 53-)

2шт.

12

U1422

HUB, husk conveyor slip clutch ratchet (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q3536

PIN

std-hd., dld., 3/8 x 2-3/8"

1шт.

13

U1288

RATCHET

husk conveyor drive slip clutch (YR. 53-)

1шт.

14

578749R1

SPROCKET, husk conveyor drive slip clutch sprocket (11-teeth) (YR. 53-)

1шт.

12284R1

BOLT, carriage, dld., 5/16-18NC x 2-3/4"

3шт.

R328

NUT, horned, 5/16-18NC

3шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

3шт.

Q399

WASHER

plain, 11/32" I.D. x 1" O.D. x no. 16 ga.

3шт.

15

H39258

SPRING, husk conveyor drive slip clutch (YR. 53-)

1шт.

16

M34630

WASHER, husk conveyor shaft (1-25/32" I.D. x 2-1/2" O.D. x no. 16 ga.) (YR. 53-)

2шт.

17

M5510

NUT, husk conveyor shaft slip clutch (YR. 53-)

1шт.

18

U16265

BRACKET, husk retarder, inner (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

U15669

BLOCK, tightening, husk conveyor chain (YR. 53-)

2шт.

20

U16738

GUIDE, husk conveyor chain, left (YR. 53-)

1шт.

20

U16739

GUIDE, husk conveyor chain, right (YR. 53-)

1шт.

27480R1

CARRIAGE BOLT,5/16" x 2", Gr 5

BOLT, carriage, 5/16-18NC x 2"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

plain, 11/32" I.D. x 3/4" O.D. x no. 16 ga.

4шт.

21

U17312

RETARDER, husk, w/finger (Welded assembly) (YR. 53-)

2шт.

22

U15600

SHIELD, husk conveyor chain (YR. 53-)

2шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

6шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

23

U17573

ROD, stiffening, fan drum wrapper (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

24

578744R1

BRACKET, fan shaft, front (YR. 53-)

1шт.

25

UA17565

WRAPPER, fan drum (YR. 53-)

1шт.

26

U12960

STRAP, wearing, fan drum (YR. 53-)

2шт.

27

UA17773

WRAPPER, fan drum, w/strap (Riveted assembly) (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

6шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

5шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

12шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

28

575086R31

SPIDER, fan, w/spokes, assembly (YR. 53-)

2шт.

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

29

U15995

BLADE, fan (YR. 53-)

5шт.

191281

RIVET, truss-hd., 3/16 x 9/16"

20шт.

556980R1

WASHER

plain, 13/64" I.D. x 3/4" O.D. x no. 16 ga.

20шт.

30

UA17772

FAN, w/blade and spider (Riveted assembly) (YR. 53-)

1шт.

31

Q441

KEY,Gib, 5/16" Sq x 1 3/8" Tap

taper, fan sprocket (5/16 x 5/16 x 1-3/8") (YR. 53-60)

1шт.

31

555647R1

KEY, taper, fan sprocket (5/16 x 5/16 x 1-1/4") (YR. 61-)

1шт.

32

U1939

SPROCKET, fan (13-teeth) (YR. 53-54)

1шт.

32

579356R1

SPROCKET, cleaning fan (13-teeth) (YR. 54-56)

1шт.

32

U1939

SPROCKET, fan (13-teeth) (YR. 56-)

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

33

M44274

BEARING, roller, fan shaft box, front (YR. 53-)

1шт.

34

U17709

SHIM

RACE, split, outer, fan shaft box, front (YR. 53-)

1шт.

35

U1903

BOX, fan shaft, front (YR. 53-)

1шт.

36

U17564

SHAFT, fan (YR. 53-54)

1шт.

Q5084

WASHER, plain, 29/32" I.D. x 2-1/4" O.D. x no. 16 ga.

3шт.

36

579355R1

SHAFT, cleaning fan (YR. 54-56)

1шт.

36

U17564

SHAFT, fan (YR. 56-)

1шт.

37

U1512

BOX, fan shaft, rear (YR. 53-)

1шт.

38

109350

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (YR. 53-)

2шт.

39

ST1303

BEARING, roller, fan shaft box, rear (YR. 53-)

1шт.

40

U12111

COLLAR, fan shaft (YR. 53-)

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

41

U15665

BRACKET, fan shaft, rear (YR. 53-)

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

15545R1

BOLT (SPREADER)

BOLT, plow, no. 3, 3/8-16NC x 3/4"

2шт.

280136

NUT,3/8"-16, G8

2шт.

114774

NUT, hex., 1/2-13NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

42

U17243

RING, end, fan drum (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

3шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

43

45AIR

LINK, attaching, husk conveyor chain front and rear (YR. 53-)

12шт.

43

45AIL

LINK, attaching, husk conveyor chain front and rear (YR. 53-)

12шт.

44

U16715

SLAT, husk conveyor, w/attaching link (Riveted assembly) (YR. 53-)

12шт.

14804R1

RIVET, truss-hd., 1/4 x 7/16"

24шт.

45

45

LINK, plain, husk conveyor chain, front and rear (YR. 53-)

100шт.

46

U14042

CHAIN, husk conveyor, w/slats (Riveted assembly) (YR. 53-)

1шт.

47

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (YR. 53-)

1шт.

48

U10768

STUD, husk conveyor chain idler sprocket (YR. 53-)

2шт.

114820

NUT, hex., 5/8-11NC

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

49

M23538

WASHER

retaining, grease, husk conveyor chain idler sprocket (YR. 53-)

2шт.

50

ST1300

BEARING

roller, husk conveyor chain idler sprocket (Implement type) (YR. 53-)

2шт.

51

U1264

SPROCKET, idler, husk conveyor chain (6-teeth) (Order UX1264 - ref. no. 52) (YR. 53-)

2шт.

52

UX1264

SPROCKET, idler, husk conveyor chain, w/bearing, and washer, assembly (YR. 53-)

2шт.

53

MA3454

COLLAR, husk conveyor chain idler stud (YR. 53-)

2шт.

102894

SET SCREW

set, sq-hd., cup-pt., 3/8-16NC x 3/4"

2шт.

54

U12470

ROD, hinge, husk conveyor top (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
