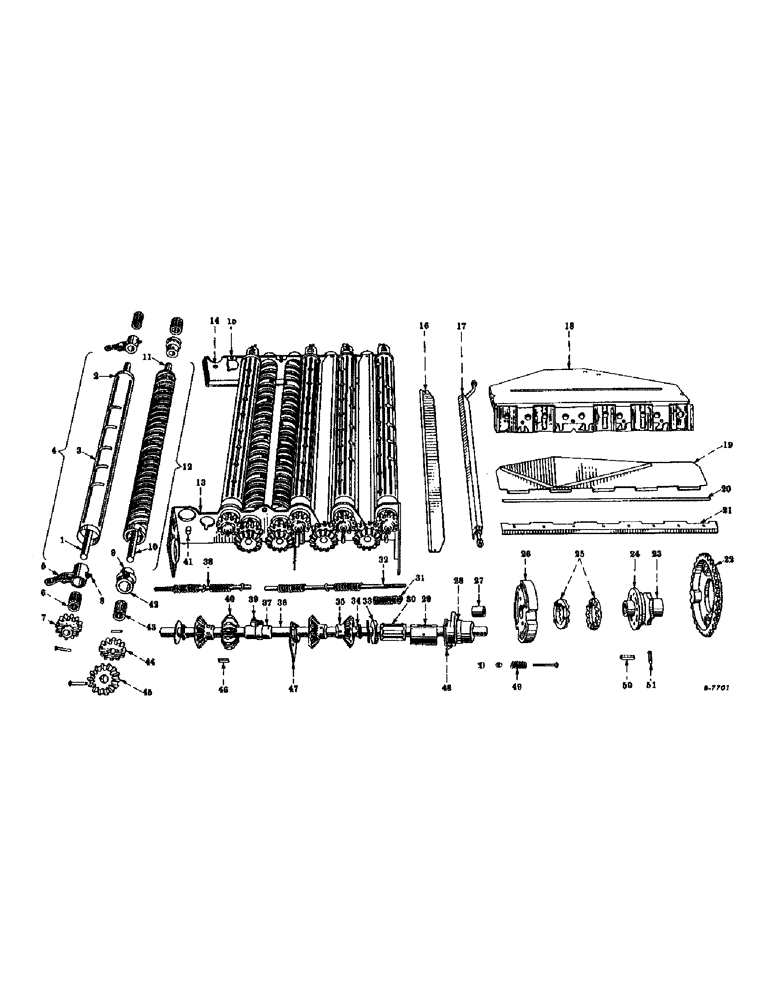

Запчасти Case IH 2-PR (060) - HUSKING ROLLS AND DRIVE (60) - PRODUCT FEEDING

1

578256R3

SHAFT, upper husking roll (YR. 53-)

5шт.

112075

PIN, straight, 1/4 x 1-1/2"

10шт.

576402R1

WASHER, plain, 29/32" I.D. x 1-3/4" O.D. x no. 22 ga.

20шт.

VC649

WASHER

plain, 29/32" I.D. x 1-3/4" O.D. x no. 16 ga.

20шт.

2

580127R1

CAP, upper husking roll, lower (YR. 56-)

5шт.

2

579988R1

CAP, upper husking roll, upper (YR. 56-)

5шт.

2

578257R1

CAP, upper husking roll (YR. 53-56)

10шт.

3

578255R92

ROLL, upper husking, assembly (YR. 53-)

5шт.

4

578425R92

ROLL, upper husking, w/cap, pins and shaft, assembly (YR. 53-)

5шт.

4

580665R91

ROLLER

ROLL, husking upper (Minnesota type) (YR. 56-)

5шт.

5

UA1659

BOX, upper husking roll (YR. 53-)

10шт.

6

ST1303

BEARING, roller, husking roll upper bearing box (Implement type) (YR. 53-)

10шт.

7

UB529

GEAR, spur, drive, husking roll (Driven) (12-teeth) (YR. 53-)

5шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

5шт.

1380S

PIN

std-hd., dld., 5/16 x 1-3/4"

5шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

10шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

10шт.

10

U13248

GUDGEON, lower husking roll, upper (YR. 53-)

5шт.

12933R1

RIVET, small oval-hd., 5/16 x 2-11/16"

5шт.

21967K

WASHER, plain, 29/32" I.D. x 1-5/16" O.D. x no. 16 ga.

10шт.

Q3691

WASHER, plain, 29/32" I.D.x 2" O.D. x no. 22 ga.

10шт.

Q3648

PIPE

plain, 29/32" I.D. x 2" O.D. x no. 16 ga.

20шт.

11

U13250

GUDGEON, lower husking roll, lower (YR. 53-)

5шт.

12933R1

RIVET, small, oval-hd., 5/16 x 2-11/16"

5шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

5шт.

Q3691

WASHER, plain, 29/32" I.D. x 2" O.D. x no. 22 ga.

10шт.

NLS

NO LONGER SERVICED

plain, 29/32" I.D. x 2" O.D. x no. 16 ga.

20шт.

12

U14035

ROLL, lower husking, front center and center, w/gudgeons (Riveted assembly) (YR. 53-)

3шт.

12

U14037

ROLL, lower husking, rear center and rear, w/gudgeons (Riveted assembly) (YR. 53-)

2шт.

13

578863R91

BRACKET, husking roll, upper, w/clip, stiffener, stud, stop and support (Riveted and welded assembly) (YR. 53-)

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

4шт.

15039R1

BOLT

carriage, 3/8-16NC x 1-1/2"

2шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

2шт.

280136

NUT,3/8"-16, G8

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

14

U17069

STUD, pivot, husking roll, lower (YR. 53-)

5шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

10шт.

15

U17481

BRACKET, husking roll, lower, w/clip, nut and stiffener (Welded assembly) (YR. 53-)

1шт.

16

U19276

GUIDE, husking roll ear, w/wire, assembly (YR. 53-)

3шт.

114380

NUT

square, 1/4-20NC

6шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

machine, slotted-fl-hd., 1/4-20NC x 1/2"

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

171598

SHIM,.003" Thk

SCREW, tapping, rd-hd., 1/4-20NC x 1/2"

3шт.

557109R1

WASHER

plain, 17/64" I.D. x 1/2" O.D. x no. 16 ga.

3шт.

17

U18868

DIVIDER, husking roll, w/support and sheet (Welded assembly) (YR. 53-)

1шт.

114773

NUT, hex., 7/16-14NC (Lower end)

1шт.

114774

NUT, hex., 1/2-13NC (Upper end)

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (Lower end) 7/16"

1шт.

18

578878R91

SHIELD, husking roll, lower end, w/extension and stiffener (Welded assembly) (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

3шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

5шт.

13237R1

BOLT, machine, 5/16-18NC x 1/2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

Q399

WASHER

plain, 11/32" I.D. x 1" O.D. x no. 16 ga.

1шт.

171598

SHIM,.003" Thk

SCREW, tapping, rd-hd. 1/4-20NC x 1/2"

4шт.

19

578962R91

SHIELD, husking roll, upper, w/divider (Welded assembly) (YR. 53-)

1шт.

20

578769R1

ROD, husking roll upper shield (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

21

578848R1

HINGE, husking roll upper shield (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

7шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

22

578751R1

SPROCKET, drive, husking unit (30-teeth) (YR. 53-)

1шт.

23

578955R1

SPROCKET, drive, husking conveyor and ear forwarder (6-teeth) (YR. 53-)

1шт.

24

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

1шт.

25

B12170

RATCHET,Clutch Slip, 94.49mm

husking roll drive slip clutch (YR. 53-)

2шт.

26

578956R1

RETAINER, husking unit drive slip clutch (YR. 53-)

1шт.

27

U13039

SPACER

STOP, husking roll front right bearing box (YR. 53-)

1шт.

28

UA1845

BOX, bearing, husking roll drive shaft (YR. 53-)

1шт.

29

B12273B

RACE, husking roll drive shaft bearing box (YR. 53-)

1шт.

30

ST127

BEARING, roller, husking roll drive shaft bearing box (Implement type) (YR. 53-)

1шт.

31

211

HUB

SPRING, tightening, husking roll (YR. 53-)

10шт.

32

U13218

ROD, spring, husking roll, fornt (YR. 53-)

2шт.

114774

NUT, hex., 1/2-13NC

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

7шт.

Q5035

WASHER

plain, 17/32" I.D. x 1" O.D. x no. 16 ga.

6шт.

33

U15773

WASHER, thrust, husk roll drive shaft bearing box (YR. 53-)

1шт.

34

M5951

WASHER, step, husking roll drive shaft (YR. 53-)

2шт.

35

UC748

GEAR, mitre, drive, husking roll (Driver) (YR. 53-)

3шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

3шт.

U5351

DOWEL

PIN, std-hd., dld., 5/16 x 1-15/16"

3шт.

36

578787R1

SHAFT, drive, husking roll (YR. 53-)

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

551181R1

WASHER, plain, 1-5/32" I.D. x 2-3/4" O.D. x no. 16 ga.

8шт.

37

UA1858

BOX, bearing, roll drive shaft, center, assembly (YR. 53-)

1шт.

132-347

COTTER PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.

38

U13217

ROD, spring, husking roll, rear (YR. 53-)

2шт.

114774

NUT, hex., 1/2-13NC

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

7шт.

Q5035

WASHER

plain, 17/32" I.D. x 1" O.D. x no. 16 ga.

6шт.

PO10535

WASHER

plain, 17/32" I.D. x 1-1/4" O.D. x no. 11 ga.

2шт.

39

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

1шт.

40

UA1341

GEAR, double, husking roll drive shaft (14-teeth) (YR. 53-)

1шт.

41

U10640

STUD, pivot, husking roll bracket, upper (YR. 53-)

5шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

5шт.

42

UB1617

BOX, lower husking roll (YR. 53-)

10шт.

43

ST1303

BEARING, roller, lower husking roll bearing box (Implement type) (YR. 53-)

10шт.

44

UD530

GEAR, spur, drive, husking roll (Driver) (12-teeth) (YR. 53-)

5шт.

12967R1

PIN, straight, sq-end., 5/16 x 1-5/16

5шт.

45

UB502

GEAR, mitre, drive, husking roll (Driven) (14-teeth) (YR. 53-)

5шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

5шт.

1380S

PIN

std-hd., dld., 5/16 x 1-3/4"

5шт.

46

Q42

KEY,5/16" Sq x 1 3/8", Par

straight, husking roll drive shaft double gear (5/16 x 5/16 x 1-3/8") (YR. 53-)

1шт.

47

578861R1

BRACKET, husking roll drive shaft center box (YR. 53-)

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

280136

NUT,3/8"-16, G8

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

48

109350

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (YR. 53-)

1шт.

49

U13670

SPRING, husking unit drive slip clutch (YR. 53-)

3шт.

50

192

KEY,5/16" Sq x 1 5/8", Par

straight, husk conveyor and ear forwarder drive sprocket (5/16 x 5/16 x 1-5/8") (YR. 53-)

1шт.

51

576482R1

LOCK PIN,5/16" x 2", Slotted

Husk conveyor and ear forwarder drive sprocket (YR. 53-) 5/16" x 2", Slotted

1шт.
