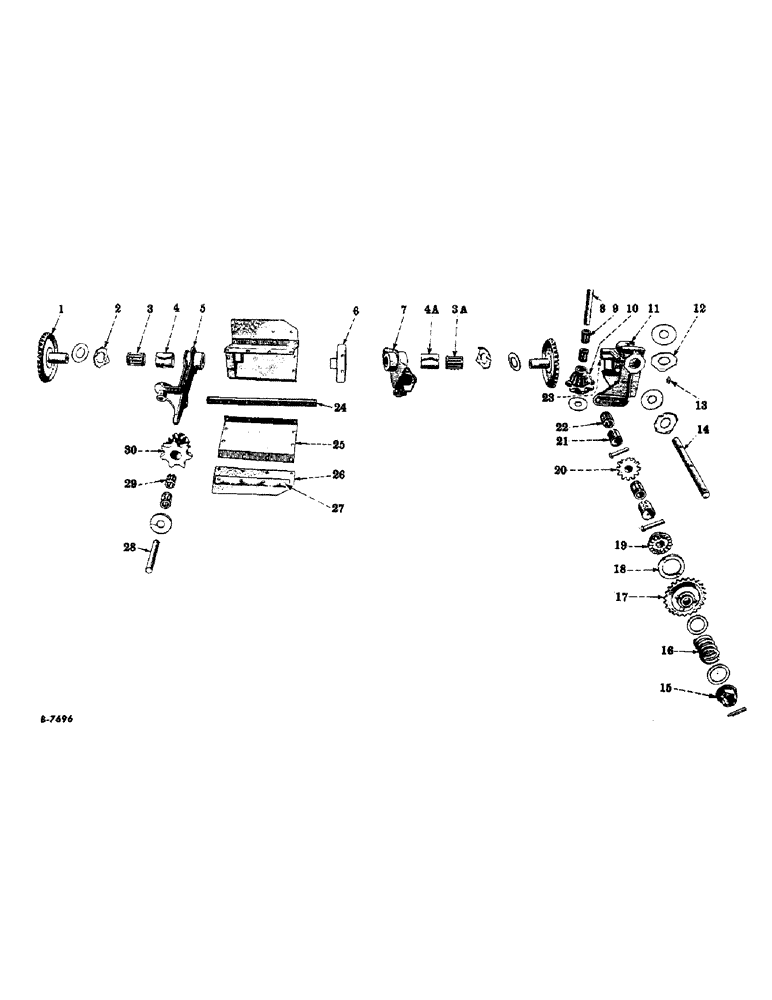

Запчасти Case IH 2-PR (047) - SNAPPING ROLL BEATER (60) - PRODUCT FEEDING

1

UA1825

GEAR, bevel, snapping roll beater shaft (31-teeth) (YR. 53-)

4шт.

U17356

WASHER, plain, 1-17/32" I.D. x 3" O.D. x no. 18 ga.

8шт.

U17933

WASHER, plain, 1-17/32" I.D. x 3" O.D. x no. 22 ga.

8шт.

2

U15623

WASHER, thrust, snapping roll beater shaft box (YR. 53-)

4шт.

3

ST192

TAPERED BEARING

BEARING, roller, double gatherer drive bevel gear bracket (YR. 53-60)

2шт.

3

ST1333

TAPERED BEARING

BEARING, roller, double gatherer drive bevel gear bracket (YR. 61-)

2шт.

3a

ST192

TAPERED BEARING

BEARING, roller, snapping roll beater bevel gear bracket left and right (Implement type) (YR. 53-60)

2шт.

3a

ST1333

TAPERED BEARING

BEARING, roller, snapping roll beater bevel gear bracket left and right (YR. 61-)

2шт.

4

579381R1

RACE, outer, double gatherer drive bevel gear bracket (YR. 53-)

2шт.

4a

579381R1

RACE, outer, snapping roll beater bevel gear bracket left and right (YR. 53-)

2шт.

5

U1854

BRACKET, double gatherer drive bevel gear (Uses lubrication fitting 109354) (YR. 53-)

2шт.

13270R1

BOLT, machine, 3/8-16NC x 1-1/4"

2шт.

280136

NUT,3/8"-16, G8

2шт.

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN, std-hd., dld., 1/4 x 1-5/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

UA1925

HEAD, snapping unit beater (YR. 53-)

4шт.

7

U1821

BRACKET, snapping roll beater bevel gear, left (Uses lubrication fitting 109461, 90 degree elbow, 1/8") (YR. 53-)

1шт.

7

U1822

BRACKET, snapping roll beater bevel gear, right (Uses lubrication fitting 109354, 90 degree elbow, 1/8") (YR. 53-)

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

carriage, 5/16-11NC x 1-1/4"

2шт.

15234R1

BOLT, carriage, 3/8-16NC x 4-1/2"

2шт.

15297R1

BOLT, carriage, 3/8-16NC x 5-1/2"

2шт.

15324R1

BOLT, carriage, 3/8-16NC x 6" (For U1821 bracket only)

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

280136

NUT,3/8"-16, G8

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

6шт.

8

U15705

SHAFT, single gatherer chain drive sprocket and pinion (YR. 53-)

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

VC649

WASHER

plain, 29/32" I.D. x 1-3/4" O.D. x no. 16 ga.

4шт.

U17355

WASHER, plain, 29/32" I.D. x 2-3/4" O.D. x no. 16 ga.

3шт.

U17934

WASHER, plain, 29/32" I.D. x 2-3/4" O.D. x no. 22 ga.

2шт.

575826R1

WASHER, plain, 29/32" I.D. x 1-5/16" O.D. x no. 22 ga.

2шт.

576402R1

WASHER, plain, 29/32" I.D. x 1-3/4" O.D. x no. 22 ga.

4шт.

9

ST1300

BEARING

roller, single gatherer chain drive sprocket and pinion (Implement type) (YR. 53-)

4шт.

10

U1819

SPROCKET AND PINION, drive, single gatherer chain (7-teeth sprocket and 12-teeth pinion) (YR. 53-60)

2шт.

10

628770R1

SPROCKET AND PINION, drive, single gatherer chain (8-T sprocket and 12-T pinion) (YR. 61-62)

2шт.

10

U1819

SPROCKET AND PINION, drive, single gatherer chain (7-T and 12-T) (YR. 63-)

2шт.

11

U1823

BRACKET, gatherer drive, left (YR. 53-)

1шт.

11

U1824

BRACKET, gatherer drive, right (YR. 53-)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

4шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

4шт.

280136

NUT,3/8"-16, G8

4шт.

114774

NUT, hex., 1/2-13NC

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

4шт.

12

U15773

WASHER, thrust, gatherer slip clutch sprocket shaft (YR. 53-)

4шт.

13

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, 90 degree elbow, 1/8" (YR. 53-)

4шт.

14

UA17023

SHAFT, gatherer slip clutch sprocket (YR. 53-)

2шт.

112093

RIM

PIN, straight, gatherer drive slip clutch spring nut, 5/16 x 1-3/8"

2шт.

42585V

WASHER, plain, 1-1/32" I.D. x 2-1/4" O.D. x no. 16 ga.

4шт.

551179R1

WASHER, plain, 1-1/32" I.D. x 2-1/4" O.D. x no. 22 ga.

4шт.

U17839

WASHER, plain, 1-1/32 I.D. x 3" O.D. x no. 20 ga.

4шт.

U17354

WASHER, plain, 1-1/32 I.D. x 3" O.D. x no. 16 ga.

6шт.

M34630

WASHER, plain, 1-25/32 I.D. x 2-1/2" O.D. x no. 16 ga.

10шт.

15

M5510

NUT, gatherer drive slip clutch spring (YR. 53-)

2шт.

16

H39258

SPRING, gatherer drive slip clutch (YR. 53-)

2шт.

17

U1912

SPROCKET, gatherer drive slip clutch (23-teeth) (YR. 53-)

2шт.

18

U1288

RATCHET

gatherer drive slip clutch (YR. 53-)

2шт.

19

U1422

HUB, gatherer drive slip clutch ratchet (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q3536

PIN

std-hd., dld., 3/8 x 2-3/8"

2шт.

20

UA1818

PINION, bevel double, drive, gatherer (12-teeth) (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q850

PIN

std-hd., dld., 3/8 x 1-7/8"

2шт.

21

552446R1

RACE, outer, gatherer drive bracket, left and right (YR. 53-)

4шт.

22

ST1307

BEARING

roller, gatherer drive bracket, left and right (Implement type)

1шт.

23

U15591

PIN, dowel, gatherer drive bracket (YR. 53-)

4шт.

24

U15624

SHAFT, snapping roll beater (YR. 53-)

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

615240R1

WASHER

plain, 1-3/32" I.D. x 1-1/2" O.D. x no. 16 ga.

14шт.

25

U15625

SUPPORT, snapping roll beater flap (YR. 53-)

6шт.

13244R1

NUT

BOLT, machine, 5/16-18NC x 3/4"

24шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

48шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

72шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

72шт.

26

578313R91

FLAP, snapping roll beater, right, w/stiffener (Riveted assembly) (YR. 53-)

3шт.

26

578314R91

FLAP

snapping roll beater, left, w/stiffener (Riveted assembly) (YR. 53-)

3шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

U14324

STIFFENER, snapping unit beater flap (YR. 53-)

6шт.

191281

RIVET, truss-hd., 3/16 x 9/16"

24шт.

556980R1

WASHER

plain, 13/64" I.D. x 3/4" O.D. x no. 16 ga.

24шт.

28

U15705

SHAFT, double gatherer chain drive sprocket and pinion (YR. 53-)

1шт.

U17355

WASHER, plain, 29/32" I.D. x 2-3/4" O.D. x no. 16 ga.

1шт.

U17934

WASHER, plain, 29/32" I.D. x 2-3/4" O.D. x no. 22 ga.

2шт.

VC649

WASHER

plain, 29/32" I.D. x 1-3/4" O.D. x no. 16 ga.

4шт.

576402R1

WASHER, plain, 29/32" I.D. x 1-3/4" O.D. x no. 22 ga.

2шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no.16 ga.

2шт.

575826R1

WASHER, plain, 29/32" I.D. x 1-5/16" O.D. x no. 22 ga.

2шт.

29

ST1300

BEARING

roller, double gatherer drive sprocket and pinion (Implement type) (YR. 53-)

4шт.

30

U1913

SPROCKET AND PINION, drive, double, gatherer (7-teeth sprocket and 12-teeth pinion) (YR. 53-)

2шт.

CHAIN, roller, drive, snapping roll beater and gatherer drive (3/4" pitch) (Use 49 links of 1793D stock chain, 1 connecting link 1317D and 2 offset link 1318D) (YR. 53-61), (parts are not illustrated)

2шт.

CHAIN, roller, drive, snapping roll beater and gatherer drive (3/4" pitch) (Use 49 links from a 10 ft. roll marked 631632R91, 1 connecting link 574532R91 and 2 offset links 612612R91) (YR. 62-), (parts are not illustrated)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (In double gatherer drive bevel gear bracket) (In gatherer drive brackets) (In snapping roll beater bevel gear bracket) (YR. 53-), (parts are not illustrated)

8шт.
