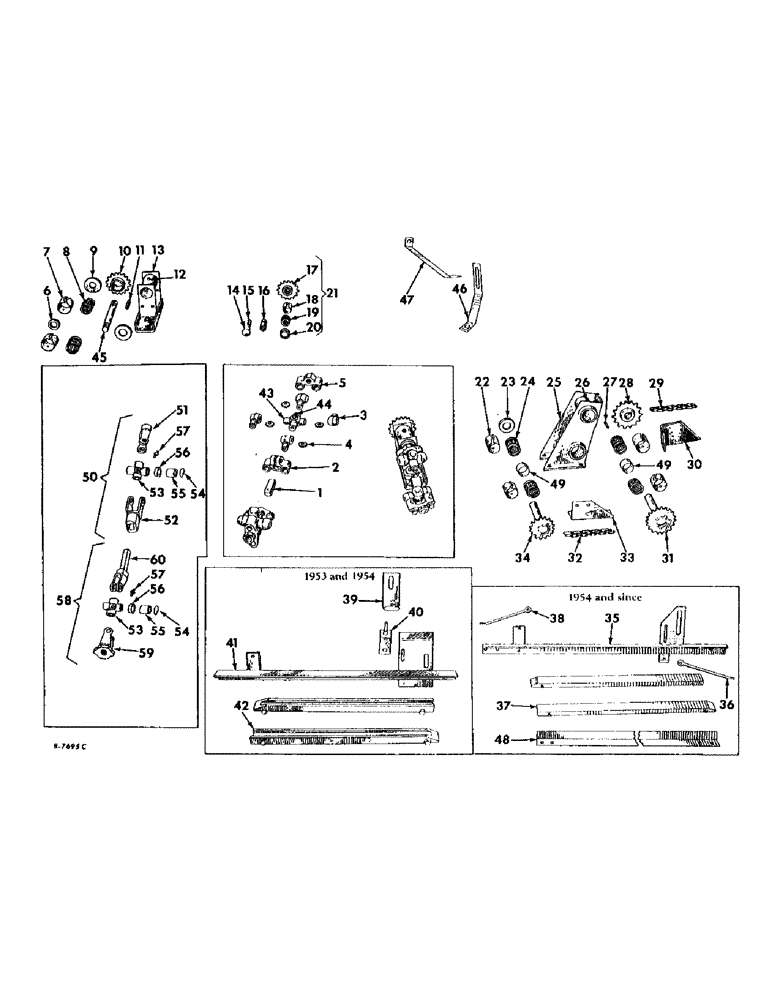

Запчасти Case IH 2-PR (037) - SNAPPING UNIT DRIVE (60) - PRODUCT FEEDING

1

U16817

SHAFT, connecting, snapping roll drive knuckle (YR. 53-)

2шт.

2

UB1631

KNUCKLE, snapping roll drive connecting shaft (YR. 53-)

4шт.

13293R1

BOLT

machine, 1/2-13NC x 1-1/2"

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

8шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

BB2072

SWIVEL, knuckle (YR. 53-)

16шт.

4

BA12186

WASHER, thrust, knuckle end (Thick) (YR. 53-)

48шт.

4

BA12187

WASHER, thrust, knuckle end (Thin) (YR. 53-)

16шт.

5

B2071

KNUCKLE, drive, snapping roll, left (Left hand thread) (YR. 53-)

2шт.

5

B2077

KNUCKLE, drive, snapping roll, right (Right hand thread) (YR. 53-)

2шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

6

21823KA

WASHER, snapping roll drive shaft bearing (YR. 53-58)

4шт.

6

M81592

SPACER, snapping roll box stop (YR. 58-)

4шт.

7

U14479

RACE, snapping roll drive bearing bracket (YR. 53-54)

4шт.

7

579364R1

BEARING

RACE, snapping unit drive bearing outer (YR. 54-)

4шт.

7

581877R1

RACE, snapping unit drive bearing outer (YR. 58-)

4шт.

8

ST2503

BEARING, roller, snapping roll drive bearing bracket (Implement type) (YR. 53-54)

4шт.

9

U14855

WASHER, snapping roll drive knuckle (YR. 53-)

2шт.

10

UA1962

SPROCKET, drive, snapping roll (17-teeth) (YR. 53-)

2шт.

10

UA1977

SPROCKET, drive, snapping roll (16-teeth) (Special high speed) (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, std-hd., dld. 5/16 x 1-15/16"

2шт.

11

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

taper, snapping roll drive sprocket (5/16 x 5/16 x 1-1/2") (YR. 53-)

2шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (YR. 53-) 1/8"-27 x .66 lg

2шт.

13

578886R91

BRACKET, snapping roll drive bearing, w/box and plate, right (Welded assembly) (YR. 56-)

1шт.

13

580151R91

BRACKET, snapping roll drive bearing, w/box and plate, left (Welded assembly) (YR. 56-)

1шт.

13

578886R91

BRACKET, snapping roll drive bearing, w/box and plate (Welded assembly) (YR. 53-56)

2шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, carriage, 3/8-16NC x 1-1/4"

2шт.

13245R1

BOLT

carriage, 3/8-16NC x 3/4"

5шт.

13255R1

BOLT, carriage, 3/8-16NC x 1"

2шт.

280136

NUT,3/8"-16, G8

13шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

13шт.

14

23601K

BOLT,5/8" - 11 x 4"

snapping roll drive chain tightener sprocket (Carriage bolt dld., 5/8-11NC x 4") (YR. 53-)

1шт.

114820

NUT, hex., 5/8-11NC

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

1шт.

130354H

EXCITER

WASHER, plain, 21/32" I.D. x 2" O.D. x no. 7 ga.

2шт.

Q1059

WASHER, plain, 21/32" sq. x 1-1/4" O.D. x no. 12 ga.

1шт.

16

U12802

SLEEVE, snapping roll drive chain tightener sprocket (YR. 53-)

1шт.

17

575188R2

SPROCKET, tightening, snapping roll drive chain (Order 575188R21, ref. no. 12) (YR. 53-)

1шт.

18

UA14956

RACE

outer, snapping roll drive chain tightener sprocket (YR. 53-)

1шт.

19

28044K

BEARING, roller, snapping roll drive chain tightener sprocket (Implement type) (YR. 53-)

1шт.

20

M23538

WASHER

retaining, grease, snapping roll drive chain tightener sprocket (YR. 53-)

1шт.

21

575188R21

SPROCKET, tightening, snapping roll drive chain, w/bearing, race and washer, assembly (YR. 53-)

1шт.

22

579364R1

BEARING

RACE, snapping unit drive jackshaft bearing bracket (YR. 53-)

4шт.

23

M5403

COLLAR, snapping unit drive idler shaft (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

V4941/2

PIN

std-hd., dld., 5/16 x 2"

1шт.

24

ST108

BEARING, roller, snapping unit drive jackshaft bearing bracket (YR. 53-)

4шт.

25

578846R92

BRACKET, bearing, snapping unit drive jackshaft, w/box and plate (Welded assembly) (YR. 53-)

1шт.

26

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (YR. 53-) 1/8"-27 x .66 lg

2шт.

27

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

gib, snapping unit drive jackshaft sprocket (5/16 x 5/16 x 1-1/2") (YR. 53-)

1шт.

28

578968R91

SPROCKET, snapping unit drive jackshaft, w/hub (Welded assembly) (15-teeth) (YR. 53-)

1шт.

29

CHAIN, drive, roller, snapping roll (Consists of 151 links of 3/4" pitch roller chain, including one offset and two connecting links) (Order three 1340DA chain (Contains 50 links) and one 1318D offset connecting link) (YR. 53-)

1шт.

29

CHAIN, drive, roller, snapping unit (3/4" pitch) (Use 159 links from a 10-ft. roll of 1793D stock chain, 1 connecting link 1317D and 2 offset link 1318D) (YR. 54-61)

1шт.

29

CHAIN, drive, roller, snapping unit (3/4" pitch) (Use 159 links from a 10-ft. roll marked 631362R91, 1 connecting link 574532R91 and 2 offset links 612612R91) (YR. 62-)

2шт.

30

578957R1

CLIP, bolting, snapping unit drive jackshaft bearing bracket (YR. 53-)

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

6шт.

114773

NUT, hex., 7/16-14NC

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

W6652

WASHER

plain, 15/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

551177R1

WASHER

plain, 21/32" I.D. x 1-1/4" O.D. x no. 16 ga.

1шт.

12258R1

WASHER

plain, 21/32" I.D. x 1-1/4" O.D. x no. 11 ga.

1шт.

31

578796R91

SPROCKET, snapping unit drive jackshaft (Welded assembly) (19-teeth) (Driver) (YR. 53-)

1шт.

U15958

WASHER, plain, 1-5/32" I.D. x 3" O.D. x no. 11 ga.

1шт.

32

CHAIN, drive, roller main (Use 1 10-ft. roll of 1794D stock chain, 11 links from 10-ft. roll of 654437R91 stock chain, 1 connecting link 654438R91, 2 offset links 654439R91) (YR. 53-)

1шт.

33

578885R1

SUPPORT, snapping roll drive bearing bracket (YR. 53-)

1шт.

34

578873R91

SPROCKET, idler, snapping unit drive chain, w/jackshaft (Welded assembly) (16-teeth) (YR. 53-)

1шт.

551181R1

WASHER, plain, 1-5/32" I.D. x 2-3/4" O.D. x no. 16 ga.

2шт.

U15958

WASHER, plain, 1-5/32" I.D. x 3" O.D. x no. 11 ga.

2шт.

35

579361R91

TIE, snapping unit drive bearing bracket (Welded assembly) (YR. 54-)

1шт.

36

579365R1

SUPPORT, snapping unit drive bearing bracket, left (YR. 54-)

1шт.

13270R1

BOLT, machine, 3/8-16NC x 1-1/4"

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

579368R1

GUIDE, snapping roll drive chain (Wood) (YR. 54-)

2шт.

38

579366R1

SUPPORT, snapping unit drive bearing bracket, right (YR. 54-)

1шт.

13270R1

BOLT, machine, 3/8-16NC x 1-1/4"

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

39

578798R1

SUPPORT, snapping roll drive chain tightener bracket (YR. 53-54)

1шт.

40

578797R1

BRACKET, tightening, snapping roll drive chain (YR. 53-54)

1шт.

14995R1

BOLT

carriage, 5/16-18NC x 3/4"

2шт.

48833KA

BOLT, carriage, 3/8-16NC x 3-1/4"

1шт.

280136

NUT,3/8"-16, G8

hex., 5/16-18NC

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

41

578840R91

TIE, snapping roll drive bearing bracket, w/plate and strap (Welded assembly) (YR. 53-54)

1шт.

42

578899R1

GUIDE, snapping roll drive chain (Wood) (YR. 53-54)

2шт.

15141R1

BOLT, carriage, 5/16-18NC x 3"

3шт.

15157R1

BOLT (SPREADER)

BOLT, carriage, 5/16-18NC x 3-1/4"

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q399

WASHER

plain, 11/32" I.D. x 1" O.D. x no. 16 ga.

1шт.

43

BC2070

KNUCKLE, center (YR. 53-)

4шт.

44

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

4шт.

45

578784R1

SHAFT, drive, snapping roll, left (YR. 53-)

1шт.

45

578785R1

SHAFT, drive, snapping roll, right (YR. 53-)

1шт.

551181R1

WASHER, plain, 1-5/32" I.D. x 2-3/4" O.D. x no. 16 ga.

10шт.

U15958

WASHER, plain, 1-5/32" I.D. x 3" O.D. x no. 11 ga.

4шт.

46

580157R1

SUPPORT, snapping unit drive tightener sprocket (YR. 55-)

1шт.

47

581878R1

BRACE, snapping unit jackshaft bearing bracket (YR. 58-)

1шт.

48

578790R1

TIE, snapping roll drive bearing bracket (YR. 58-)

1шт.

49

581879R1

SPACER, snapping unit drive jackshaft bearing bracket (YR. 58-)

2шт.

50

585879R91

JOINT, snapping unit drive front universal R.H. (R.H. threads) (Blood Bros.) (Optional with 585886R91, mechanics) (YR. 59-)

1шт.

50

585886R91

JOINT, snapping unit drive front universal R.H. (R.H. threads) (Mechanics) (Optional with 585879R91, Blood Bros.) (YR. 59-)

1шт.

50

585894R91

JOINT, snapping unit drive front universal L.H. (L.H. threads) (Blood Bros.) (Optional with 585892R91, mechanics) (YR. 59-)

1шт.

50

585892R91

JOINT, snapping unit drive front universal L.H. (L.H. threads) (Mechanics) (Optional with 585894R91, Blood Bros.) (YR. 59-)

1шт.

51

585880R1

YOKE, front, snapping unit drive front universal joint R.H (Blood Bros.) (YR. 59-)

1шт.

51

585888R1

YOKE, front, snapping unit drive front universal joint R.H. (Mechanics) (YR. 59-)

1шт.

51

580036R91

YOKE, front, snapping unit drive front universal joint L.H. (Blood Bros.) (YR. 59-)

1шт.

51

U22067

YOKE, front, snapping unit drive front universal joint L.H. (Mechanics) (YR. 59-)

1шт.

51

585881R1

YOKE, rear, snapping unit drive front universal joint (Blood Bros.) (1 used left, 1 used right) (YR. 59-)

2шт.

52

585887R1

YOKE, rear, snapping unit drive front universal joint (Mechanics) (1 used left, 1 used right) (YR. 59-)

2шт.

53

659262R91

U-JOINT SPIDER

CROSS, center, w/bearing, assembly (Blood Bros.) (YR. 59-)

4шт.

53

656226R91

U-JOINT SPIDER

CROSS, center, w/bearing, assembly (Mechanics) (YR. 59-)

4шт.

54

661656R1

SEAL, oil cork (Blood Bros.) (YR. 59-)

16шт.

54

M32994

SEAL, oil cork (Mechanics) (YR. 59-)

16шт.

55

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

needle cup, assembly (Blood Bros) (YR. 59-)

16шт.

55

M32995

RETAINER

BEARING, needle cup, assembly (Mechanics) (YR. 59-)

16шт.

56

661657R1

RING

SNAP RING (Blood Bros.) (YR. 59-)

16шт.

56

M32991

SNAP RING (Mechanics) (YR. 59-)

16шт.

57

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 1/8"-67-1/2 degree elbow (YR. 59-)

4шт.

58

585882R91

JOINT, snapping unit drive rear universal R.H. (R.H. threads) (Blood Bros.) (Optional with 585889R91, mechanics) (YR. 59-)

1шт.

58

585889R91

JOINT, snapping unit drive rear universal R.H. (R.H. threads) (Mechanics) (Optional with 585882R91, mechanics) (YR. 59-)

1шт.

58

585895R91

JOINT, snapping unit drive rear universal L.H. (L.H. threads) (Blood Bros.) (Optional with 585893R91, Blood Bros.) (YR. 59-)

1шт.

58

585893R91

JOINT, snapping unit drive rear universal L.H. (L.H. threads) (Mechanics) (Optional with 585895R91, Blood Bros.) (YR. 59-)

1шт.

59

585880R91

YOKE, rear snapping unit drive rear universal joint R.H. (R.H. threads) (Blood Bros.) (YR. 59-)

1шт.

59

585888R1

YOKE, rear snapping unit drive rear universal joint R.H. (R.H. threads) (Mechanics) (YR. 59-)

1шт.

59

580036R1

YOKE, rear snapping unit drive rear universal joint L.H. (L.H. threads) (Blood Bros.) (YR. 59-)

1шт.

59

U22067

YOKE, rear snapping unit drive rear universal joint L.H. (L.H. threads) (Mechanics) (YR. 59-)

1шт.

60

585883R91

YOKE, front snapping unit drive rear universal joint (Blood Bros.) (1 used left, 1 used right) (YR. 59-)

2шт.

60

585890R91

YOKE, front snapping unit drive rear universal joint (Mechanics) (1 used left, 1 used right) (YR. 59-)

2шт.
