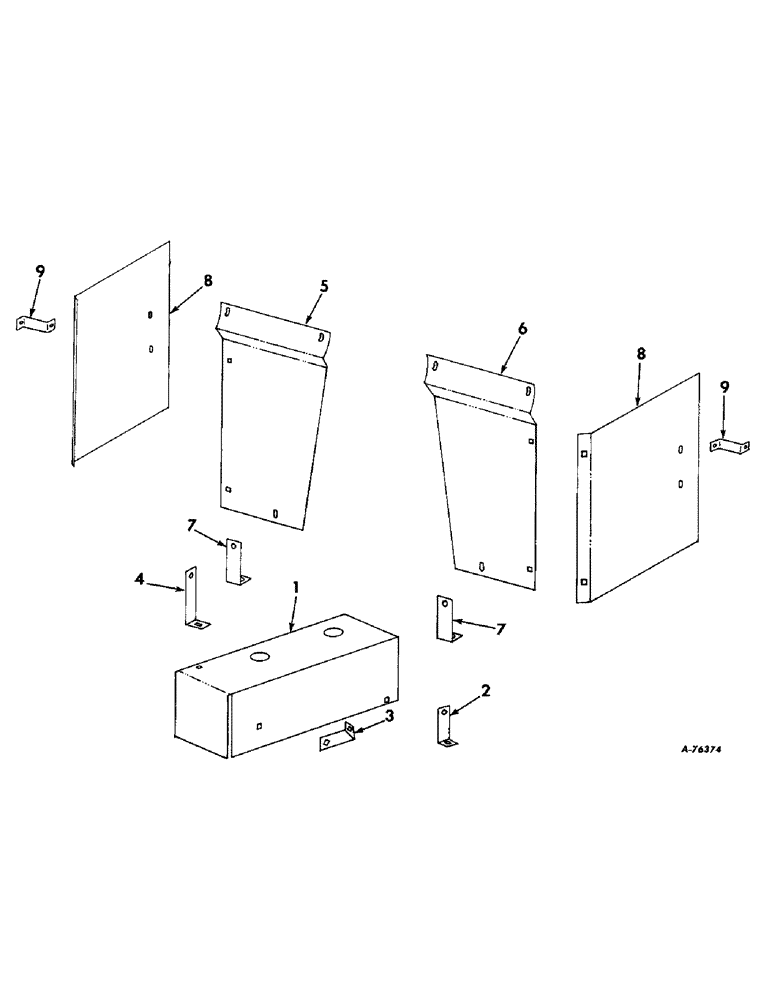

Запчасти Case IH 2-PR (036A) - SAFETY SHIELDS (60) - PRODUCT FEEDING

1

161135C1

SHIELD, snapping roll drive (YR. 67-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

161136C1

CLIP, snapping roll drive shield front (YR. 67-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

161137C1

CLIP, snapping roll drive shield rear (YR. 67-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

161138C1

CLIP, snapping roll drive shield upper (YR. 67-)

1шт.

14994

BOLT, carriage, 5/16 x 3/4"

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

161132C1

SHIELD, gatherer clutch sprocket L.H. (YR. 67-)

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

whiz lock, 5/16"

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slt-truss-hd whiz lock, 5/16 x 3/4"

3шт.

6

161133C1

SHIELD, gatherer clutch sprocket R.H. (YR. 67-)

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

whiz lock, 5/16"

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slt-truss-hd whiz lock, 5/16 x 3/4"

3шт.

7

161134C1

CLIP, gatherer clutch sprocket shield (YR. 67-)

2шт.

8

161304C1

SHIELD, gatherer clutch extension (YR. 67-)

2шт.

14986R1

BOLT, carriage, 5/16 x 1/2"

4шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

161305C1

CLIP, gatherer clutch extension shield (YR. 67-)

2шт.
