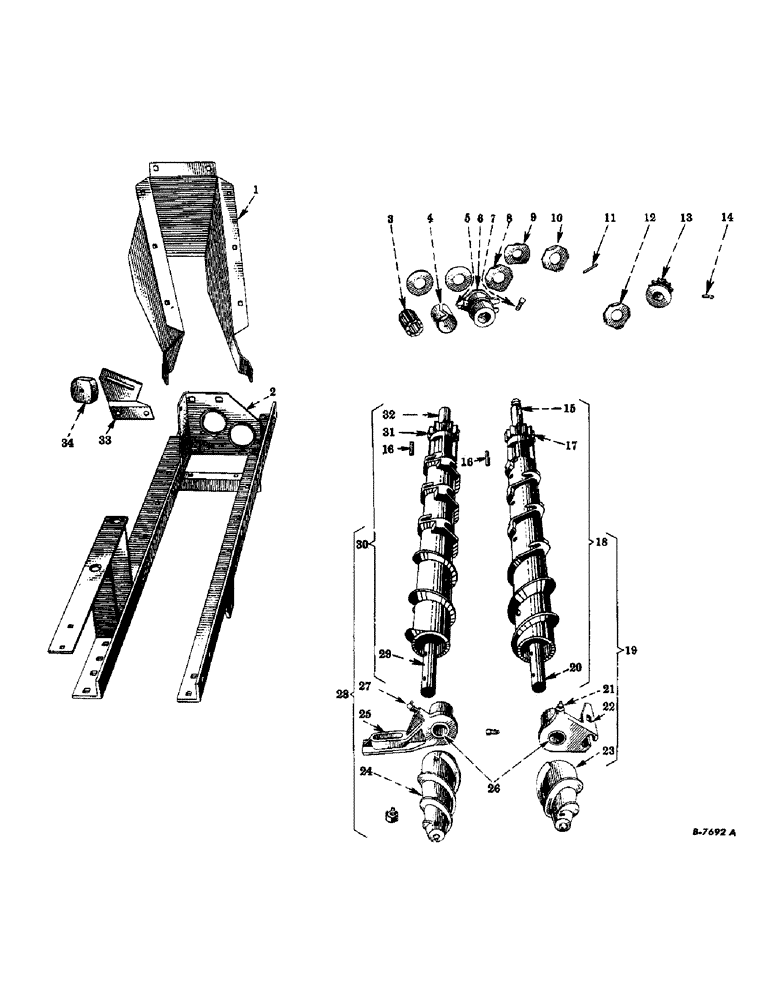

Запчасти Case IH 2-PR (032) - SNAPPING ROLLS (60) - PRODUCT FEEDING

1

UA17696

SHIELD, trash, snapping unit, left (YR. 53-)

1шт.

1

UA16957

SHIELD, trash, snapping unit, right (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

15107R1

BOLT

carriage, 5/16-18NC x 2-1/2"

6шт.

15043R1

BOLT, carriage, 5/8-11NC x 1-1/2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

10шт.

114820

NUT, hex., 5/18-11NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

UA15737

ANGLE, gatherer, right, w/brace, bracket, stiffener and strut (Welded assembly) (YR. 53-)

1шт.

2

U15738

ANGLE, gatherer, left, w/brace, bracket, stiffener and strut (Welded assembly) (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

4шт.

15222R1

BOLT, carriage, 5/8-11NC x 1-1/2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

6шт.

114774

NUT, hex., 1/2-13NC

8шт.

114380

NUT

5/8-11NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

152538C91

BEARING, NEEDLE

BEARING, roller, snapping roll upper box (Implement type) (YR. 53-)

4шт.

4

552437R1

RACE, outer, snapping roll upper bearing box (YR. 53-)

4шт.

5

109350

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (Used in upper snapping roll box, upper) (YR. 53-)

2шт.

5

271282

SCREW

lubrication, 30 degree elbow, 1/8" (Used in lower snapping roll box, upper) (YR. 53-)

2шт.

6

UA1852

BOX, snapping roll, upper (YR. 53-)

4шт.

7

526712R1

BUSHING

STOP, snapping roll box (YR. 53-)

4шт.

13269R1

BOLT, machine, 5/16-18NC x 1-1/4"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q399

WASHER

plain, 11/32" I.D. x 1" O.D. x no. 16 ga.

4шт.

8

U15773

WASHER, thrust, upper snapping roll upper bearing box (YR. 53-)

4шт.

9

UB1853

COLLAR, upper snapping roll upper gudgeon (YR. 53-)

2шт.

10

U18840

WASHER, thrust, upper snapping roll upper gudgeon collar (YR. 53-)

2шт.

11

U18183

PIN, upper snapping roll upper gudgeon collar (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

12

U18840

WASHER, thrust, gatherer drive sprocket (YR. 53-)

2шт.

13

U1985

SPROCKET, drive, gatherer (11-teeth) (YR. 53-)

2шт.

14

197

KEY, machine, gatherer drive sprocket (1/4 x 5/16 x 1-1/4") (YR. 53-)

2шт.

15

U15817

GUDGEON, lower snapping roll upper, right (Right hand thread) (See U1920 in "snapping unit drive" section for coupler) (YR. 53-)

1шт.

15

U15818

GUDGEON, lower snapping roll upper, left (Left hand thread) (See U1919 in "snapping unit drive" section for coupler) (YR. 53-)

1шт.

615227R1

WASHER

plain, 1-1/32" I.D. x 1-3/4" O.D. x no. 11 ga.

4шт.

Q5004

DISC,32.5mm ID x 57mm OD x 1.5mm Thk

WASHER, plain, 1-9/32" I.D. x 2-1/4" O.D. x no. 16 ga.

12шт.

U15774

WASHER, plain, 1-9/32" I.D. x 3" O.D. x no. 18 ga.

2шт.

U15775

WASHER, plain, 1-9/32" I.D. x 3" O.D. x no. 16 ga.

2шт.

16

585691R1

KEY, tapered, snapping roll spur gear (5/16 x 5/16 x 1-3/8") (Drilled) (YR. 53-)

4шт.

17

UB1839

GEAR, spur, snapping roll (13-teeth) (YR. 53-)

2шт.

18

U19404

ROLL, snapping, lower left, w/gudgeon assembly (Less point) (Includes ref. nos. 15, 16, 17 and 20) (Shallow pocket) (Grey iron) (YR. 53-)

1шт.

18

U19406

ROLL, snapping, lower right, w/gudgeon assembly (Less point) (Includes ref. nos. 15, 16, 17 and 20) (Shallow pocket) (Grey iron) (YR. 53-)

1шт.

18

U17267

ROLL, snapping, lower left, w/gudgeon, assembly (Less point) (Consists of ref. nos. 15, 16, 17 and 20) (Deep pocket) (Grey iron) (YR. 57-)

1шт.

18

U17268

ROLL, snapping, lower right, w/gudgeon, assembly (Less point) (Consists of ref. nos. 15, 16, 17 and 20) (Deep pocket) (Grey iron) (Yr. 57-)

1шт.

18

580795R91

ROLL, snapping, lower right, w/gudgeon, assembly (Less point) (Consists of ref. nos. 15, 16, 17 and 20) (Deep pocket) (Nodular iron) (YR. 57-)

1шт.

18

580796R91

ROLL, snapping, lower left, w/gudgeon, assembly (Less point) (Consists of ref. nos. 15, 16, 17 and 20) (Deep pocket) (Nodular iron) (YR. 57-)

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, set, sq-hd., cup-pt., 1/2-13NC x 5/8"

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

19

U19342

ROLL, snapping, lower left, w/gudgeon and point (Riveted assembly) (Includes ref. nos. 18, 22 and 23) (Pop corn snapping roll on machines manufactured 1940 and prior) (YR. 53-)

1шт.

19

U19344

ROLL, snapping, lower right, w/gudgeon and point assembly (Includes ref. nos. 18, 22 and 23) (YR. 53-)

1шт.

19

580799R91

ROLL, snapping, lower right, w/gudgeon and point, assembly (Includes ref. nos. 18, 22 and 23) (Deep pocket) (Nodular iron) (YR. 57-)

1шт.

19

580800R91

ROLL, snapping, lower left, w/gudgeon and point, assembly (Includes ref. nos. 18, 22 and 23) (Deep pocket) (Grey iron) (YR. 57-)

1шт.

19

U17410

ROLL, snapping, lower right, w/gudgeon and point, assembly (Includes ref. nos. 18, 22 and 23) (Deep pocket) (Grey iron) (YR. 57-)

1шт.

19

U17727

ROLL, snapping, lower left, w/gudgeon and point, assembly (Includes ref. nos. 18, 22 and 23) (Deep pocket) (Grey iron) (YR. 57-)

1шт.

12421R1

RIVET, oval-hd., 3/8 x 3/4"

4шт.

12933R1

RIVET, oval-hd., 5/16 x 2-11/16" (Lower rivet)

2шт.

14788R1

RIVET, oval-hd., 5/16 x 3-1/4" (Upper rivet)

2шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, set, sq-hd., cup-pt., 1/2-13NC x 5/8"

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

20

UA15772

GUDGEON, lower snapping roll, lower (YR. 53-)

2шт.

U15774

WASHER, plain, 1-9/32" I.D. x 3" O.D. x no. 18 ga.

2шт.

U15775

WASHER, plain, 1-9/32" I.D. x 3" O.D. x no. 16 ga.

2шт.

21

271281

SEAL

lubrication, straight, 1/8" (1-1/4" long) (YR. 53-)

1шт.

22

U1850

BRACKET, lower snapping roll lower, left (Order UB15767) (YR. 53-)

1шт.

22

UB15767

BRACKET, lower snapping roll lower, left, w/bearing assembly (Includes ref. no. 26) (YR. 53-)

1шт.

22

U1849

BRACKET, lower snapping roll lower, right (Order UB15766) (YR. 53-)

1шт.

22

UB15766

BRACKET, lower snapping roll lower, right, w/bearing assembly (Includes ref. no. 26) (YR. 53-)

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, carriage, 3/8-16NC x 1-1/4"

2шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

4шт.

280136

NUT,3/8"-16, G8

2шт.

114774

NUT, hex., 1/2-13NC

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

23

U1783

POINT, lower snapping roll, right (YR. 53-)

1шт.

23

U1784

POINT, lower snapping roll, left (YR. 53-)

1шт.

24

U1781

POINT, upper snapping roll, right (YR. 53-)

1шт.

24

U1782

POINT, upper snapping roll, left (YR. 53-)

1шт.

25

UA1791

BRACKET, upper snapping roll, lower left (Order UC15242) (YR. 53-)

1шт.

25

UC15242

BRACKET, upper snapping roll, lower left, w/bearing assembly (Includes ref. no. 26) (YR. 53-57)

1шт.

25

580183R11

BRACKET, upper snapping roll, lower left, w/bearing, assembly (Includes ref. no. 26) (YR. 57-)

1шт.

25

U1790

BRACKET, upper snapping roll, lower right (Order UC15243) (YR. 53-57)

1шт.

25

UC15243

BRACKET, upper snapping roll, lower right, w/bearing assembly (Includes ref. no. 26) (YR. 53-57)

1шт.

25

580182R11

BEARING

BRACKET, upper snapping roll, lower right, w/bearing, assembly (Includes ref. no. 26) (YR. 57-)

1шт.

15114R1

BOLT, carriage, dld., 5/8-11NC x 2-1/2"

2шт.

M153M

NUT

horned, 5/8-11NC

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

575810R1

WASHER

plain, 21/32" I.D. x 1-1/2" O.D. x no. 11 ga.

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

26

UA1805

BUSHING

BEARING, snapping roll, lower (Bronze) (YR. 53-)

4шт.

27

109365

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (YR. 53-)

2шт.

28

U19341

ROLL, snapping, upper right, w/gudgeon and point assembly (Consists of ref. nos. 24, 25 and 30) (YR. 53-57)

1шт.

28

580270R91

ROLL, snapping, upper right, w/gudgeon and point, assembly (Consists of ref. nos. 24, 25 and 30) (Shallow pocket) (Grey iron) (YR. 57-)

1шт.

28

580273R91

ROLL, snapping, upper right, w/gudgeon and point, assembly (Consists of ref. nos. 24, 25 and 30) (Deep pocket) (Grey iron) (YR. 57-)

1шт.

28

580801R91

ROLL, snapping, upper right, w/gudgeon and point, assembly (Consists of ref. nos. 24, 25 and 30) (Deep pocket) (Nodular iron) (YR. 57-)

1шт.

28

U19343

ROLL, snapping, upper left, w/gudgeon and point assembly (Consists of ref. nos. 24, 25 and 30) (YR. 53-57)

1шт.

28

580271R91

ROLL, snapping, upper left, w/gudgeon and point, assembly (Consists of ref. nos. 24, 25 and 30) (Shallow pocket) (Grey iron) (YR. 57-)

1шт.

28

580272R91

ROLL, snapping, upper left, w/gudgeon and point, assembly (Consists of ref. nos. 24, 25 and 30) (Deep pocket) (Grey iron) (YR. 57-)

1шт.

28

580802R91

ROLL, snapping, upper left, w/gudgeon and point, assembly (Consists of ref. nos. 24, 25 and 30) (Deep pocket) (Nodular iron) (YR. 57-)

1шт.

12421R1

RIVET, oval-hd., 3/8 x 2-1/4"

4шт.

12925R1

RIVET, oval-hd., 5/16 x 2-7/16" (Lower rivet)

2шт.

14788R1

RIVET, oval-hd., 5/16 x 3-1/4" (Upper rivet)

4шт.

29

UA15769

GUDGEON, upper, snapping roll, lower (YR. 53-)

2шт.

U15774

WASHER, plain, 1-9/32" I.D. x 3" O.D. x no. 18 ga.

2шт.

U15775

WASHER, plain, 1-9/32" I.D. x 3" O.D. x no. 16 ga.

2шт.

30

U19403

ROLL, snapping, upper left, w/gudgeon assembly (Less point) (Consists of ref. nos. 16, 29, 31 and 32) (Shallow pocket) (Grey iron) (YR. 53-)

1шт.

30

580794R91

ROLL, snapping, upper left, w/gudgeon, assembly (Less point) (Consists of ref. nos. 16, 29, 31 and 32) (Deep pocket) (Nodular iron) (YR. 57-)

1шт.

30

U17270

ROLL, snapping, upper left, w/gudgeon, assembly (Less point) (Consists of ref. nos. 16, 29, 31 and 32) (Deep pocket) (Grey iron) (YR. 57-)

1шт.

30

U19405

ROLL, snapping, upper right, w/gudgeon assembly (Less point) (Consists of ref. nos. 16, 29, 31 and 32) (Shallow pocket) (Grey iron) (YR. 53-)

1шт.

30

580793R91

ROLL, snapping, upper right, w/gudgeon, assembly (Less point) (Consists of ref. nos. 16, 29, 31 and 32) (Deep pocket) (Nodular iron) (YR. 57-)

1шт.

30

U17269

ROLL, snapping, upper right, w/gudgeon, assembly (Less point) (Consists of ref. nos. 16, 29, 31 and 32) (Deep pocket) (Grey iron) (YR. 57-)

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, set, sq-hd., cup-pt., 1/2-13NC x 5/8"

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

31

UA1839

GEAR, spur, snapping roll (13-teeth) (YR. 53-)

2шт.

32

U15770

GUDGEON, upper snapping roll, upper (YR. 53-)

2шт.

U15775

WASHER, plain, 1-9/32" I.D. x 3" O.D. x no. 16 ga.

2шт.

Q5004

DISC,32.5mm ID x 57mm OD x 1.5mm Thk

WASHER, plain, 1-9/32" I.D.x 2-1/4" O.D. x no. 16 ga.

6шт.

U15774

WASHER, plain, 1-9/32" I.D. x 3" O.D. x no. 18 ga.

2шт.

33

U15706

BRACKET, tightening, gatherer drive chain, left (YR. 53-)

1шт.

33

U15707

BRACKET, tightening, gatherer drive chain, right (YR. 53-)

1шт.

34

U15733

BOARD

BLOCK, tightener, snapping roll beater and gatherer drive chain (YR. 53-)

2шт.

15124R1

BOLT (SPREADER)

BOLT, carriage, 3/8-16NC x 2-3/4"

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1507

WASHER, plain, 13/32" I.D. x 1-1/2" O.D. x no. 16 ga.

2шт.
