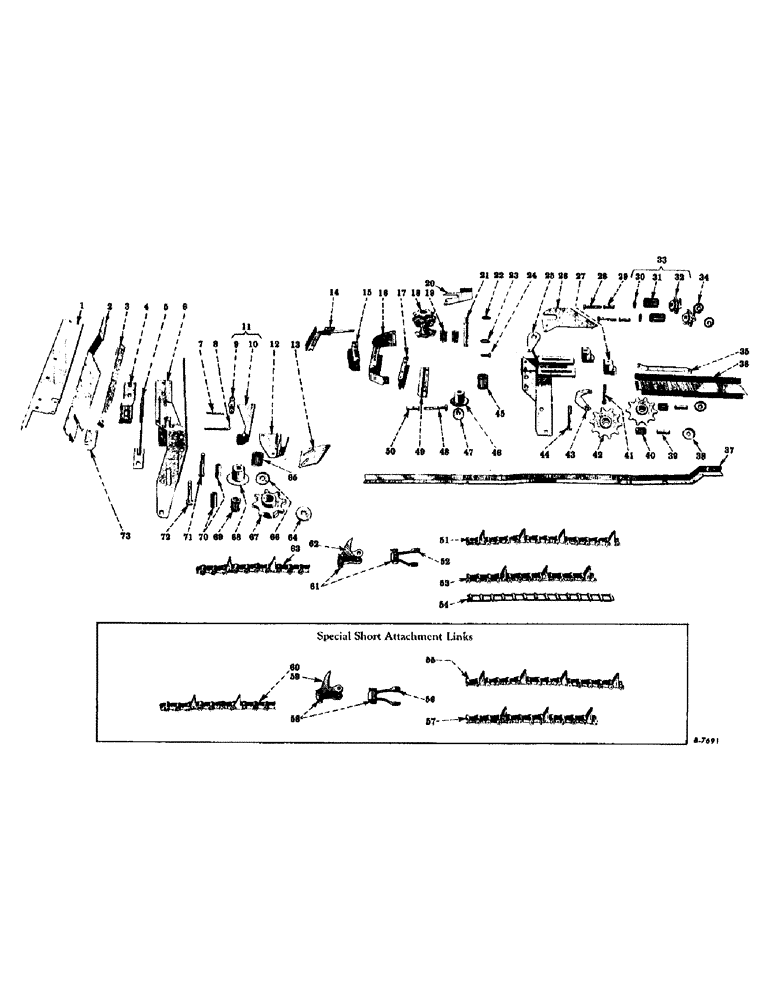

Запчасти Case IH 2-PR (024) - SINGLE GATHERER, DOUBLE GATHERER, AND SPECIAL SHORT ATTACHMENT LINK GATHER CHAINS (60) - PRODUCT FEEDING

1

U16990

SHEET, single gatherer chain support, right (YR. 53-)

1шт.

1

U16991

SHEET, single gatherer chain support, left (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

8шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

4шт.

12907R1

BOLT, plow, no. 3, 1/2-13NC x 1"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

8шт.

280136

NUT,3/8"-16, G8

4шт.

114774

NUT, hex., 1/2-13NC

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

2

UA16992

GUIDE, single gatherer chain, right (YR. 53-60)

1шт.

2

UA16993

GUIDE, single gatherer chain, left (YR. 53-60)

1шт.

2

628771R1

GUIDE, single gatherer chain, left rear (YR. 61-)

1шт.

2

628772R1

GUIDE, single gatherer chain, right rear (YR. 61-)

1шт.

2

628773R1

GUIDE, single gatherer chain, left front (YR. 61-)

1шт.

2

628774R1

GUIDE, single gatherer chain, right front (YR. 61-)

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

UA16938

SUPPORT, inner gatherer chain, rear (YR. 53-)

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, carriage, 5/16-18NC x 1-1/2"

12шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

4

UA17932

SUPPORT, upper snapping roll lower bearing bracket (YR. 53-)

2шт.

5

U16939

TIGHTENER, single gatherer chain, w/bolt (Welded assembly) (YR. 53-)

2шт.

114774

NUT, hex., 1/2-13NC

4шт.

PO15667

WASHER

plain, 17/32" I.D. x 1" O.D. x no. 11 ga.

4шт.

6

UA16996

BRACKET, supporting, single gatherer chain idler, right, w/brace and plate (Welded assembly) (YR. 53-)

1шт.

6

UA16997

BRACKET, supporting, single gatherer chain idler, left, w/brace and plate (Welded assembly) (YR. 53-)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

4шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, carriage, 1/2-13NC x 1-3/4"

6шт.

280136

NUT,3/8"-16, G8

2шт.

114774

NUT, hex., 1/2-13NC

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

7

T249

SPRING

snapping unit ear stop (YR. 53-)

2шт.

8

U4672

ROD, snapping unit ear stop spring (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

9

UA444

HINGE, snapping roll ear stop spring rod (YR. 53-59)

2шт.

10

U16984

STOP, snapping unit ear, right, w/pivot (Welded assembly) (YR. 53-59)

1шт.

10

U16985

STOP, snapping unit ear, left, w/pivot (Welded assembly) (YR. 53-59)

1шт.

10

587960R1

STOP, snapping unit ear left (YR. 60-)

1шт.

10

587961R1

STOP, snapping unit ear right (YR. 60-)

1шт.

11

U17415

STOP, snapping unit ear, right, w/hinge (Riveted assembly) (Consists of ref. nos. 9 and 10) (YR. 53-60)

1шт.

11

U17755

STOP, snapping unit ear, left, w/hinge (Riveted assembly) (Consists of ref. nos. 9 and 10) (YR. 53-60)

1шт.

12

UA16994

BRACKET, upper snapping roll point shield, right, w/rod (Welded assembly) (YR. 53-)

1шт.

12

UA16995

BRACKET, upper snapping roll point shield, left, w/rod (Welded assembly) (YR. 53-)

1шт.

13

U17062

SHIELD, upper snapping roll point, right (YR. 53-)

1шт.

13

U17063

SHIELD, upper snapping roll point, left (YR. 53-)

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

6шт.

280136

NUT,3/8"-16, G8

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

14

UA17096

ANGLE, supporting, double gatherer upper chain guide, right w/brace and bracket (Welded assembly) (YR. 53-)

1шт.

14

UA17097

ANGLE, supporting, double gatherer upper chain guide, left w/brace and bracket (Welded assembly) (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16-18NC

2шт.

280136

NUT,3/8"-16, G8

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

U18097

GUIDE, double gatherer chain, right, w/support (Welded assembly) (YR. 53-60)

1шт.

15

628781R91

GUIDE, double gatherer chain right, w/support (Welded assembly) (YR. 61-)

1шт.

15

U18098

GUIDE, double gatherer chain, left, w/support (Welded assembly) (YR. 53-60)

1шт.

15

628782R91

GUIDE, double gatherer chain, left, w/support (Welded assembly) (YR. 61-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

13002R2

NUT, hex., 3/8-16NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

U17085

FILLER, double gatherer chain guide, right (YR. 53-)

1шт.

16

U17086

FILLER, double gatherer chain guide, left (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17

U17083

GUIDE, double gatherer lower chain, left (YR. 53-60)

1шт.

17

628786R91

GUIDE, double gatherer lower chain left, w/strip (Welded assembly) (YR. 61-)

1шт.

17

U17084

GUIDE, double gatherer lower chain, right (YR. 53-60)

1шт.

17

628787R91

GUIDE, double gatherer lower chain right, w/strip (Welded assembly) (YR. 61-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

18

UB1914

SPROCKET, drive, triple, double gatherer chain (7-teeth) (Driven) (YR. 53-60)

2шт.

18

628779R1

SPROCKET, drive, triple, double gatherer chain (7-T) (Driven) (YR. 61-62)

2шт.

18

UB1914

SPROCKET, drive, triple, double gatherer chain (7-T) (YR. 63-)

2шт.

19

ST1303

BEARING, roller, double gatherer chain drive triple sprocket (Implement type) (YR. 53-)

4шт.

20

U17077

SHIELD, double outer gatherer sprocket, right (YR. 53-)

1шт.

20

U17078

SHIELD, double gatherer sprocket, left (YR. 53-)

1шт.

14986R1

BOLT, carriage, 5/16-18NC x 1/2"

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

U15705

SHAFT, gatherer drive chain triple sprocket (Uses lubrication fitting 109350) (YR. 53-)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q3513

PIN

std-hd., dld., 1/4 x 1-7/16"

2шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

21976K

WASHER, plain, 29/32" I.D. x 1-5/16" O.D. x no. 16 ga.

2шт.

U17355

WASHER, plain, 29/32" I.D. x 2-3/4" O.D. x no. 16 ga.

4шт.

U12931

WASHER, plain, 29/32" I.D. x 2-1/4" O.D. x no. 18 ga.

4шт.

22

U12931

FOLLOWS REF. NO. 20

1шт.

23

U17355

FOLLOWS REF. NO. 20

1шт.

24

Q3513

PIN

FOLLOWS REF. NO. 20

1шт.

25

U17098

BRACKET, idler, double outer gatherer chain, right, w/angle, brace, bracket, stiffener and support (Welded assembly) (YR. 53-)

1шт.

25

U17099

BRACKET, idler, double gatherer chain, left, w/angle, brace, bracket, stiffener and support (Welded assembly) (YR. 53-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

2шт.

114774

NUT, hex., 1/2-13NC

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

U17092

BRACKET, tightening, double gatherer drive chain, right, w/stiffener (Welded assembly) (YR. 53-)

1шт.

26

U17093

BRACKET, tightening, double gatherer chain, left, w/stiffener (Welded assembly) (YR. 53-)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

13002R2

NUT, hex., 3/8-16NC

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

UA15732

BOARD

BLOCK, tightening, gatherer chain (YR. 53-)

4шт.

15089R1

BOLT

carriage, 3/8-16NC x 2-1/4"

2шт.

15124R1

BOLT (SPREADER)

BOLT, carriage, 3/8-16NC x 2-3/4"

2шт.

280136

NUT,3/8"-16, G8

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1507

WASHER, plain, 13/32" I.D. x 1-1/2" O.D. x no. 16 ga.

2шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 GA.

2шт.

28

U17129

BOLT, double gatherer drive chain idler and tightener sprocket (Machine bolt 5/8-11 NC x 3-5/8") (YR. 53-)

4шт.

114820

NUT, hex., 5/8-11NC elbow, 1/8"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

550832R1

WASHER

plain, 21/32" I.D. x 2" O.D. x no. 11 ga.

4шт.

29

U12802

SLEEVE, double gatherer drive chain idler and tightener sprocket (YR. 53-)

4шт.

NLS

NO LONGER SERVICED

plain, 29/32" I.D. x 2" O.D. x no. 16 ga.

8шт.

30

M23538

WASHER

retaining, grease, double gatherer drive chain idler and tightener sprocket (YR. 53-)

4шт.

31

ST1300

BEARING

roller, double gatherer drive chain idler and tightener sprocket (YR. 53-)

4шт.

32

UA1922

SPROCKET, idler, and tightener, double gatherer drive chain (Order UAX1922 - ref. no. 33) (YR. 53-)

4шт.

33

UAX1922

SPROCKET, idler and tightener, double gatherer drive chain, w/bearing, and washer, assembly (Driven) (6-teeth) (Includes ref. nos. 30, 31 and 32) (YR. 53-)

4шт.

34

U14866

CAP, dust, outer gatherer drive chain idler and tightener sprocket

1шт.

35

U17100

BRACE, double gatherer drive chain support shield, front (YR. 53-)

2шт.

35

U17101

BRACE, double gatherer drive chain support shield, rear (YR. 53-)

2шт.

36

U16405

SHIELD, double gatherer drive chain support (YR. 53-)

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

37

U15750

BRACE, double gatherer idler support bracket, right, w/washer (Welded assembly) (YR. 53-)

1шт.

37

U15751

BRACE, double gatherer idler support bracket, left, w/washer (Welded assembly) (YR. 53-)

1шт.

38

U14866

CAP, dust, double gatherer chain, sprocket, lower (YR. 53-)

4шт.

39

U12802

SLEEVE, double gatherer chain sprocket, lower (YR. 53-)

4шт.

40

ST1300

BEARING

roller, outer gatherer chain sprocket, lower (Implement type) (YR. 53-)

4шт.

41

U17129

BOLT, double gatherer chain sprocket, lower (Used upper lower) (Machine bolt, 5/8-11NC x 3-5/8") (YR. 53-)

2шт.

114820

NUT, hex., 5/8-11NC

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

550832R1

WASHER

plain, 21/32" I.D. x 2" O.D. x no. 11 ga.

2шт.

Q5084

WASHER, plain, 29/32" I.D. x 2-1/4" O.D. x no. 11 ga.

6шт.

42

UA1915

SPROCKET, double gatherer chain, lower (10-teeth) (Driven) (YR. 53-60)

4шт.

42

628769R1

SPROCKET, double gatherer chain, (9-T) (YR. 61-62)

2шт.

42

628780R1

SPROCKET, double gatherer chain, lower (11-T) (YR. 61-62)

2шт.

42

UA1915

SPROCKET, double gatherer chain, lower (10-T) (YR. 63-)

4шт.

43

U17064

SHIELD, lower snapping roll point, right (YR. 53-)

1шт.

43

U17065

SUPPORT

SHIELD, lower snapping roll point, left (YR. 53-)

1шт.

44

U16043

BOLT, upper gatherer chain idler sprocket (Machine bolt, 5/8-11NC x 4") (YR. 53-)

2шт.

114820

NUT, hex., 5/8-11NC

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

550832R1

WASHER

plain, 21/32" I.D. x 2" O.D. x no. 11 ga.

2шт.

Q5084

WASHER, plain, 29/32" I.D. x 2-1/4" O.D. x no. 16 ga.

6шт.

45

ST1300

BEARING

roller, gatherer chain idler roller (Implement type) (YR. 53-)

2шт.

46

577965R91

ROLLER

idler, gatherer chain, w/flange (Welded assembly) (Less bearing) (YR. 53-)

2шт.

47

U18125

CAP, dust, gatherer chain idler roller (YR. 53-)

2шт.

48

U17129

BOLT, gatherer chain idler roller (Uses lubrication fitting - 109350) (Machine bolt, 5/8-11NC x 3-5/8") (YR. 53-)

2шт.

114820

NUT, hex., 5/8-11NC

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

550832R1

WASHER

plain, 21/32" I.D. x 2" O.D. x no. 11 ga.

2шт.

Q5084

WASHER, plain, 29/32" I.D. x 2-1/4" O.D. x no. 16 ga.

6шт.

49

UC17088

SUPPORT, double gatherer lower chain, right (YR. 53-)

1шт.

49

UC17089

SUPPORT, double gatherer lower chain, left (YR. 53-)

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

50

U12802

SLEEVE, gatherer chain idler roller

1шт.

51

587982R91

CHAIN (AG)

CHAIN, double gatherer upper, assy (Steel roller type) (YR. 53-60)

2шт.

51

U16518

CHAIN, double gatherer, upper left, w/cotters, links, and pins, assembly (Consists of (8) UA874 and (26) UB876 (30) Q945 (4) QB946) (Pintle type) (YR. 53-60)

1шт.

51

U16517

CHAIN, double gatherer, upper right, w/cotters, links, and pins, assembly (Consists of (8) UA875 and (26) UB876 (30) QB945 and (4) QB946) (Pintle type) (YR. 53-60)

1шт.

51

628777R91

CHAIN (AG)

CHAIN, double gatherer upper w/links assembly (YR. 61-62) Consists of:

2шт.

450423R1

DRAG LINK

LINK, roller

1шт.

587371R91

DRAG LINK

LINK, w/spring clip connecting assembly

1шт.

451343R91

SECTION W/ATTACHING LINK ASSEMBLY

1шт.

51

587982R91

CHAIN (AG)

CHAIN, double gatherer upper w/links assy (YR. 63-)

2шт.

52

UB876

LINK, plain, w/cotter and pin, assembly (YR. 53-)

1шт.

PIN, cotter

1шт.

Q946

PIN, headed, dld., 5/16 x 1-21/32"

1шт.

53

587983R91

CHAIN (AG)

CHAIN, double gatherer lower assy (Steel roller type) (YR. 53-60)

2шт.

53

U18268

CHAIN, double gatherer, lower right, w/cotters, links and pins, assembly (Includes (7) UA875 (21) UB876 (26) QB945 (2) Q946) (Pintle type) (YR. 53-60)

1шт.

53

U18269

CHAIN, double gatherer, lower left, w/cotters, links, and pins, assembly (Includes (7) UA874 and (21) UB876 (26) QB945 and (2) Q946) (Pintle type) (YR. 53-60)

1шт.

53

628778R91

CHAIN (AG)

CHAIN, double gatherer, lower w/link assembly (YR. 61-62) Consists of:

1шт.

450423R1

DRAG LINK

LINK, roller

1шт.

587371R91

DRAG LINK

LINK W/SPRING CLIP CONNECTING ASSEMBLY

1шт.

451343R91

SECTION W/ATTACHING LINK ASSEMBLY

1шт.

53

587983R91

CHAIN (AG)

CHAIN, double gatherer lower ASSY (YR. 63-)

2шт.

54

CHAIN, drive, double gatherer (Order 56 links no. 62 steel) (YR. 53-60)

2шт.

55

UA16612

CHAIN, double gatherer, chain upper left, w/cotters, links, and pins, assembly (Special short) (Includes (26) UB876 and (8) UA1789 (4) QB946 and (30) QB945) (YR. 53-60)

1шт.

55

UA16613

CHAIN, double gatherer, upper right, w/cotters, links, and pins, assembly (Special short) (Includes (26) UB876 and (8) UA1788 (4) QB946 and (30) QB945) (YR. 53-60)

1шт.

56

UB876X

LINK, plain, w/cotter and pin, assembly (YR. 53-)

1шт.

PIN, cotter

1шт.

QB946

PIN, headed, dld., 5/16 x 1-21/32"

1шт.

57

UA16614

CHAIN, double gatherer, lower left, w/cotters, links and pins, assembly (Special short) (Includes (21) UB876 and (7) UA1789 (2) QB946 and (26) QB945) (YR. 53-60)

1шт.

57

UA16615

CHAIN, double gatherer, lower right, w/cotters, links and pins, assembly (Special short) (Includes (21) UB876 and (7) UA1788 (2) QB946 and (26) QB945) (YR. 53-60)

1шт.

58

QB946

FOLLOWS REF. NOS. 56 AND 59

1шт.

59

UAX1788

LINK, attaching, w/cotter and pin, assembly (Special short) (YR. 53-60)

1шт.

59

UAX1789

LINK, attaching, w/cotter and pin, assembly (Special short) (Used in U16612, U16614 and U16616) (YR. 53-60)

1шт.

PIN, cotter

1шт.

QB946

PIN, headed, dld., 5/16 x 1-21/32"

1шт.

60

UA16616

CHAIN, single gatherer, right, w/cotters, links, and pins, assembly (Special short) (Includes (51) UB876 and (17) UA1789 (2) QB946 and (60) QB945) (YR. 53-60)

1шт.

60

UA16617

CHAIN, inner gatherer, left, w/cotters, links, and pins, assembly (Special short) (Includes (51) UB876 and (17) UA1788 (2) QB946 and (60) QB945) (YR. 53-60)

1шт.

61

QB946

FOLLOWS REF. NOS. 52 AND 62

1шт.

62

UA874X

LINK, attaching, w/cotter and pin, assembly (YR. 53-)

1шт.

62

UA875X

LINK, attaching, w/cotter and pin, assembly (YR. 53-)

1шт.

PIN, cotter

1шт.

QB946

PIN, headed, dld., 5/16 x 1-21/32"

1шт.

63

587981R91

CHAIN (AG)

CHAIN, single gatherer inner, assy (Steel roller type) (YR. 53-60)

2шт.

63

U18270

CHAIN (AG)

CHAIN, single gatherer, left, w/cotters, links and pins, assembly (Includes (17) UA875, (51) UB876 (66) QB945 and (2) QB946) (Pintle type) (YR. 53-60)

1шт.

63

U18271

CHAIN (AG)

CHAIN, single gatherer, right, w/cotters, links and pins, assy (Includes (51) UB876, (17) UA874 (66) QB945 and (2) QB946) (Pintle type) (YR. 53-60)

1шт.

63

628768R91

CHAIN, single gatherer w/link assembly, (YR. 61-62) Consists of:

2шт.

450423R1

DRAG LINK

LINK, roller

1шт.

587371R91

DRAG LINK

LINK W/SPRING CLIP CONNECTING ASSEMBLY

1шт.

451343R91

SECTION W/ATTACHING LINK ASSEMBLY

1шт.

63

587981R91

CHAIN (AG)

CHAIN, single gatherer inner, assy (YR. 63-)

2шт.

64

U14866

CAP, dust, single gatherer chain tightener sprocket (YR. 53-)

2шт.

65

ST1300

BEARING

roller, gatherer chain idler roller (Implement type) (YR. 53-)

2шт.

66

U18125

CAP, dust, gatherer chain idler roller (YR. 53-)

2шт.

67

UA1916

PINION

SPROCKET, single gatherer chain tightener lower (8-teeth) (YR. 53-)

2шт.

67

628769R91

SPROCKET, single gatherer chain tightener lower (7-T) (YR. 61-)

2шт.

67

UA1916

PINION

SPROCKET, single gatherer chain tightener lower (8-T) (YR. 63-)

2шт.

68

577965R91

ROLLER

idler, gatherer chain, w/flange (Welded assembly) (Less bearing) (YR. 53-)

2шт.

69

ST1300

BEARING

roller, gatherer chain tightener sprocket (Implement type) (YR. 53-)

2шт.

70

U12802

SLEEVE, gatherer chain idler roller and single gatherer chain tightener sprocket (YR. 53-)

4шт.

Q5084

WASHER, plain, 29/32 I.D. x 2-1/4" O.D. x no. 16 ga.

6шт.

71

U17129

BOLT, gatherer chain idler roller (Machine bolt 5/8-11NC x 3-5/8") (YR. 53-)

2шт.

114820

NUT, hex., 5/8-11NC

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

550832R1

WASHER

plain, 21/32" I.D. x 2" O.D. x no. 11 ga.

2шт.

Q5O84

WASHER, plain, 29/32" I.D. x 2-1/4 O.D. x no. 16 ga.

6шт.

72

U17384

BOLT, single gatherer chain tightener sprocket (Machine bolt 5/8-11NC x 4-3/8") (YR. 53-)

2шт.

114774

NUT, hex., 1/2-13NC

4шт.

114820

NUT, hex., 5/8-11NC

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

550832R1

WASHER

plain, 21/32" I.D. x 2" O.D. x 11 ga.

4шт.

Q5084

WASHER, plain, 29/32" I.D. x 2-1/4" O.D. x no. 16 ga.

6шт.

73

U16928

SUPPORT, single gatherer chain, front right (YR. 53-)

1шт.

73

628776R1

SUPPORT, single gatherer chain, right front (YR. 61-)

1шт.

73

U16929

SUPPORT, single gatherer chain, front left (YR. 53-)

1шт.

73

628775R1

SUPPORT, single gatherer chain, left front (YR. 61-)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

109350

FITTING, lubrication, 67-1/2 degree elbow, 1/8", (part is not illustrated)

1шт.

(In double gatherer chain idler roller bolts)

2шт.

(In single gatherer chain tightener sprocket bolt)

2шт.

(In double gatherer chain drive triple sprocket shaft)

2шт.

(In double gatherer drive chain tightener sprocket bolts)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8", (part is not illustrated)

1шт.

(In double gatherer chain idler sprocket bolts) (Lower)

2шт.

(In double gatherer chain idler sprocket bolts) (Upper)

2шт.

(In double gatherer drive chain idler sprocket bolts)

2шт.

NLS

NO LONGER SERVICED

lubrication, 30 degree elbow, 1/8", (part is not illustrated)

1шт.

(In inner gatherer drive chain sheave bolt)

1шт.

628321R1

SPACER, shapping unit ear stop spring rod (YR. 60-), (part is not illustrated)

2шт.
