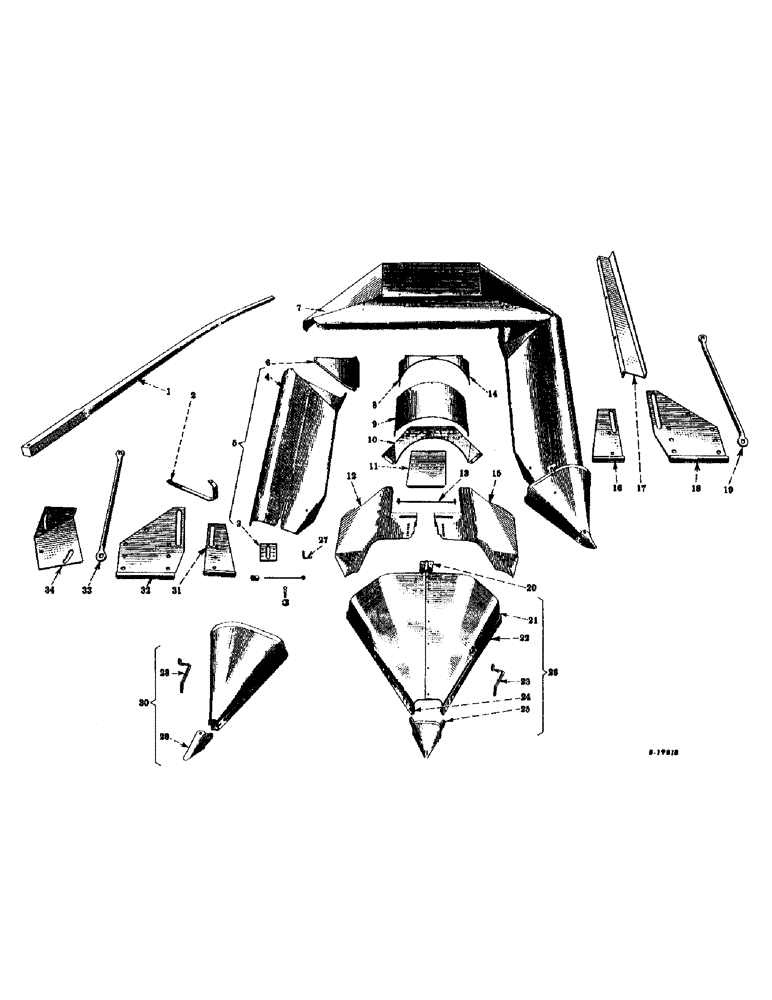

Запчасти Case IH 2-PR (020) - GATHERER SHEETS, HINGES, BRACES AND FENDER STICK (60) - PRODUCT FEEDING
№
Артикул
Название
Примечание
Количество
1
UX13578
BAR, fender, stalk deflector, w/bolts, nuts and washer (Riveted assembly) (YR. 53-)
1шт.
15089R1
BOLT
carriage, 3/8-16NC x 2-1/4"
2шт.
280136
NUT,3/8"-16, G8
2шт.
107180
X
RIVET, truss-hd., 1/4 x 1-5/8"
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
615009R1
WASHER
plain, 17/64" I.D. x 3/4" O.D. x no. 16 ga.
2шт.
Q1505
WASHER
plain, 13/32" I.D. x 1" O.D. x no. 16 ga.
1шт.
2
U16473
BRACE, outer gatherer top sheet, left (YR. 53-59)
1шт.
2
626735R1
BRACE, outer gatherer top sheet, left (YR. 60-)
1шт.
2
U16474
BRACE, outer gatherer top sheet, right (YR. 53-59)
1шт.
2
626736R1
BRACE, outer gatherer top sheet, right (YR. 60-)
1шт.
14995R1
BOLT
carriage, 3/8-16NC x 3/4"
6шт.
2
626737R1
BRACE, outer gatherer top sheet outer (YR. 60-)
2шт.
280136
NUT,3/8"-16, G8
6шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
3
U16389
STIFFENER, gatherer top sheet (YR. 53-)
2шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
8шт.
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16-18NC
8шт.
4
UA16511
SHEET, outer gatherer, right (YR. 53-)
1шт.
4
UA16512
SHEET, outer gatherer, left (YR. 53-)
1шт.
15324R1
BOLT, carriage, 3/8-16NC x 6"
2шт.
280136
NUT,3/8"-16, G8
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
Q1505
WASHER
plain, 13/32" I.D. x 1" O.D. x no. 16 ga.
6шт.
5
UA17476
SHEET, outer, gatherer, right, w/bolt, nut, stiffener and washer, assembly (Includes ref. nos. 3 and 4) (YR. 53-)
1шт.
5
UA17763
SHEET, outer gatherer, left, w/bolt, nut, stiffener and washer, assembly (Includes ref. nos. 3 and 4) (YR. 53-)
1шт.
6
U16538
EXTENSION, first elevator outer side sheet, right (YR. 53-)
1шт.
6
U16539
EXTENSION, first elevator outer side sheet, left (YR. 53-)
1шт.
15022R1
BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"
carriage, 5/16-18NC x 1-1/4"
2шт.
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16-18NC
2шт.
7
U18228
COVER, snapping roll beater, w/extension and stiffener (Welded assembly) (YR. 53-)
1шт.
8
U18223
SUPPORT, inner gatherer sheet, center rear right (YR. 53-)
1шт.
9
U18222
SHEET, inner gatherer, center (YR. 53-)
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16-18NC
4шт.
10
U18191
SUPPORT, inner gatherer sheet center, front (YR. 53-)
1шт.
11
U18221
DOOR, inner gatherer sheet (YR. 53-)
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
1шт.
129-419
WING NUT,5/16"-18
NUT, wing, 5/16-18NC
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
Q1505
WASHER
plain, 13/32" I.D. x 1" O.D. x no. 16 ga.
1шт.
12
UA8236
SHEET, inner gatherer, right, w/extension (Welded assembly) (YR. 53-)
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
2шт.
14995R1
BOLT
carriage, 3/8-16NC x 3/4"
1шт.
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16-18NC
2шт.
280136
NUT,3/8"-16, G8
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
13
U18218
ROD, hinge, inner gatherer sheet door (YR. 53-)
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
14
U18224
SUPPORT, inner gatherer sheet, center rear left (YR. 53-)
1шт.
15
UA18237
SHEET, inner gatherer, left, w/extension (Welded assembly) (YR. 53-)
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
2шт.
14995R1
BOLT
carriage, 3/8-16NC x 3/4"
1шт.
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16-18NC
2шт.
280136
NUT,3/8"-16, G8
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
16
U17572
HINGE, double gatherer extension, left, w/pipe (Welded assembly) (YR. 53-60)
1шт.
16
631094R91
HINGE, double gatherer extension left, w/pipe (Welded assembly) (YR. 61-)
1шт.
17
U17017
SHIELD, single gatherer chain, right (YR. 53-)
1шт.
17
U17108
SHIELD, single gatherer chain, left (YR. 53-)
1шт.
18
U16937
HINGE, pivot, single gatherer extension, left, w/pipe (Welded assembly) (YR. 53-60)
1шт.
18
631091R91
HINGE, pivot, single gatherer extension left w/pipe (Welded assembly) (YR. 61-)
1шт.
13257R1
BOLT
machine, 1/2-13NC x 1"
1шт.
114773
NUT, hex., 1/2-13NC
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
PO10535
WASHER
plain, 17/32" I.D. x 1-1/4" O.D. x no. 11 ga.
1шт.
19
UA16255
BRACE, single gatherer extension point (YR. 53-)
1шт.
20
U16389
STIFFENER, inner gatherer top sheet (YR. 53-)
1шт.
21
U12196
SHIELD, center divider sheet bottom, right (YR. 53-)
1шт.
21
U12197
SHIELD, center divider sheet bottom, left (YR. 53-)
1шт.
22
U12193
BAR, center divider point (YR. 53-)
2шт.
14995
BOLT, carriage, 3/8-16NC x 3/4"
4шт.
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
BOLT, carriage, 3/8-16NC x 1-1/4"
4шт.
280136
NUT,3/8"-16, G8
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
23
UA12195
STRAP, hammer, gatherer point (YR. 53-)
1шт.
24
U12194
BRACE, center divider point bar (YR. 53-)
2шт.
25
UB1526
TIP, point, center divider (YR. 53-)
1шт.
26
UC14417
DIVIDER, center, w/bolt, nut, cotter and washer (Riveted and welded assembly) (Includes ref. nos. 21, 22, 23, 24 and 25) (YR. 53-)
1шт.
14995R1
BOLT
carriage, 3/8-16NC x 3/4"
4шт.
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
BOLT, carriage, 3/8-16NC x 1-1/4"
4шт.
12717R1
BOLT, carriage, dld, 3/8-16NC x 2-1/2"
3шт.
15336R1
BOLT, carriage, dld, 7/16-16NC x 6-1/4"
2шт.
280136
NUT,3/8"-16, G8
8шт.
M151M
NUT, horned, 7/16-14NC
2шт.
M152M
NUT, horned, 3/8-16NC
3шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
3шт.
119009
RIVET, truss-hd., 3/16 x 5/16"
5шт.
107170
X
RIVET, truss-hd., 1/4 x 3/8"
6шт.
107172
X
RIVET, truss-hd., 1/4 x 5/8"
3шт.
107174
X
RIVET, truss-hd., 1/4 x 7/8"
4шт.
14811R1
RIVET, truss-hd., 1/4 x 9/16"
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
Q1597
WASHER
plain, 13/32 I.D. x 3/4" O.D. x no. 16 ga.
4шт.
27
U16388
BRACKET, supporting, inner gatherer sheet, lower (YR. 53-)
2шт.
28
U911
TIP, point, gatherer, left (YR. 53-)
1шт.
28
U912
END ASSY.
TIP, point, gatherer, right (YR. 53-)
1шт.
114380
NUT
square, 1/4-20NC (YR. 53-)
2шт.
NLS
NO LONGER SERVICED
SCREW, machine, slotted-fl-hd., 1/4-20NC x 3/4"
2шт.
29
UA12195
STRAP, hammer, gatherer point (YR. 53-)
2шт.
30
UD11396
POINT, outer gatherer, left, w/bolt, nut, cotter, screw and washer (Riveted and welded assembly) (Includes ref. nos. 28 and 29) (YR. 53-)
1шт.
30
UD11367
POINT, outer gatherer, right, w/bolt, nut, cotter, screw and washer (Riveted and welded assembly) (Includes ref. nos. 28 and 29) (YR. 53-)
1шт.
15107R1
BOLT
carriage, 5/16-18NC x 2-1/2"
2шт.
15108R1
BOLT, carriage, 3/8-16NC x 2-1/2"
2шт.
12717R1
BOLT, carriage, dld, 3/8-16NC x 2-1/2"
3шт.
15391R1
BOLT, carriage, dld, 7/16-14NC x 8-3/4"
2шт.
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16-18NC
2шт.
280136
NUT,3/8"-16, G8
2шт.
M151M
NUT, horned, 7/16-14NC
2шт.
M152M
NUT, horned, 3/8-16NC
3шт.
114380
NUT
square, 1/4-20NC
2шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
5шт.
107172
X
RIVET, truss-hd., 1/4 x 5/8"
3шт.
NLS
NO LONGER SERVICED
SCREW, machine, slotted-fl-hd., 1/4-20NC x 3/4"
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
Q1597
WASHER
plain, 13/32" I.D. x 3/4" O.D. x no. 16 ga.
9шт.
31
U17571
HINGE, double gatherer extension point, right, w/pipe (Welded assembly) (YR. 53-60)
1шт.
31
631095R91
HINGE, double gatherer extension point, right w/pipe (Welded assembly) (YR. 61-)
1шт.
32
U16936
HINGE, pivot, single gatherer extension, right, w/pipe (Welded assembly) (YR. 53-60)
1шт.
32
631092R91
HINGE, pivot, single gatherer extension right w/pipe (Welded assembly) (YR. 61-)
1шт.
13257R1
BOLT
machine, 1/2-13NC x 1"
1шт.
114773
NUT, hex., 1/2-13NC
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
PO10535
WASHER
plain, 17/32" I.D. x 1-1/4" O.D. x no. 11 ga.
1шт.
33
UA16255
BRACE, single gatherer extension point (YR. 53-)
1шт.
34
U15709
BRACKET, stalk deflector fender stick (YR. 53-)
1шт.
