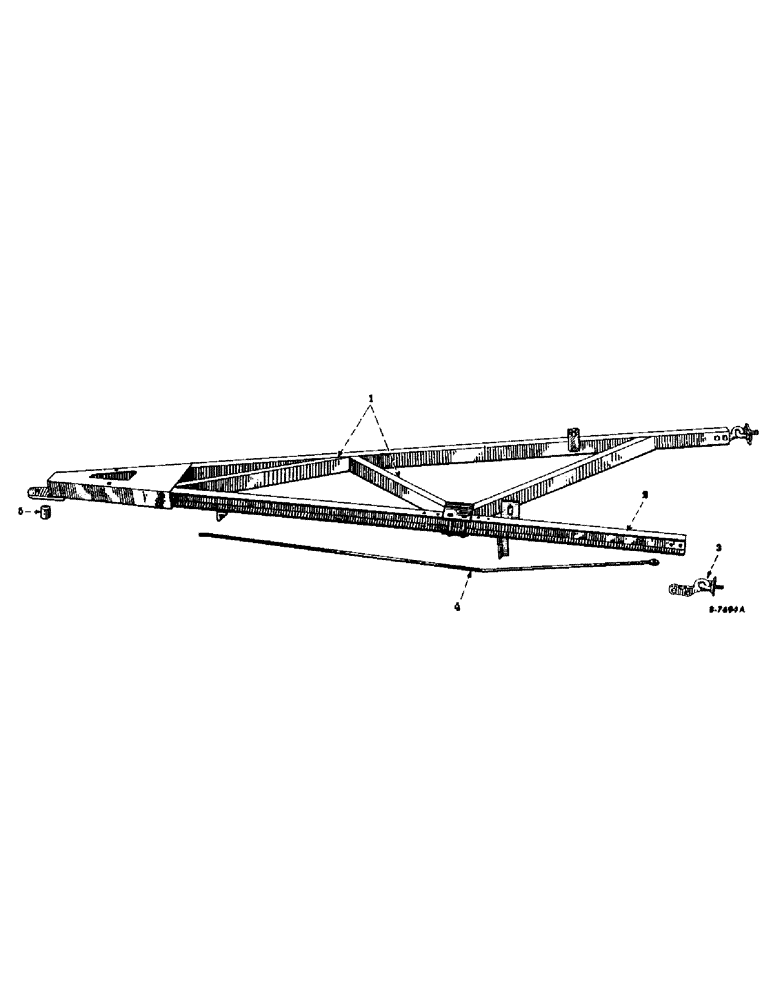

Запчасти Case IH 2-PR (010) - "A" FRAME (39) - FRAMES AND BALLASTING

1

578910R91

"A" FRAME, w/channel, plate and stiffener (Welded assembly) (YR. 53-)

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

3шт.

15222R1

BOLT, carriage, 1/2-13NC x 4-1/4"

3шт.

13361R1

BOLT, machine, 5/8-11NC x 2-1/4"

4шт.

114774

NUT, hex., 1/2-13NC

7шт.

114820

NUT, hex., 5/8-11NC

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

PO10535

WASHER

plain, 17/32" I.D. x 1-1/4 O.D. x no. 11 ga.

1шт.

2

578884R91

CHANNEL, A-frame, left, w/angle, bracket and plate (Welded assembly) (YR. 53-)

1шт.

13293R1

BOLT

machine, 1/2-13NC x 1-1/2"

1шт.

15717R1

BOLT, plow, no. 3, 1/2-13NC x 4" 1/2"-13 x 4", G2

1шт.

114774

NUT, hex., 1/2-13NC

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

UB16437

PIVOT, A-frame, w/plate (Welded assembly) (YR. 53-)

2шт.

4

U17579

ROD, truss, A-frame channel, left (YR. 53-)

1шт.

218442

NUT, jam, 5/8-11NC

2шт.

5

H29432

SPACER, tractor hitch (YR. 53-)

1шт.
