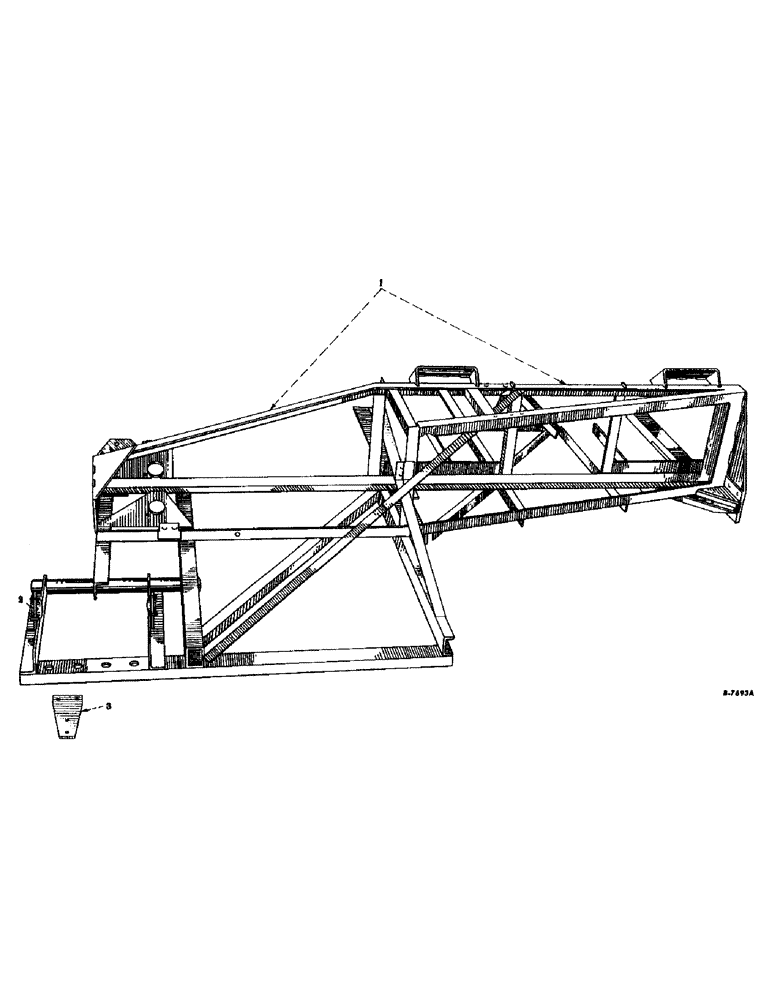

Запчасти Case IH 2-PR (008) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

578750R93

FRAME, main (Welded assembly) (YR. 53-)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

15058R1

BOLT, carriage, 5/8-11NC x 1-3/4"

1шт.

15075R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 2

BOLT, carriage, 5/8-11NC x 2"

7шт.

15112R1

BOLT (SPREADER)

BOLT, carriage, 5/8-11NC x 2-1/2"

4шт.

13244R1

NUT

BOLT, machine, 5/16-18NC x 3/4"

2шт.

U20816

BOLT, machine, 5/16-18NC x 8-3/8"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

280136

NUT,3/8"-16, G8

3шт.

114773

NUT, hex., 7/16-14NC

4шт.

114774

NUT, hex., 1/2-13NC

4шт.

114820

NUT, hex., 5/8-11NC

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

2

575512R1

WEDGE, retaining, wagon elevator (YR. 53-)

2шт.

3

578222R1

PLATE, tongue wagon (YR. 53-)

1шт.

13341R1

BOLT, machine 3/4-10NC x 2

2шт.

13419R1

BOLT, machine 3/4-10NC x 3

1шт.

114821

NUT, hex. 3/4-10NC

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

Q5099

WASHER

plain 25/32" I.D. x 1-3/4" O.D. x no. 11 ga.

2шт.

575814R1

WASHER

plain 25/32" I.D. x 2" O.D. x no. 11 ga.

1шт.
