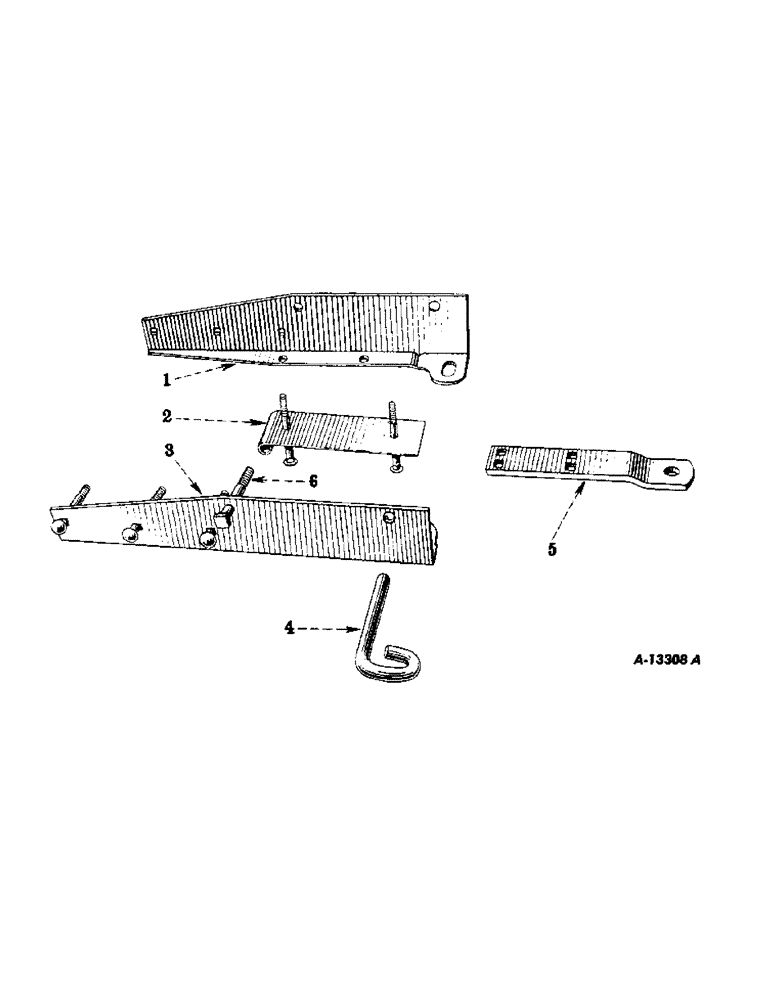

Запчасти Case IH 2-PR (083) - HINGED WAGON TONGUE, FOR WOODEN TONGUES ONLY, ORDERING NUMBER ZDA 1716 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

U15570

BRACKET, wagon tongue side left (YR. 53-)

1шт.

15235R1

BOLT, carriage, 3/8-16NC x 4-1/2"

3шт.

114773

NUT, hex., 3/8-16NC

3шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

3шт.

2

U15568

STRAP, hinge, wagon tongue (YR. 53-)

1шт.

15172R1

BOLT, carriage, 3/8-16NC x 3-1/2"

2шт.

12651R1

BOLT, machine, dld. 1/2-13NC x 4-1/2"

1шт.

280136

NUT,3/8"-16, G8

2шт.

114774

NUT, hex., 7/16-14NC

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

U15569

BRACKET, wagon tongue side, right (YR. 53-)

1шт.

4

UA15567

PIN, wagon hitch (YR. 53-)

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

5

U13114

PLATE, wagon tongue, bottom (YR. 53-)

1шт.

15568R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

plow, no. 3, 3/8-16NC x 1-1/4"

4шт.

280136

NUT,3/8"-16, G8

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

575807R1

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 11 ga.

4шт.

6

15235R1

FOLLOWS REF. NO. 2

1шт.
