Запчасти Case IH 2-PR (097) - HYDRAULIC LIFT ATTACHMENT, FOR FARMALL 300 AND 400 SERIES TRACTORS (35) - HYDRAULIC SYSTEMS

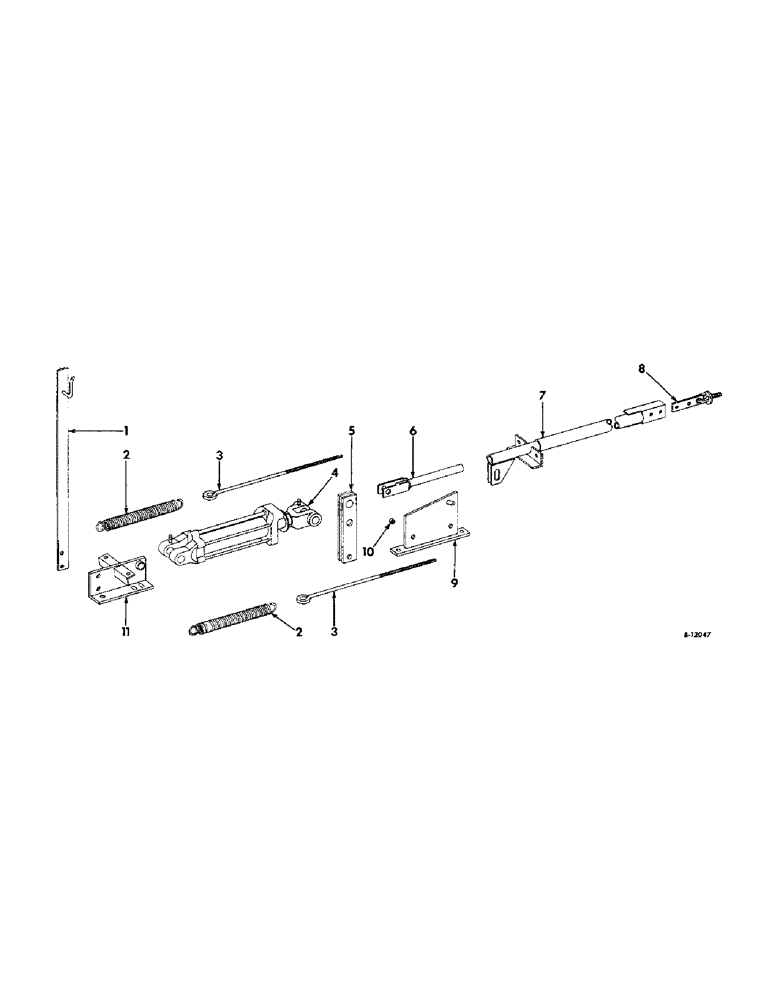

HYDRAULIC LIFT ATTACHMENT (Two-way cylinder type for 300 and 400 series tractors equipped with the universal valve hydraulic system) (Ordering number 581872R91)

1шт.

1

581820R91

POST, hydraulic hose support (Welded assembly) (YR. 57-)

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex.-hd., 3/8 x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

312

SPRING, hydraulic lift tension (YR. 57-)

2шт.

3

581817R1

DRAW-BOLT, hydraulic lift spring (YR. 57-)

2шт.

425-107

NUT,7/16"-14, G5

7/16"

4шт.

4

360997R91

CYLINDER ASSEMBLY, hydraulic (YR. 57-)

1шт.

5

581809R91

BRACKET, hydraulic lift pivot arm (Welded assembly) (YR. 57-)

1шт.

Q3551

AXLE PIN

PIN, headed dld., 5/8 x 1-1/4"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

581811R91

CONNECTOR, hydraulic lift push pipe (Welded assembly) (YR. 57-)

1шт.

7

578574R92

PIPE, hydraulic lift push (Welded assembly) (YR. 57-)

1шт.

Q1335

AXLE PIN

PIN, headed, dld., 3/4 x 2"

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

8

578572R91

EYEBOLT, hydraulic lift anchor (Welded assembly) (YR. 57-)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, crg. 3/8 x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

102637

NUT,1/2"-13, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12026R1

WASHER

plain, 17/32" I.D. x 1-1/4" O.D. x no. 16 ga.

1шт.

9

581822R91

BRACKET, hydraulic lift pivot arm support (Welded assembly) (YR. 57-)

1шт.

10

RA927R

BUSHING

SPACER, hydraulic lift pivot arm support (YR. 57-)

1шт.

11

581814R91

BRACKET, hydraulic lift anchor (Welded assembly) (YR. 57-)

1шт.
