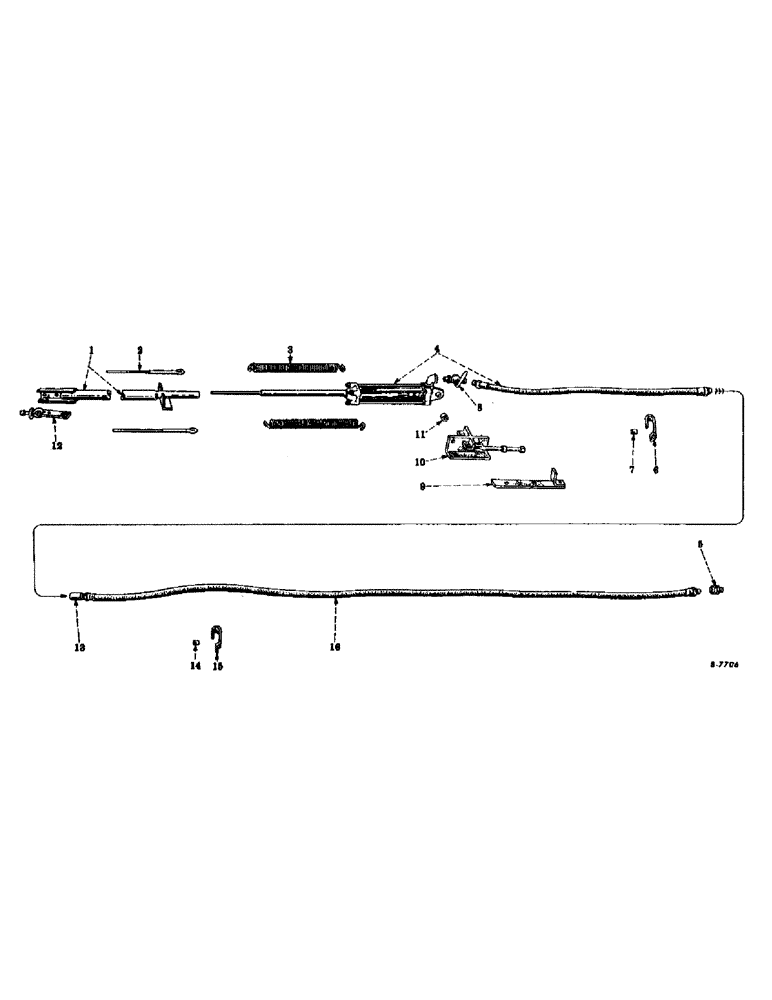

Запчасти Case IH 2-PR (095) - HYDRAULIC LIFT ATTACHMENT (35) - HYDRAULIC SYSTEMS

1

578574R91

PIPE, push, hydraulic lift, w/angle, extension and stop (Welded assembly) (YR. 53-)

1шт.

2

578561R1

DRAWBOLT, hydraulic lift spring (YR. 53-)

2шт.

114773

NUT, hex., 7/16-14NC

4шт.

3

312

SPRING, tension, hydraulic lift (YR. 53-)

2шт.

4

POSP5994

CYLINDER, hydraulic, assembly (3 x 8") (See note) (YR. 53-)

1шт.

4

POSP5997

CYLINDER, hydraulic, assembly (2-1/4 x 8") (See note) (YR. 53-)

1шт.

4

POSP6760

CYLINDER, hydraulic, assembly (1-3/4 x 8") (See note) (YR. 53-)

1шт.

17525R1

BOLT

Machine, 5/8-11NC x 2"

1шт.

114820

NUT, hex., 5/8-11NC

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

575810R1

WASHER

plain, 21/32" I.D. x 1-1/2" O.D. x no. 11 ga.

1шт.

5

564890R91

ADAPTER, swivel union, w/bushing, nipple and nut, assembly (YR. 53-)

1шт.

6

578947R1

CLAMP, hydraulic lift hose, rear (YR. 53-)

1шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

machine, 3/8-16NC x 1-3/4"

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

M89002

SPACER, hydraulic lift hose clamp (YR. 53-)

1шт.

8

23587K

VALVE, shut-off, assembly (YR. 53-)

1шт.

9

578941R91

PLATE, tightening, hydraulic lift, w/bracket (Welded assembly) (YR. 53-)

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

578568R91

BRACKET, hydraulic lift, w/angle and stud (Welded assembly) (YR. 53-)

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

1шт.

114774

NUT, hex., 1/2-13NC

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

hydraulic cylinder head (YR. 53-)

1шт.

12

578572R91

EYEBOLT, anchor, hydraulic lift, w/strap and washer (Welded assembly) (YR. 53-)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

280136

NUT,3/8"-16, G8

2шт.

114820

NUT, hex., 5/8-11NC

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12026R1

WASHER

plain, 17/32" I.D. x 1-1/4" O.D. x no. 16 ga.

1шт.

13

187397

COUPLING,1/2" NPT, Fem

pipe, hydraulic lift hose (1/2") (YR. 53-)

1шт.

14

M89002

SPACER, hydraulic lift hose clamp (YR. 53-)

1шт.

15

578942R1

CLAMP, hydraulic lift hose, front (YR. 53-)

1шт.

13315R1

BOLT, machine, 3/8-16NC x 1-3/4"

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

23620KB

HOSE, hydraulic lift, front w/sleeve and insert, assembly (YR. 53-)

1шт.
