Запчасти Case IH 2-PR (084) - HYDRAULIC CYLINDER CONTROL ROD (35) - HYDRAULIC SYSTEMS

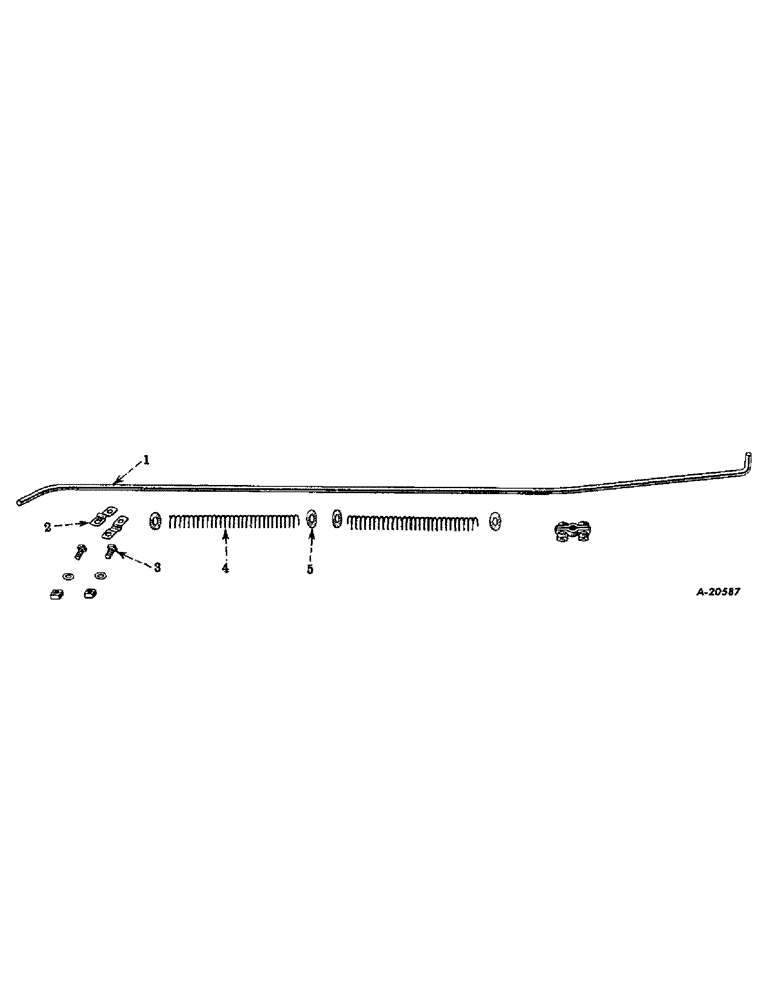

Схема запчастей Case IH 2-PR - (084) - HYDRAULIC CYLINDER CONTROL ROD (35) - HYDRAULIC SYSTEMS
2
3
1
5
4

Артикул

Название

Примечание

Количество

HYDRAULIC CYLINDER CONTROL ROD PACKAGE (For Farmall H tractor) (Ordering number 21566K) (YR. 53-60), (this package contains parks listed below)

1шт.

HYDRAULIC CYLINDER CONTROL ROD PACKAGE (For Farmall M and MD tractors) (Ordering number 21567K) (YR. 53-60), (this package contains parks listed below)

1шт.

1

22190K

ROD, adjusting, hydraulic lift trigger control (For Farmall H tractor) (YR. 53-60)

1шт.

1

22191K

ROD, adjusting, hydraulic lift trigger control (For Farmall M and MD tractors) (YR. 53-60)

1шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga.

4шт.

2

22192K

STOP, spring, hydraulic lift control rod (YR. 53-60)

4шт.

3

13244R11

BOLT, machine, 5/16-18NC x 3/4"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

22193K

SPRING, hydraulic lift control (YR. 53-60)

2шт.

5

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga. thick

4шт.

Выбрано товаров: 11
