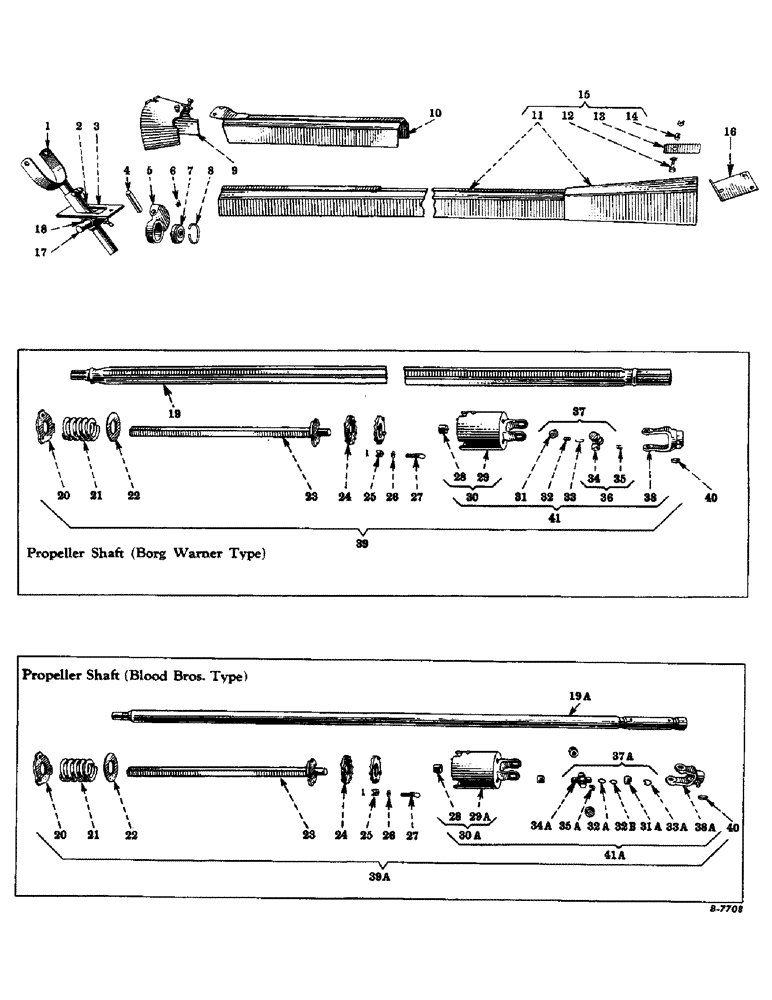

Запчасти Case IH 2-PR (016) - POWER DRIVE SHAFT AND SLIP CLUTCH PARTS, REGULARLY SUPPLIED WITH ALL MACHINES (31) - IMPLEMENT POWER TAKE OFF

1

38638KA

PIPE, supporting, power drive shaft front bearing, w/yoke (Welded assembly) (YR. 53-)

1шт.

2

2465K

PIVOT, supporting, power drive shaft front bearing (YR. 53-)

1шт.

13337R1

BOLT, machine, 7/16-14NC x 2"

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

102907

SET SCREW,Sq Hd, 7/16"-14 x 1"

SCREW, set, sq-hd., cup-pt., 7/16-14NC x 1"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

U22053

PLATE, clamping, power drive shaft front pivot tube bearing (Welded assembly) (YR. 53-)

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

1шт.

114774

NUT, hex., 1/2-13NC

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

PO10535

WASHER

plain, 17/32" I.D. x 1-1/4" O.D. x no. 11 ga.

1шт.

4

U20726

TUBE, pivot, power drive shaft front support bearing box (YR. 53-) 0.75" OD x 4.5" L

1шт.

5

UA6069

BOX, power drive shaft front support bearing (YR. 53-)

1шт.

13604R1

BOLT, machine, 1/2-13NC x 5-3/4"

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

1шт.

7

558128R91

BEARING

ball, power drive shaft front support (YR. 53-)

1шт.

8

UA20551

RING

RETAINER, power drive shaft front support bearing (YR. 53-)

1шт.

9

38249K

SHIELD, power take-off, front knuckle, w/clip (Welded assembly) (YR. 53-59)

1шт.

9

583273R1

SHIELD, power take-off, front knuckle (YR. 60)

1шт.

13255R1

BOLT, machine, 3/8-16NC x 1"

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

38247K

SHIELD, power drive shaft telescoping, front, w/guide and support (Welded assembly) (YR. 53-)

1шт.

11

SHIELD, power drive shaft telescoping, rear (Not serviced separately - order shield, assembly, 38294K - ref. no. 15) (YR. 53-)

1шт.

12

15996R1

BOLT, machine, dld., 3/8-16NC x 2-1/2"

1шт.

280136

NUT,3/8"-16, G8

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

13

C33463

LATCH, quick attaching, power drive shaft telescoping shield (YR. 53-)

1шт.

14

C33464

SPRING, power drive shaft telescoping shield quick attaching latch (YR. 53-)

1шт.

15

38294K

SHIELD, power drive shaft telescoping, rear, w/extension, guide, and stiffener (Welded assembly) (Consists of ref. nos. 11, 12, 13 and 14) (YR. 53-)

1шт.

16

578895R1

SUPPORT, main drive rear knuckle shield (YR. 53-)

1шт.

17

38221K

SHAFT, pivot power drive shaft front bearing (YR. 53-)

1шт.

18

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (YR. 53-)

1шт.

19

38293KA

SHAFT, drive, power, w/hub and tube (Welded assembly) (YR. 53-56)

1шт.

19

580492R91

SHAFT, drive, power (Welded assembly) (YR. 56-)

1шт.

19a

576495R91

SHAFT, drive, power, w/sleeve and stud (Welded assembly) (YR. 53-56)

1шт.

19a

580493R91

SHAFT, drive, power (Welded assembly) (YR. 56-)

1шт.

20

UA20770

PLATE, tension, main drive slip clutch (YR. 53-)

1шт.

21

935705R1

SPRING, main drive shaft slip clutch (YR. 63-)

1шт.

21

19302K

SPRING

main drive shaft slip clutch (YR. 54-62)

1шт.

21

H5515M

SPRING, main drive slip clutch (YR. 53-54)

1шт.

22

U22071

WASHER, main drive slip clutch spring (YR. 53-)

1шт.

23

U20946

SHAFT, telescoping, main drive slip clutch, w/holder (Welded assembly) (YR. 53-)

1шт.

24

M4612

RATCHET

main drive slip clutch (YR. 53-)

2шт.

25

M152M

NUT, horned, 3/8-16NC (YR. 53-)

3шт.

26

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x no. 16 ga. (YR. 53-)

6шт.

27

UA20764

BOLT

adjusting, main drive slip clutch (YR. 53-)

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (YR. 53-) 3/32" x 3/4"

3шт.

28

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

main drive slip clutch knuckle

1шт.

29

38289KA

HOUSING AND RATCHET HOLDER, main drive slip clutch knuckle (Less bushing) (Not serviced separately - order 38942KA - ref. no. 30) (YR. 53-)

1шт.

29a

576576R91

HOUSING AND RATCHET HOLDER, main drive slip clutch knuckle (Less bushing) (Not serviced separately - order 576579R91 - ref. no. 30A) (YR. 53-)

1шт.

30

38942KA

HOUSING AND RATCHET HOLDER, main drive slip clutch knuckle, w/bushing, assembly (YR. 53-57)

1шт.

30

581921R91

HOUSING AND RATCHET HOLDER, main drive slip clutch knuckle, w/bushing, assembly (YR. 57-)

1шт.

30a

576579R91

HOUSING AND RATCHET HOLDER, main drive slip clutch knuckle, w/bushing, assembly (YR. 53-)

1шт.

31

M32995

RETAINER

BEARING - roller, assembly (YR. 53-)

4шт.

31a

576423R1

BUSHING, center cross (YR. 53-62)

4шт.

31a

569044R91

BEARING ASSY

ASSEMBLY (YR. 63-)

4шт.

32

M32994

WASHER, cork (YR. 53-)

4шт.

32a

576422R1

RETAINER, cork (YR. 53-62)

4шт.

32b

576421R1

WASHER, cork (YR. 53-62)

4шт.

33

M32991

SNAP RING (YR. 53-)

4шт.

33a

576420R1

RING

LOCK RING (YR. 53-)

4шт.

34

M32990

SPIDER, w/plug and fitting, assembly

1шт.

34a

576424R2

CENTER CROSS (YR. 53-62)

1шт.

34a

569046R1

CROSS

CENTER CROSS (Order kit assy 569047R91 ref. no. 37A) (YR. 63-)

1шт.

35

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (YR. 53-)

1шт.

35a

109350

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (YR. 53-62)

1шт.

35a

271284

YOKE

lubrication, 90 degree elbow (YR. 63-)

1шт.

36

38941KA

HOUSING AND RATCHET HOLDER, main drive slip clutch, w/bushing, assembly (YR. 53-)

1шт.

37

656226R91

U-JOINT SPIDER

SPIDER, w/bearing, snap ring and washer, assembly (YR. 53-)

1шт.

37a

656225R92

KIT

CENTER CROSS, w/bushing, fitting, retainer, ring and washer, assembly (YR. 53-62)

1шт.

37a

569047R91

REPAIR KIT

CENTER CROSS, w/bushing, fitting and ring assembly (YR. 63-)

1шт.

38

38287K

KNUCKLE, main drive shaft clutch, rear (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, std-hd., dld., 5/16 x 2-1/4"

1шт.

38a

576428R1

KNUCKLE, main drive slip clutch (Plain) (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, std-hd., dld., 5/16 x 2-1/4"

1шт.

39

38592K

KNUCKLE AND SLIP CLUTCH, drive, main, assembly (YR. 54-)

1шт.

39

576860R91

KNUCKLE AND SLIP CLUTCH, drive main, assembly (Consists of ref. nos. 20, 21, 22, 23, 24, 25, 26, 27 and 41) (YR. 53-54)

1шт.

39a

576575R91

SLIP CLUTCH, drive, main, assembly (Consists of ref. nos. 20, 21, 23, 24, 25, 26, 27 and 41A) (YR. 53-)

1шт.

39a

579378R92

KNUCKLE AND SLIP CLUTCH, drive, main, assembly (YR. 54-)

1шт.

40

117977

WOODRUFF KEY

KEY, Woodruff, main drive slip clutch knuckle, rear (B) (YR. 53-)

1шт.

41

38941KA

HOUSING AND RATCHET HOLDER, main drive slip clutch, w/bushing, assembly (YR. 53-)

1шт.

41a

576578R92

HOUSING AND RATCHET HOLDER, main drive slip clutch, w/bushing, assembly (YR. 53-)

1шт.
