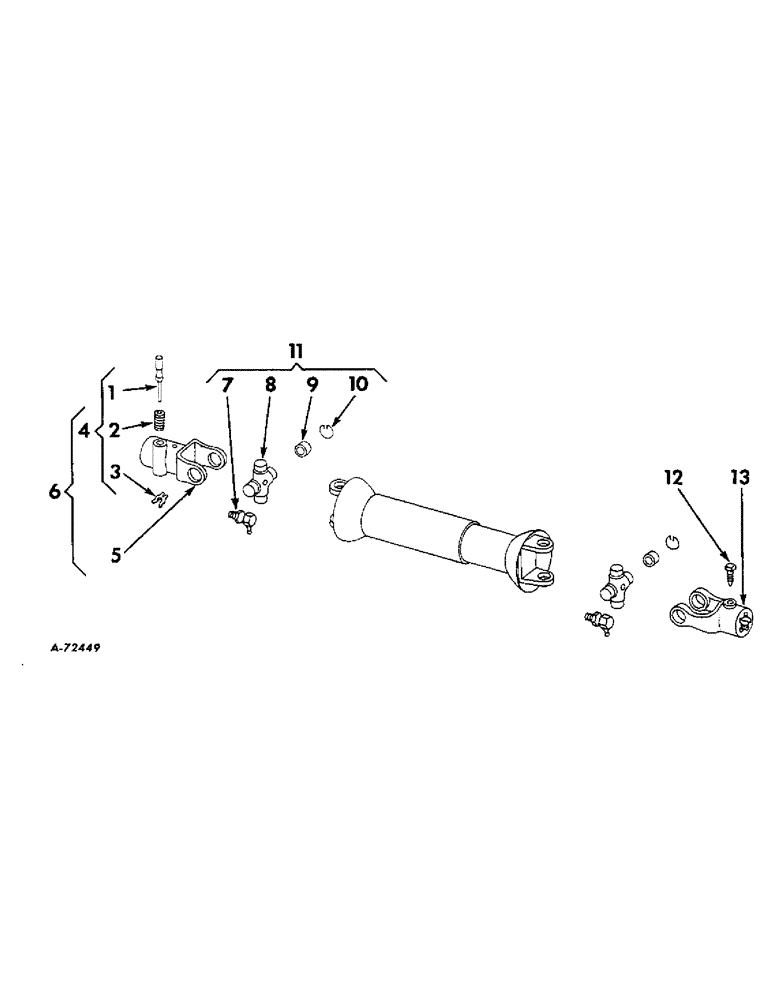

Запчасти Case IH 2-PR (015B) - POWER DRIVE ATTACHMENT, BLOOD BROS. TYPE (31) - IMPLEMENT POWER TAKE OFF

631526R92

KNUCKLE AND SHIELD ASSEMBLY, front power drive (YR. 60-) Consists of all items listed below:

1шт.

1

PIN, locking (Order 455346R21 - ref. no. 4) (YR. 60-)

1шт.

2

455347R1

VALVE SPRING

SPRING (YR. 60-)

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X (YR. 60-)

1шт.

4

455346R21

PIN

KIT ASSEMBLY, locking pin (Includes ref. nos. 1, 2 and 3) (YR. 60-)

1шт.

5

YOKE (Order 568100R92 - ref. no. 6) (YR. 60-)

1шт.

6

568100R92

YOKE

ASSEMBLY, quick-detachable (Includes ref. nos. 4 and 5) (YR. 60-)

1шт.

7

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8" 65 degree lubrication (YR. 60-)

1шт.

8

CROSS, center (Order 569047R91 - ref. no. 11) (YR. 60-)

1шт.

9

569044R91

BEARING ASSY

ASSEMBLY, needle cup (YR. 60-)

4шт.

10

576420R1

RING

LOCK RING (YR. 60-)

4шт.

11

569047R91

REPAIR KIT

KIT ASSEMBLY, center cross and bearing repair (Includes ref. nos. 7, 8, 9 and 10) (YR. 60-)

1шт.

12

38904K

SET SCREW,1/2" - 20 x 1-9/16"

(YR. 60-)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam

1шт.

13

576433R1

FORK

YOKE (YR. 60-)

1шт.

461346R91

BUSHING

BEARING, nylon (Not illustrated) (YR. 60-)

2шт.
