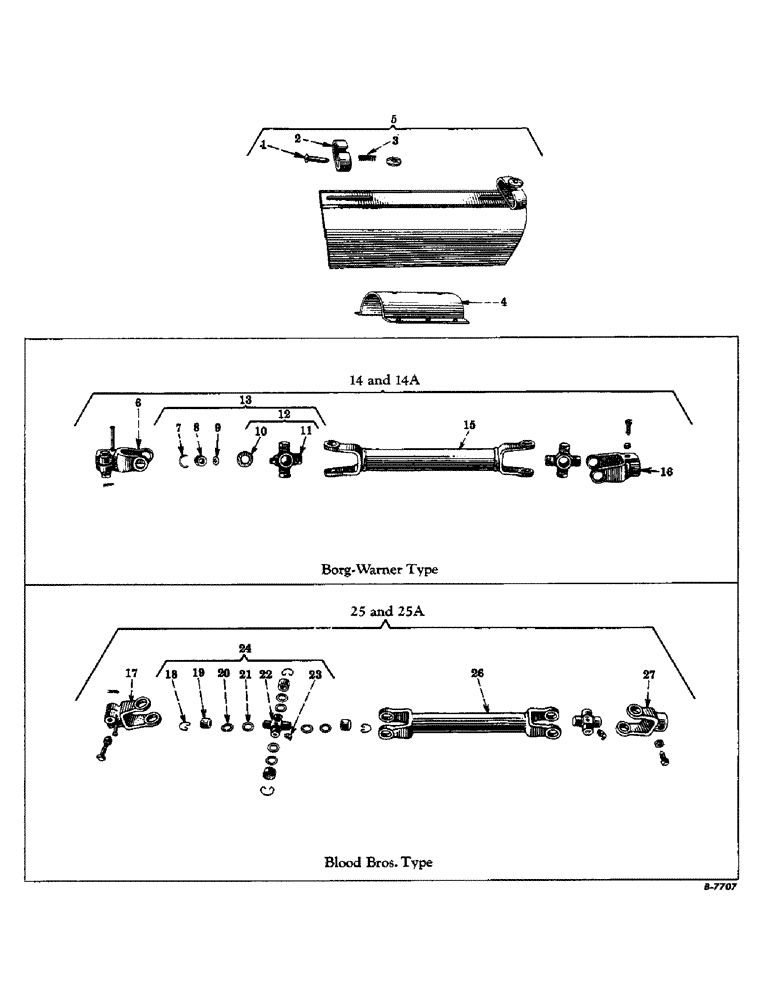

Запчасти Case IH 2-PR (012) - STANDARDIZED POWER DRIVE HITCH, FOR STANDARDIZED TRACTORS ONLY (31) - IMPLEMENT POWER TAKE OFF

1

453149R1

STUD, safety latch spring guide (YR. 53-59)

2шт.

615018R1

WASHER

plain, 5/16" I.D. x 1-5/8" O.D. x no. 14 ga.

2шт.

2

453148R1

LATCH, quick, attaching, telescoping shield (YR. 53-59)

2шт.

3

C33464

SPRING, safety latch (YR. 53-59)

2шт.

4

453970R1

RETAINER, knuckle, non-removable safety shield (For use with 453187R91 - ref. no. 5) (Blood Bros.) (YR. 53-59)

1шт.

4

453189R1

RETAINER, knuckle, non-removable safety shield (For use with 453187R91 - ref. no. 5) (Borg. Warner) (YR. 53-59)

1шт.

13256R1

BOLT

machine, 1/4-20NC x 1-2"

2шт.

110634

NUT, square, 1/4-20NC

2шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

SCREW, machine, slotted-rd-hd., 3/16 x 3/8"

6шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

453187R91

SHIELD, safety, non-removable, assembly (Bolted) (Also order 453189R1 - ref. no. 4) (Includes ref. nos. 1, 2 and 3) (YR. 53-59)

1шт.

6

20441K

KNUCKLE, power take-off, front (For tractors equipped with 1-3/8" spline) (YR. 53-59)

1шт.

6

20448K

KNUCKLE, power take-off, front (For tractors equipped with 1-3/4" spline) (YR. 53-59)

1шт.

6

20444K

KNUCKLE, power take-off, front (For tractors equipped with 1-1/8" spline) (YR. 53-59)

1шт.

13359R1

BOLT, machine, 1/2-13NC x 2-1/4", (For tractors equipped with 1-1/8" or 1-3/8" spline)

1шт.

13378R1

BOLT

machine, 1/2-13NC x 2-1/2" (For tractors equipped with 1-3/4" spline)

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), , For tractors equipped with 1-1/8" spline 3/16" x 2 1/2"

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, std-hd., dld., 5/16 x 2-1/4" (For tractors equipped with 1-3/8" spline)

1шт.

U5357

HEADED PIN,3/8" x 2 5/8"

PIN, std-hd., dld., 3/8 x 2-5/8" (For tractors equipped with 1-3/4" spline)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

20586K

SNAP RING (YR. 53-59)

8шт.

8

20587K

BEARING, assembly (YR. 53-59)

8шт.

9

20582K

WASHER, cork (YR. 53-59)

8шт.

10

20584K

SHIELD, dust (YR. 53-59)

8шт.

11

20580K

SPIDER ASSY.

SPIDERKNUCKLE, center (Less bearing) (YR. 53-59)

2шт.

12

551171R91

SPIDER ASSY.

SPIDER, assembly (Includes ref. nos. 10 and 11) (YR. 53-59)

2шт.

13

656223R91

U-JOINT SPIDER

SPIDER, assembly (Includes ref. nos. 7, 8, 9 and 12) (YR. 53-59)

2шт.

14

453138R91

SHIELD, safety, non-removable, assembly (For tractors equipped with 1-1/8" spline) (Includes ref. nos. 1, 2, 3, 6, 7, 8, 9, 10, 11, 12, 13, 15 and 16) (YR. 53-59)

1шт.

14

453136R91

SHIELD, safety, non-removable, assembly (For tractors equipped with 1-3/8" splined) (Includes ref. nos. 1, 2, 3, 6, 7, 8, 9, 10, 11, 12, 13, 15 and 16) (YR. 53-59)

1шт.

14

453140R91

SHIELD, safety, non-removable, assembly (For tractors equipped with 1-3/4" spline) (Includes ref. nos. 1, 2, 3, 6, 7, 8, 9, 10, 11, 12, 13, 15 and 16) (YR. 53-59)

1шт.

14a

49907K

SHAFT, power take-off, w/knuckles, assembly (For tractors equipped with 1-1/8" spline) (Includes ref. nos. 6, 7, 8, 9, 10, 11, 15 and 16) (YR. 53-59)

1шт.

14a

38236K

SHAFT, power take-off, w/knuckles, assembly (For tractors equipped with 1-3/8" spline) (Includes ref. nos. 6, 7, 8, 9, 10, 11, 15 and 16) (YR. 53-59)

1шт.

14a

49902K

SHAFT, power take-off, w/knuckles, assembly (For tractors equipped with 1-3/4" spline) (Includes ref. nos. 6, 7, 8, 9, 10, 11, 15 and 16) (YR. 53-59)

1шт.

15

38901K

SHAFT, power take-off, w/knuckles (Welded assembly) (YR. 53-59)

1шт.

16

38900K

KNUCKLE, splined, power take-off, rear (YR. 53-59)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, set, sq-hd., 1/2-20NF x 1-3/16"

1шт.

17

576458R1

YOKE, power take-off, front (For tractors equipped with 1-1/8" spline) (YR. 53-59)

1шт.

17

576432R1

KNUCKLE

YOKE, power take-off, front (For tractors equipped with 1-3/8" spline) (YR. 53-59)

1шт.

17

576457R1

YOKE, power take-off, front (For tractors equipped with 1-3/4" spline) (YR. 53-59)

1шт.

13338R1

BOLT, machine, 1/2-13NC x 2" (For tractors equipped with 1-1/8" spline)

1шт.

13339R1

BOLT, machine, 1/2-13NC x 2-3/4" (For tractors equipped with 1-3/8" spline)

1шт.

13378R1

BOLT

machine, 1/2-13NC x 2-1/2" (For tractors equipped with 1-3/4" spline)

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), (For tractors equipped with 1-3/8" and spline) 1/8" x 5/8"

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), , For tractors equipped with 1-3/8" spline 3/16" x 2 1/2"

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, std-hd., dld., 5/16 x 2-1/4" (For tractors equipped with 1-3/8" spline)

1шт.

H7761/4

PIN, std-hd., dld., 3/8 x 2-1/2" (For tractors equipped with 1-3/4" spline)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

18

576420R1

RING

SNAP RING (YR. 53-59)

8шт.

19

576423R1

BUSHING, center cross (YR. 53-59)

8шт.

20

576421R1

WASHER, cork (YR. 53-59)

8шт.

21

576422R1

WASHER, cork retainer (Steel) (YR. 53-59)

8шт.

22

576424R2

CROSS, center (Less bearings) (YR. 53-59)

2шт.

23

109350

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (YR. 53-59)

2шт.

24

656225R92

KIT

CROSS AND BEARING, assembly (Consists of ref. nos. 22, 23, 24, 25, 26 and 27) (Includes ref. nos. 19, 20, 21, 22, 23 and 24) (YR. 53-59)

2шт.

25

453139R92

SHIELD, safety, non-removable, assembly (For tractors equipped with 1-1/8" spline) (Includes ref. nos. 18, 19, 20, 21, 22, 23, 24, 27 and 28) (YR. 53-59)

1шт.

25

453137R92

SHIELD, safety, non-removable, assembly (For tractors equipped with 1-3/8" spline) (Includes ref. nos. 18, 19, 20, 21, 22, 23, 24, 27 and 28) (YR. 53-59)

1шт.

25

453141R92

SHIELD, safety, non-removable, assembly (For tractors equipped with 1-3/4" spline) (Includes ref. nos. 18, 19, 20, 21, 22, 23, 24, 27 and 28) (YR. 53-59)

1шт.

25a

576460R91

SHAFT, power take-off, w/knuckles, assembly (For tractors equipped with 1-1/8" spline) (YR. 53-59)

1шт.

25a

576459R91

SHAFT, power take-off, w/knuckles, assembly (For tractors equipped with 1-3/8" spline) (YR. 53-59)

1шт.

25a

576461R91

SHAFT, power take-off, w/knuckles, assembly (For tractors equipped with 1-3/4" spline) (YR. 53-59)

1шт.

26

576431R91

YOKES AND TUBING, power take-off shaft (Center section) (Welded assembly) (YR. 53-59)

1шт.

27

576433R1

FORK

YOKE, power take-off shaft, rear (YR. 53-59)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, set, sq-hd., cup-pt., 1/2-20NF x 1-3/16"

1шт.
