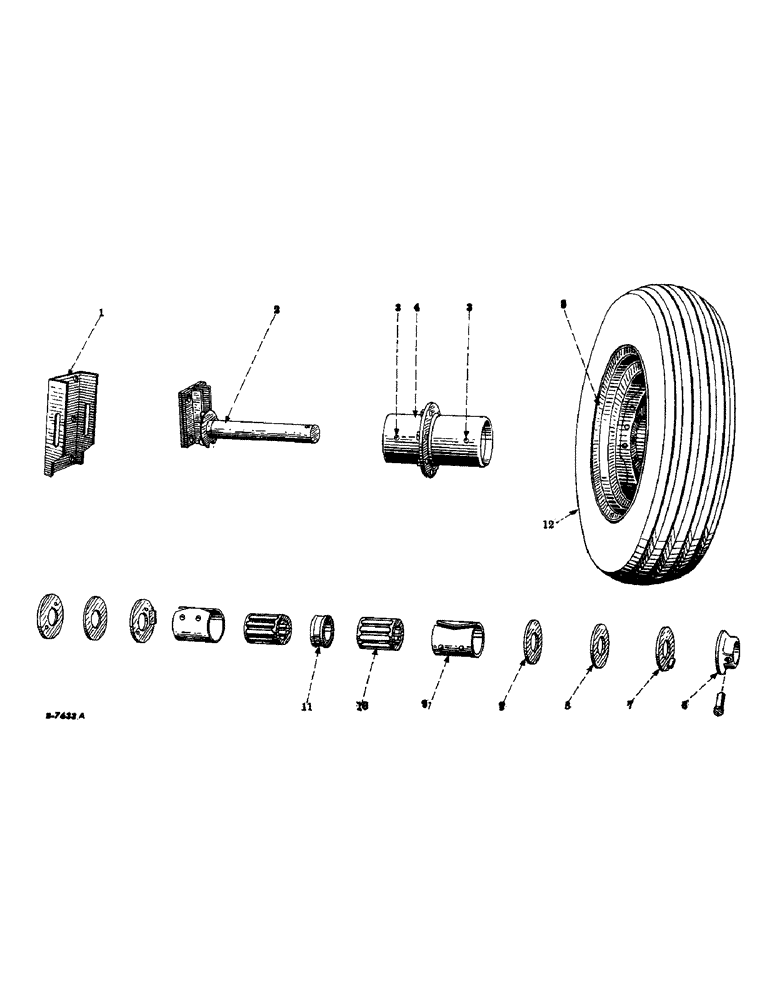

Запчасти Case IH 2-PR (031) - MAIN WHEEL AND AXLE, 1953 THROUGH 1962 (25) - FRONT AXLE SYSTEM

1

UB18314

EXTENSION, main axle bracket (YR. 53-62)

1шт.

2

U15833

AXLE, main, w/angle, flange and plate (Welded assembly) (YR. 53-62)

2шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-62)

4шт.

4

U1987

HUB, main wheel (YR. 53-62)

2шт.

103027

NUT, hex., 7/16-20NF

16шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4"

16шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

5

16632W

DISC, wheel, w/rim (Riveted assembly) (For 7.50 - 16" pneumatic tire wheels) (YR. 53-62)

2шт.

6

U1861

COLLAR, main wheel hub (YR. 53-62)

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

PO15292

PIN, std-hd., dld., 1/2 x 1-3/4"

2шт.

7

U15867

WASHER, thrust, main wheel, w/stop (Welded assembly) (YR. 53-62)

8шт.

8

U14810

WASHER, main wheel (1-29/32" I.D. x 4-1/16" O.D. x no. 18 ga.) (YR. 53-62)

10шт.

9

U13365

SLEEVE, main wheel hub (YR. 53-62)

4шт.

10

K14111

BEARING, roller, main wheel hub (Implement type) (YR. 53-62)

4шт.

11

U1662

SPACER, main wheel hub (YR. 53-62)

2шт.

12

TIRE, pneumatic (7.50 - 16") (YR. 53-62)

2шт.

12

TUBE, pnuematic (7.50 - 16") (YR. 53-62)

2шт.
