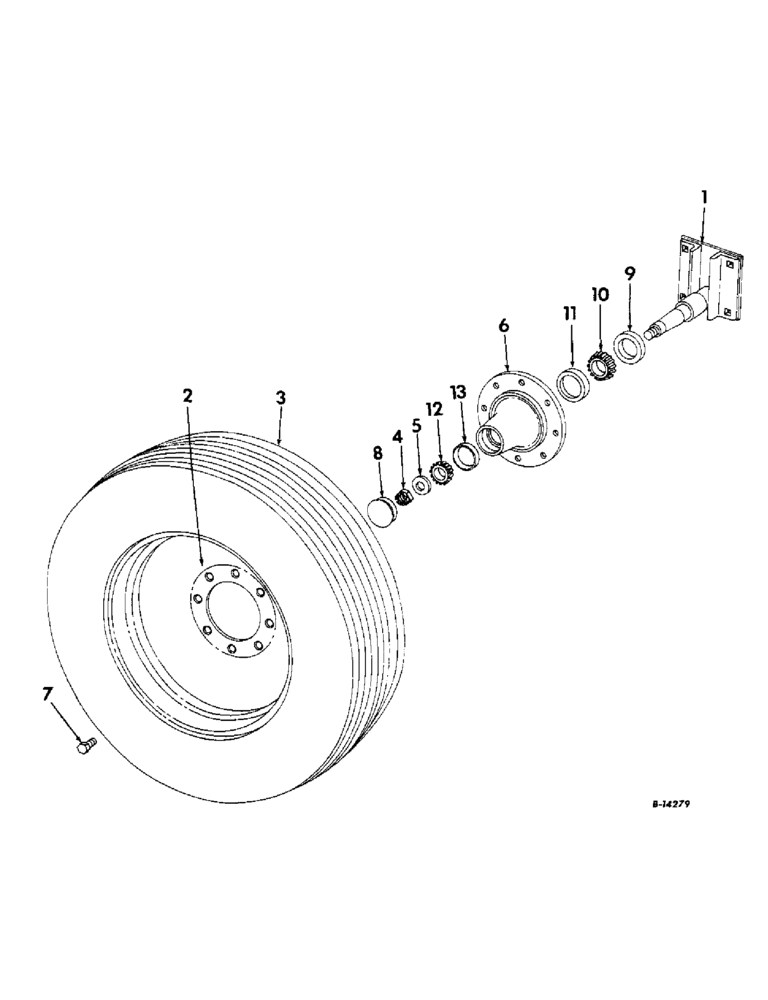

Запчасти Case IH 2-PR (030B) - MAIN WHEEL AND AXLE, 1963 AND ABOVE (25) - FRONT AXLE SYSTEM

1

936225R91

SPINDLE ASSY, main axle (YR. 63-)

2шт.

.

1/8 X 1-1/2" COT. PIN (YR. 63-)

2шт.

2

617623R91

DISC AND RIM ASSY (Regular) (7.50 x 24") (YR. 63-)

2шт.

2

618982R91

WHEEL

DISC AND RIM ASSY (Special) (7.50 x 20") (YR. 63-)

2шт.

3

TIRE, main wheel (Regular) (7.50 x 24", 4 ply code 1-1) (YR. 63-)

2шт.

3

TIRE, main wheel (Special) (7.50 x 20", 4 ply code 1-1) (YR. 63-)

2шт.

3

TIRE, main wheel (Regular) (7.50 x 24") (YR. 63-)

2шт.

3

TIRE, main wheel (Special) (7.50 x 20) (YR. 63-)

2шт.

4

612634R1

NUT

main axle spindle (YR. 63-)

2шт.

5

612889R1

WASHER

main axle spindle (YR. 63-)

2шт.

6

612739R1

HUB, main wheel (YR. 63-)

2шт.

7

617918R1

BOLT,9/16" - 18 x 1 15/32"

main wheel hub (YR. 63-)

16шт.

8

612884R1

HUB CAP

CAP, main wheel hub (YR. 63-)

2шт.

9

459919R91

SEAL

main wheel hub oil (YR. 63-)

2шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING, main wheel hub inner tapered (YR. 63-)

2шт.

11

663558R1

BEARING CUP

CUP, main wheel hub inner tapered (YR. 63-)

2шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, main wheel hub outer tapered (YR. 63-)

2шт.

13

651817R1

BEARING CUP

CUP, main wheel hub outer tapered (YR. 63-)

2шт.

13

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.
