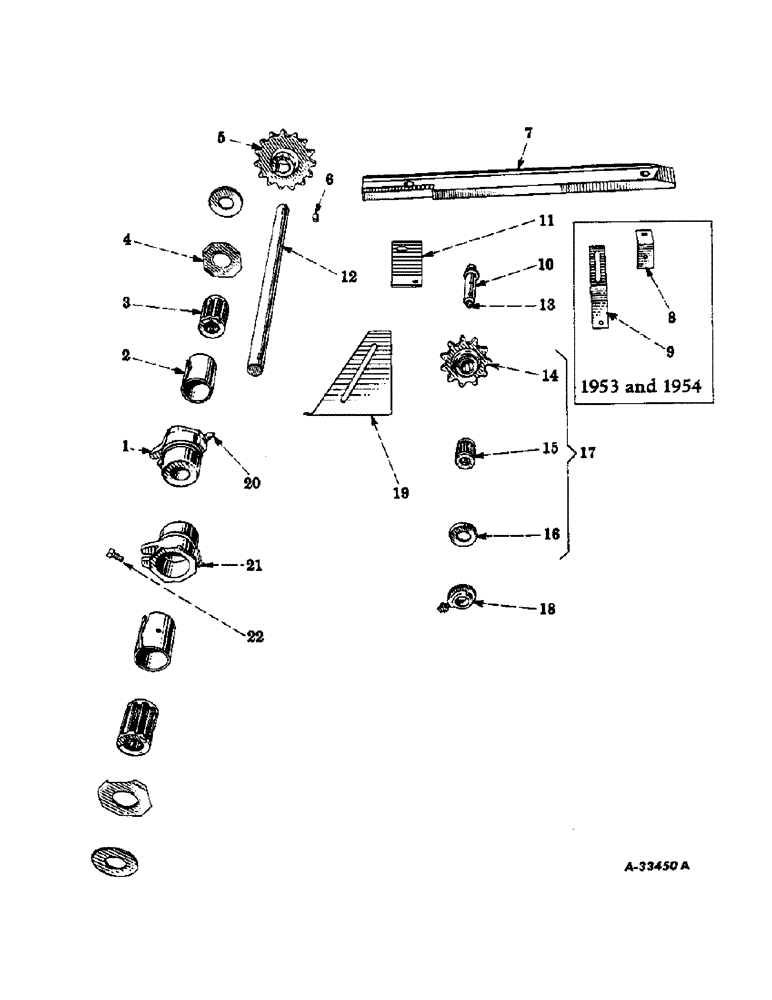

Запчасти Case IH 2-PR (041) - MAIN DRIVE (14) - MAIN GEARBOX & DRIVE

1

UA1845

BOX, bearing, main drive shaft (YR. 53-)

2шт.

2

B12273B

RACE, main drive shaft bearing box (YR. 53-)

2шт.

3

ST127

BEARING, roller, main drive shaft bearing box (Implement type) (YR. 53-)

2шт.

4

U15773

WASHER, thrust, main drive shaft bearing box (YR. 53-)

2шт.

5

580023R91

SPROCKET, drive, main, w/hub (Welded assembly) (17-T) (High-speed)

1шт.

5

578843R91

SPROCKET, drive, main, w/hub (Welded assembly) (15-teeth) (Regular) (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, std-hd., dld., 5/16 x 2-1/4"

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, Woodruff, main drive sprocket (No. 15) (YR. 53-)

1шт.

7

UA16486

GUIDE, main drive chain (YR. 53-)

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, carriage, 3/8-16NC x 1-1/4"

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

578961R1

CLIP, main drive chain guide (YR. 53-)

1шт.

9

578960R1

BRACKET, main drive chain guide, lower (YR. 53-)

1шт.

10

MA23534

STUD, tightening, main drive chain (YR. 53-)

1шт.

114774

NUT, hex., 1/2-13NC

4шт.

76730H

WASHER

plain, 17/32" I.D. x 1-1/2" O.D. x no. 11 ga.

1шт.

VC649

WASHER

plain, 29/32" I.D. x 1-3/4" O.D. x no. 16 ga.

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

578959R1

BRACKET, main drive chain guide, lower (YR. 53-)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

578882R1

SHAFT, drive, main (YR. 53-)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, std-hd., dld., 5/16 x 2-1/4"

1шт.

M73208

WASHER, plain, 1-5/32" I.D. x 2-3/4" O.D. x no. 20 ga.

5шт.

U11789

WASHER, plain, 1-5/32" I.D. x 2-3/4" O.D. x no. 16 ga.

4шт.

579369R1

WASHER, plain, 1-5/32" I.D. x 2-3/4" O.D. x no. 3/16"

1шт.

579370R1

WASHER, plain, 1-5/32" I.D. x 3-1/4" O.D. x no. 16 ga.

2шт.

579371R1

WASHER, plain, 1-5/32" I.D. x 3-1/4" O.D. x no. 22 ga.

2шт.

13

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

1шт.

14

M3976

SPROCKET, tightening, main drive chain (11-teeth) (Order MX3976, ref. no. 17) (YR. 53-)

1шт.

15

ST1300

BEARING

roller, main drive chain tightener sprocket (YR. 53-)

1шт.

16

M23538

WASHER

retaining, grease, main drive chain tightener sprocket (YR. 53-)

1шт.

17

MX3976

SPROCKET, tightening, main drive chain, w/bearing and washer assembly (YR. 53-)

1шт.

18

MA3454

COLLAR, main drive chain tightener stud (YR. 53-)

1шт.

102894

SET SCREW

set, sq-hd., cup-pt., 3/8-16NC x 3/4"

1шт.

19

578897R1

BRACKET, tightening, main drive chain (YR. 53-)

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (YR. 53-)

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (YR. 53-)

1шт.

22

M23814

STOP

main drive shaft bearing box (YR. 54-)

2шт.

13269R1

BOLT, machine, 5/16-18NC

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q399

WASHER

plain, 11/32" I.D. x 1" O.D. x no. 16 ga.

2шт.
